Voltage Regulator Stabilizer

The operating principle of voltage regulator stabilizer can be based on a variety of techniques and designs, including but not limited to the following:

Simple voltage regulator circuits: realized by series connection of a resistor and a diode. Due to the logarithmic voltage-current curve of the diode, the voltage across the diode will only change slightly as the input current changes. This circuit is suitable for applications that do not require high voltage accuracy and efficiency.

Negative feedback control loop: By comparing the actual voltage with a fixed reference voltage, the error value is amplified and sent to the voltage regulator, and the output is adjusted to make the error value smaller. This forms a negative feedback control loop and improves the accuracy of voltage control.

Electromechanical mechanism: The sensing signal is used to generate an electromagnet for voltage stabilization. When the voltage rises, the current increases, the electromagnet attracts the iron core, and the mechanical switch connected to the iron core breaks, causing the voltage to fall; and vice versa.

Function:

The voltage regulator stabilizer is a continuously adjustable autotransformer with a turns ratio. When the voltage regulator brush slides along the polished surface of the coil by means of the hand wheel main shaft and the brush holder, the turns ratio can be continuously changed. Thereby the output voltage is smoothly adjusted from zero to the previous high.

Adaptation:

The series regulators are characterized by non-distortion waveform, small size, light weight, high efficiency, convenient use, reliable performance and long-term operation. They are used for voltage regulation, temperature control, dimming, power control, etc. , metallurgical instrumentation, electromechanical manufacturing, light industry, scientific experiments, utilities, household appliances, temperature control, dimming, and power control, etc., is an ideal AC voltage regulator.

1.Ambient temperature: maximum temperature + 40 ºC, minimum temperature -15 ºC

2.Altitude: The altitude where the regulator is installed does not exceed 1000 meters

3.Relative air humidity: The monthly average relative humidity of a wet month is 90%, and the average temperature of the month is 25 ºC Power supply voltage waveform:

4.The power supply voltage waveform is a sine wave or similar to a sine wave The installation site is free from gases, vapors, chemical deposits, dust, dirt and other explosive and aggressive media that seriously affect the insulation of the regulator.

5.The installation place should be free of severe vibrations and bumps.

6.Indoor use.

Note! -Selection:Tips This regulator product cannot be used in parallel.

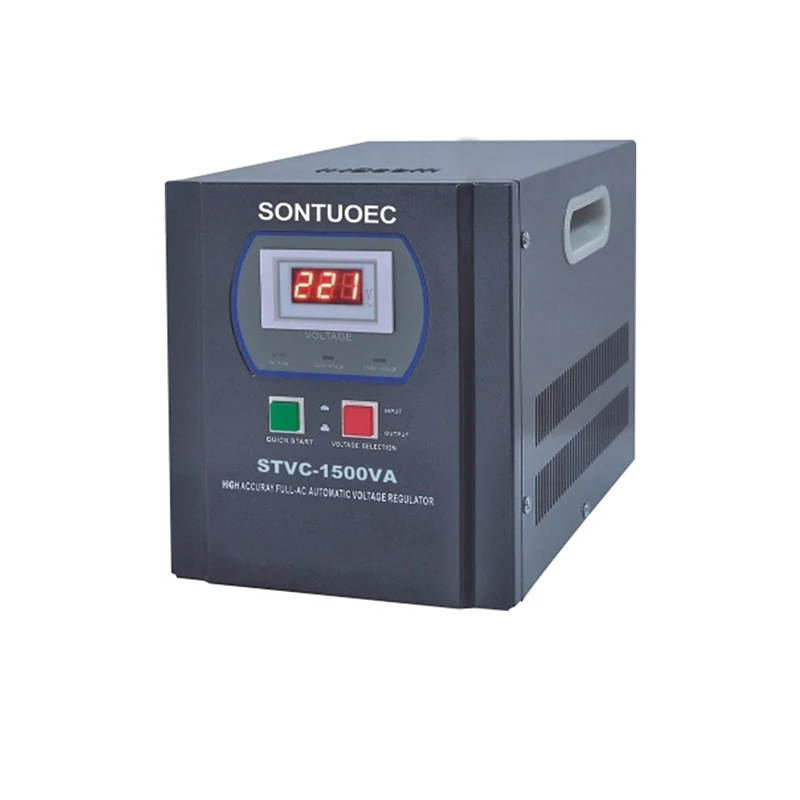

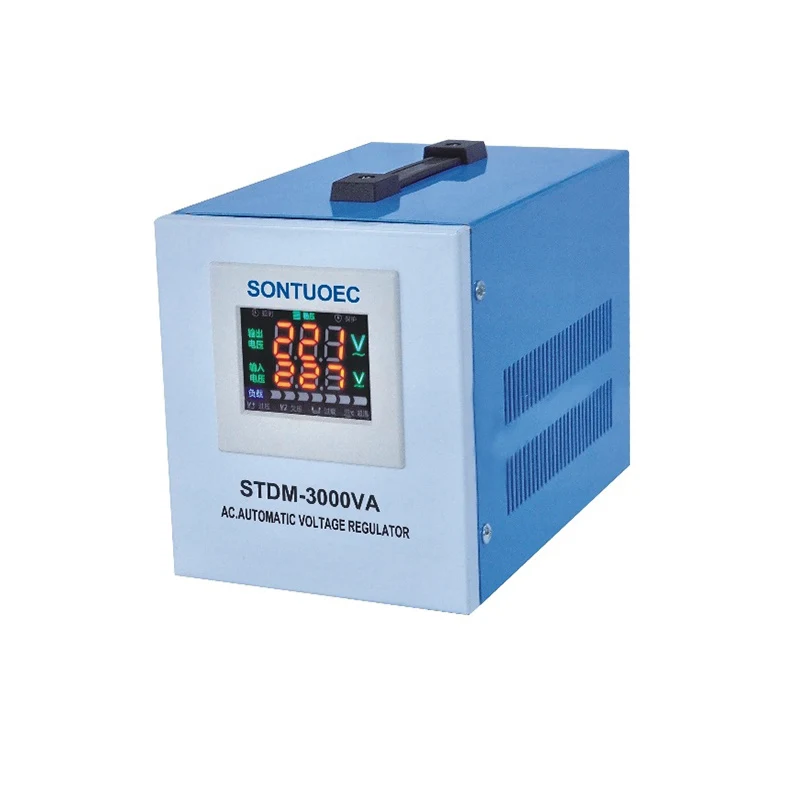

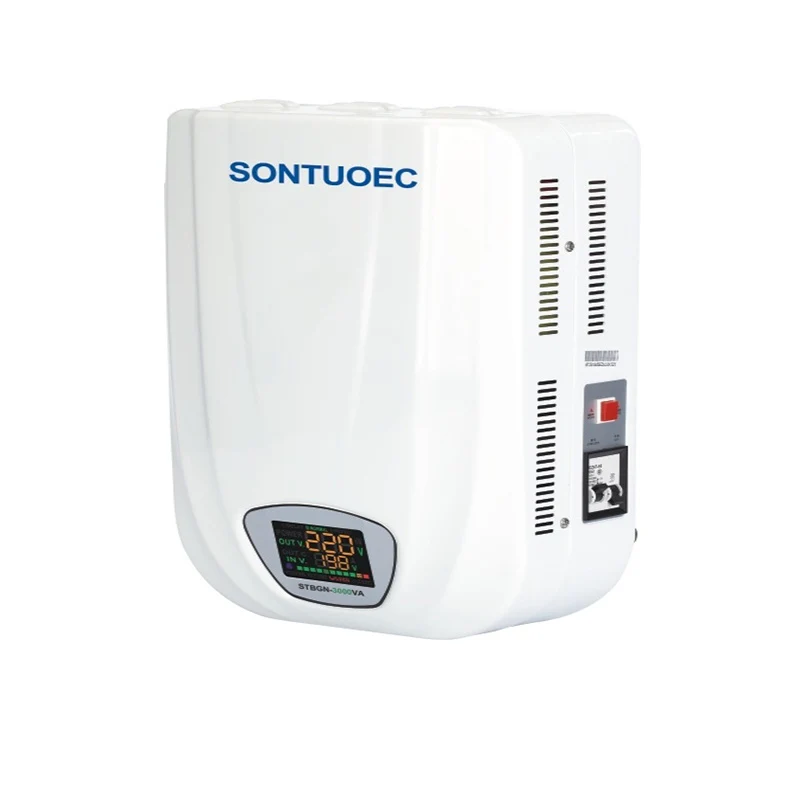

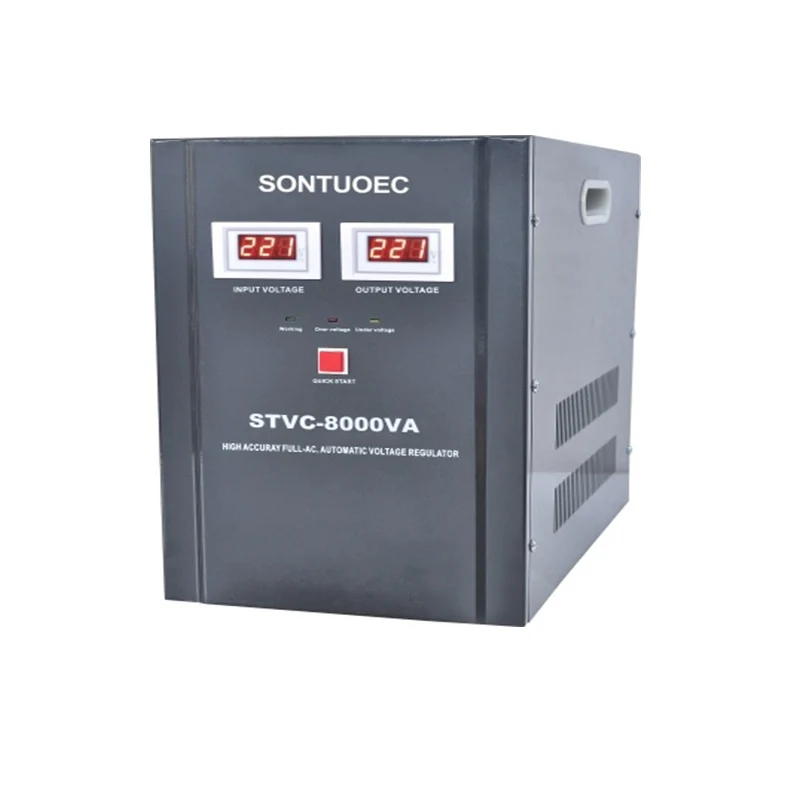

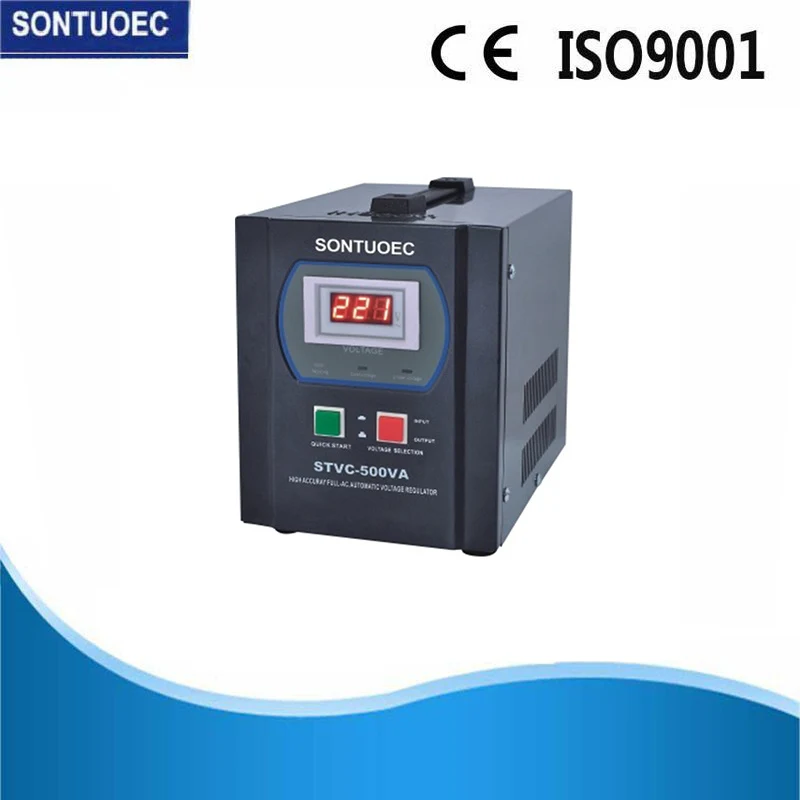

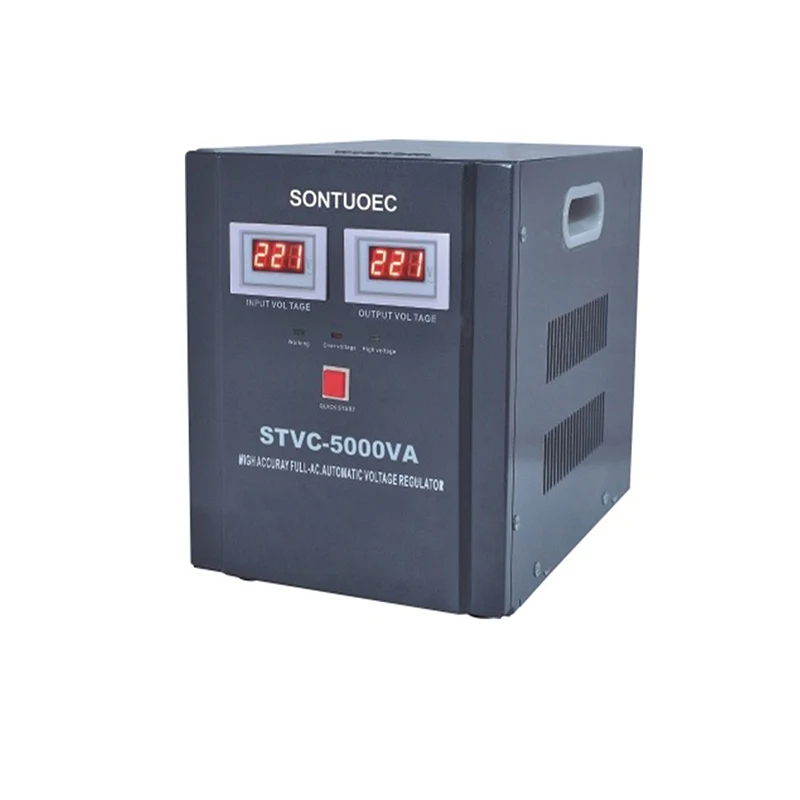

One series: from: 500VA to 10000VA series ; Single Phase

Competitive points:

1. Volume is smaller than traditional device; Easy to move and install with 4 wheel.

2. With Phase-sequence protection in order to avoid connecting wire wrong;

3. With more fans ,Heat transfer performance is more better , Temperature rise is lowest ;:load capacity is higher and steady;

4. Coil installation construction is more reasonable.

5. Intelligent  seperated-adjustable voltage vegulator
