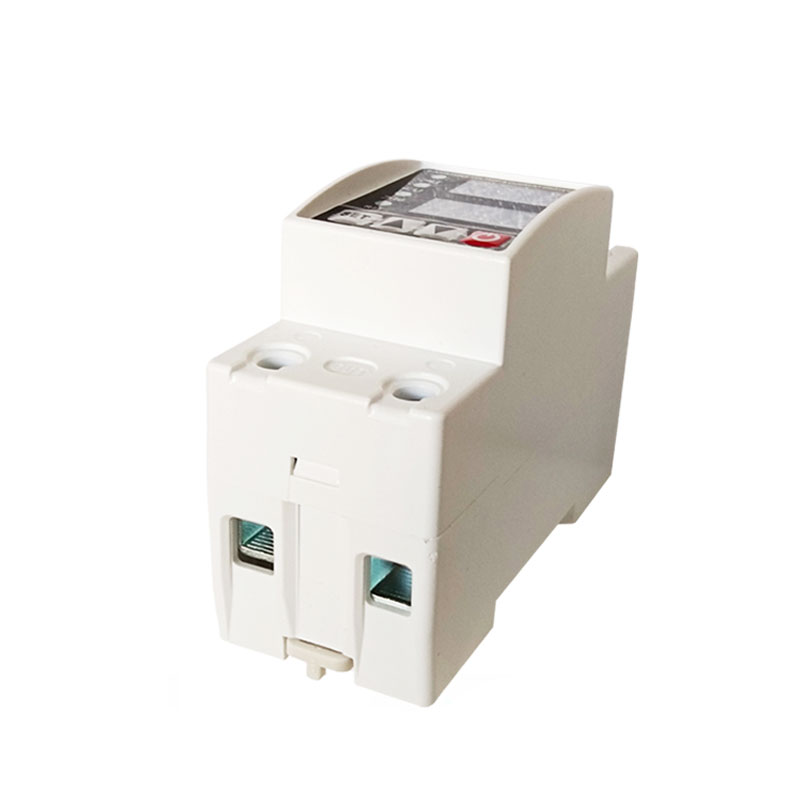

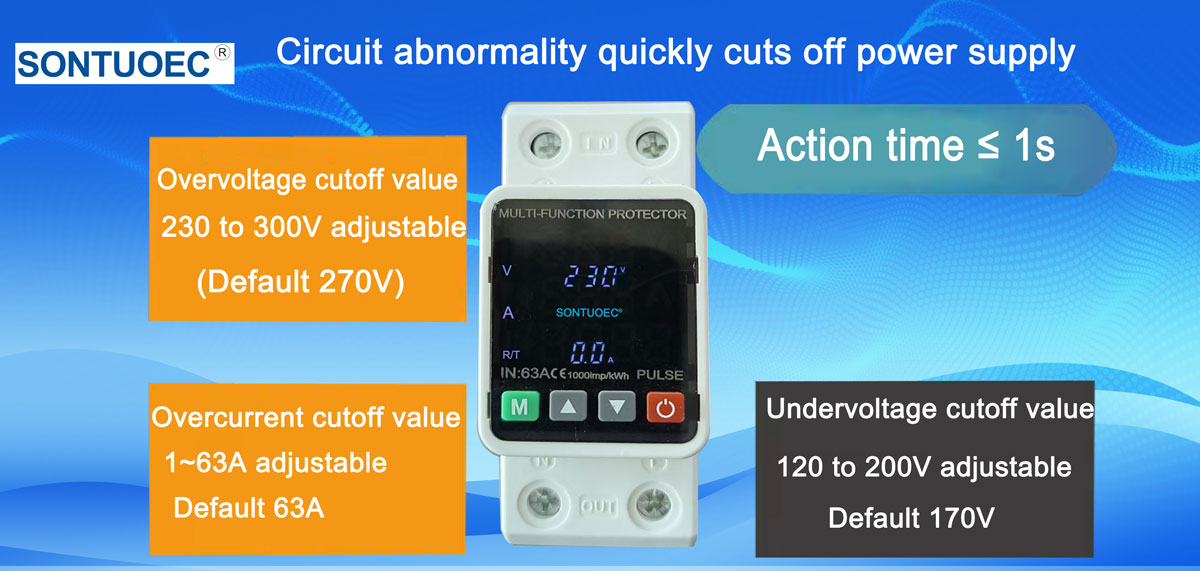

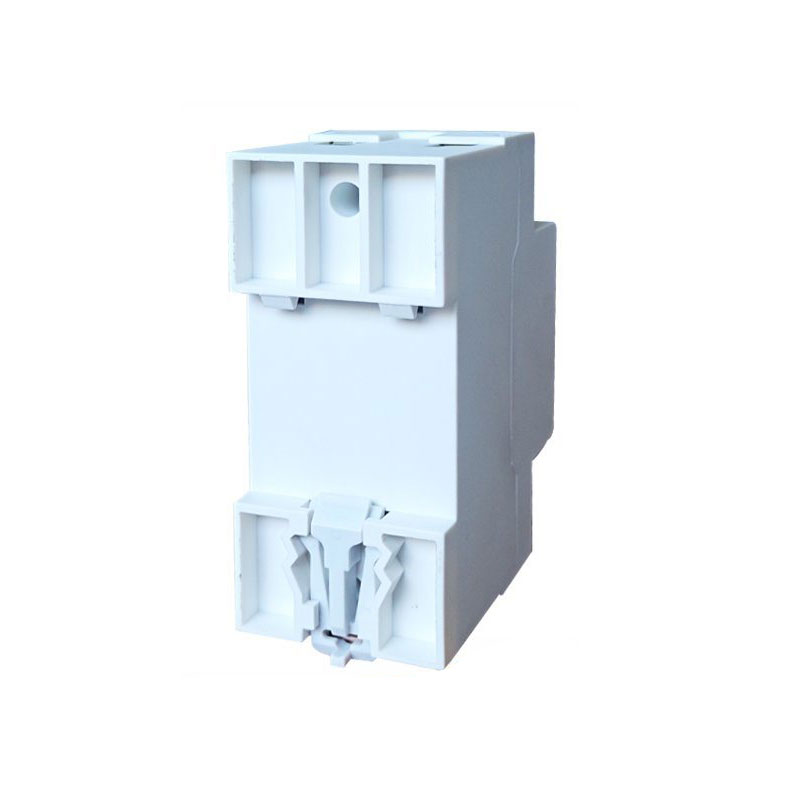

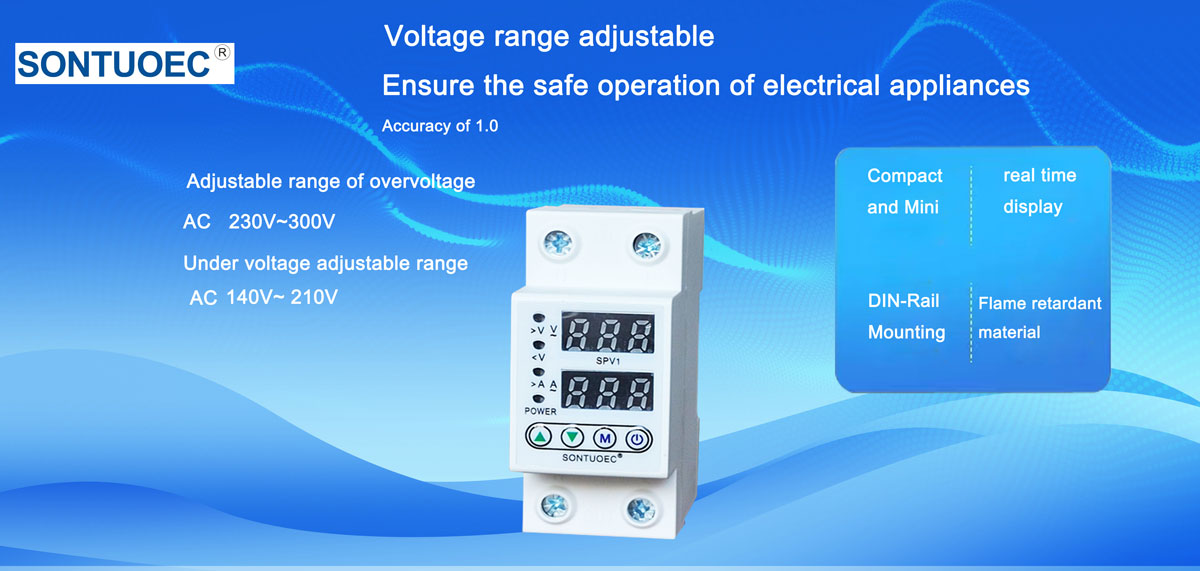

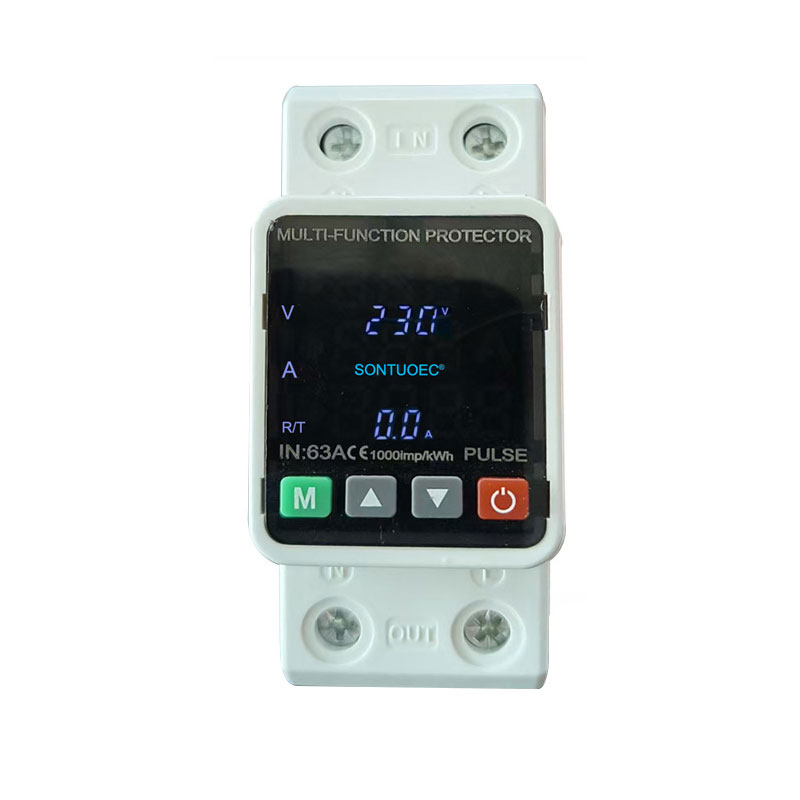

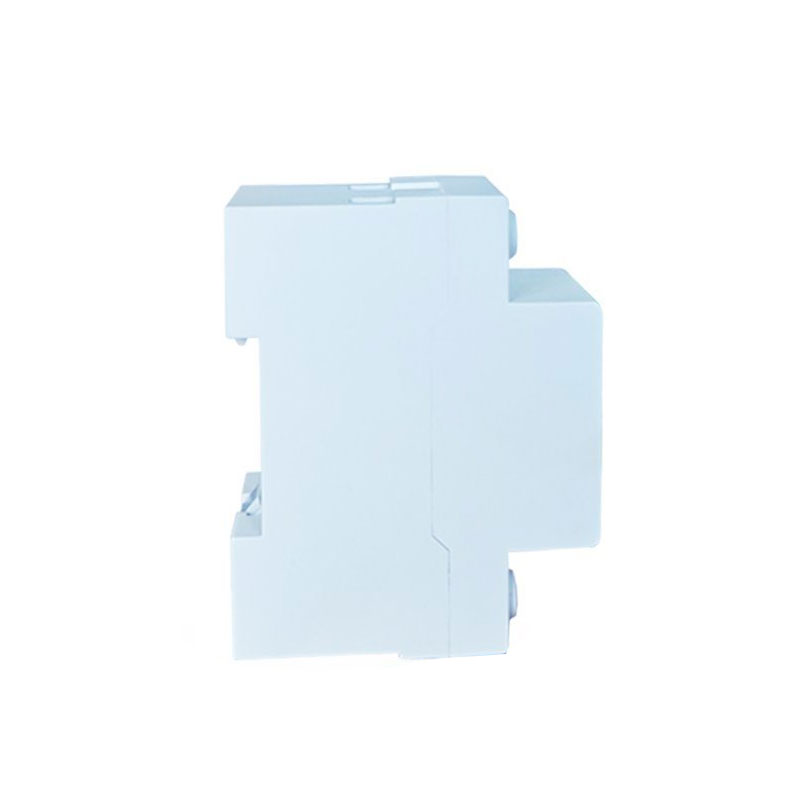

Digital tube display Overvoltage and Undervoltage Voltage Protector

SONTUOEC is one of the Chinese suppliers/manufacturers specializing in the production of various small electrical appliances The automatic recovery over voltage and under voltage protective device complies with modular design standards. the circuit boards of products adopt good quality electronic components with reliable performance. when the power situation is unstable. It's protection function will be automatically activated. once the voltage exceeds the limited range of products, It has the function of current limited protection ; it will automatically cut off so as to protect the safely of electrical equipment and persons.

Model:STVP-63

Send Inquiry

Product Description

specifications:

Work voltage	110-300V AC	Operating frequency	50Hz-60Hz
Current	1-63A	Warranty lamp	18months
Delay time	10S adju	USE FOR	Limiting current

Parameter	Value
Power On Time	1-500S
Over Voltage	390-500V
Under Voltage	140-370V
Recovery Time	1-500S
Power Off delay Time	0.1-30S
Under Voltage	140-210V
Recovery Voltage	145-215V
Power Off delay Time	0.1-30S
Voltage Deviation	_9.5 to 9.5%
Asymmetry	20-99V
Phase squence protect	on/off
Over Current	1-63A
Recovery Time	1-500S
Power Off delay Time	0.1-30S
Current Deviation	_9.5 to 9.5%
Continues Over Current Times	1-20 off
