SONTUOEC high quality automatic voltage regulator stabilizer is a kind of intelligent power management device, whose core function is to automatically monitor the changes of input voltage and make quick adjustments through internal circuits or mechanisms to ensure that the output voltage is maintained within a preset stable range. This device has a wide range of applications in power systems, especially in environments with large voltage fluctuations, such as remote areas, industrial production lines, and data centers.
Specification: |
500VA; 1000VA;1500VA;2000VA;5000VA; 6000VA;8000VA;10000VA |
Power Factor |
0.6-1.0 |
Input |
|
Operating Voltage Range |
95~285V OR 70~285V |
Regulation Voltage Range |
110~275V Or 80-260V Or 140-260V |
Frequency |
50HZ |
Connection Type |
Input terminal block |
Output |
|
Operating Voltage |
180~255V |
High Cut Voltage |
255V |
Low Cut Voltage |
180V |
Safety Cycle |
8 Seconds / 180 Seconds (Optional) |
Frequency |
50HZ |
Connection Type |
Output terminal block |
Regulation |
|
Regulation % |
8% |
Number of Taps |
7 |
Transformer Type |
Toroidal auto transformer |
Regulation Type |
Relay type |
Indicators |
|
LCD/Color LED Display |
Input voltage Output voltage Delay time Load usage Normal working Temperature of transformer Error code |
Protection |
|
Over Temperature |
Auto Shutdown at 120 ºC |
Short Circuit |
Auto Shutdown |
Overload |
Auto Shutdown |
Over / Under Voltage |
Auto Shutdown |
The operating principle of automatic voltage regulator stabilizer is based on the principle of feedback control. It usually consists of a voltage sensor, a controller and an actuator. The voltage sensor is used to monitor changes in the input voltage in real time and to convert these changes into electrical signals for transmission to the controller. The controller processes these signals, calculates the voltage value to be adjusted, and adjusts the output voltage through the actuator (e.g., relay, transistor, etc.) to keep it stable.
Automatic adjustment: The automatic voltage adjustment stabilizer can monitor and adjust the output voltage automatically in real time without manual intervention.
High precision: through advanced control algorithm and precise circuit design, the automatic voltage regulation stabilizer can realize high precision voltage regulation.
Fast Response: When the voltage fluctuates, the automatic voltage regulation stabilizer can quickly respond and adjust the output voltage to ensure the stable operation of the equipment.
Wide input range: automatic voltage regulation stabilizers usually have a wide input voltage range, which can adapt to the voltage fluctuation in different areas.
Protection function: some advanced automatic voltage regulation stabilizers also have over-voltage, under-voltage, overload and other protection functions, which can protect the equipment from damage under abnormal conditions.
The series regulators are characterized by non-distortion waveform, small size, light weight, high efficiency, convenient use, reliable performance and long-term operation. They are used for voltage regulation, temperature control, dimming, power control, etc. , metallurgical instrumentation, electromechanical manufacturing, light industry, scientific experiments, utilities, household appliances, temperature control, dimming, and power control, etc., is an ideal AC voltage regulator.
1.Ambient temperature: maximum temperature + 40 ºC, minimum temperature -15 ºC
2.Altitude: The altitude where the regulator is installed does not exceed 1000 meters
3.Relative air humidity: The monthly average relative humidity of a wet month is 90%, and the average temperature of the month is 25 ºC Power supply voltage waveform:
4.The power supply voltage waveform is a sine wave or similar to a sine wave The installation site is free from gases, vapors, chemical deposits, dust, dirt and other explosive and aggressive media that seriously affect the insulation of the regulator.
5.The installation place should be free of severe vibrations and bumps.

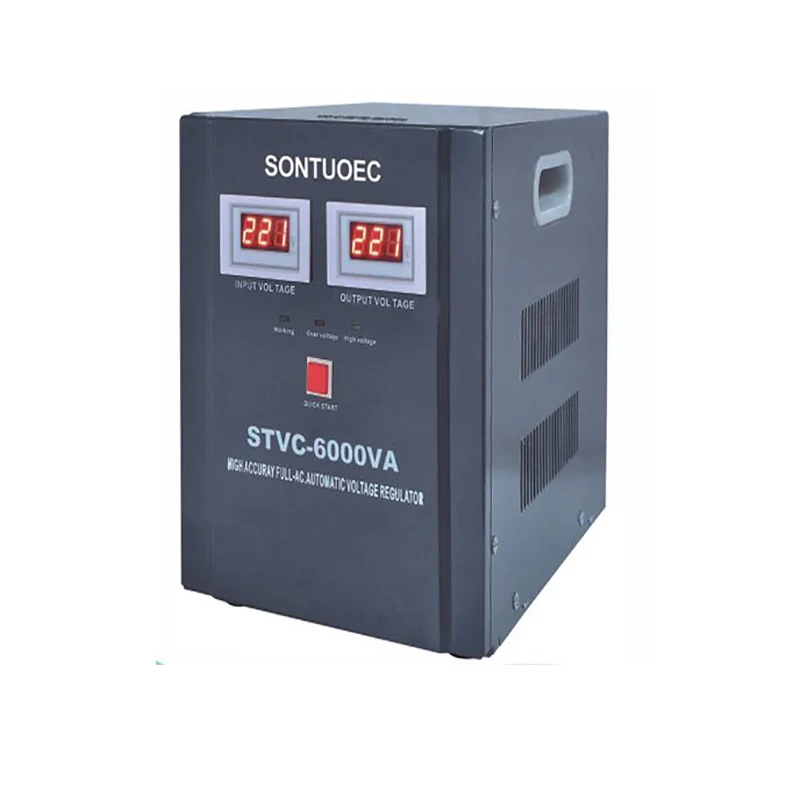

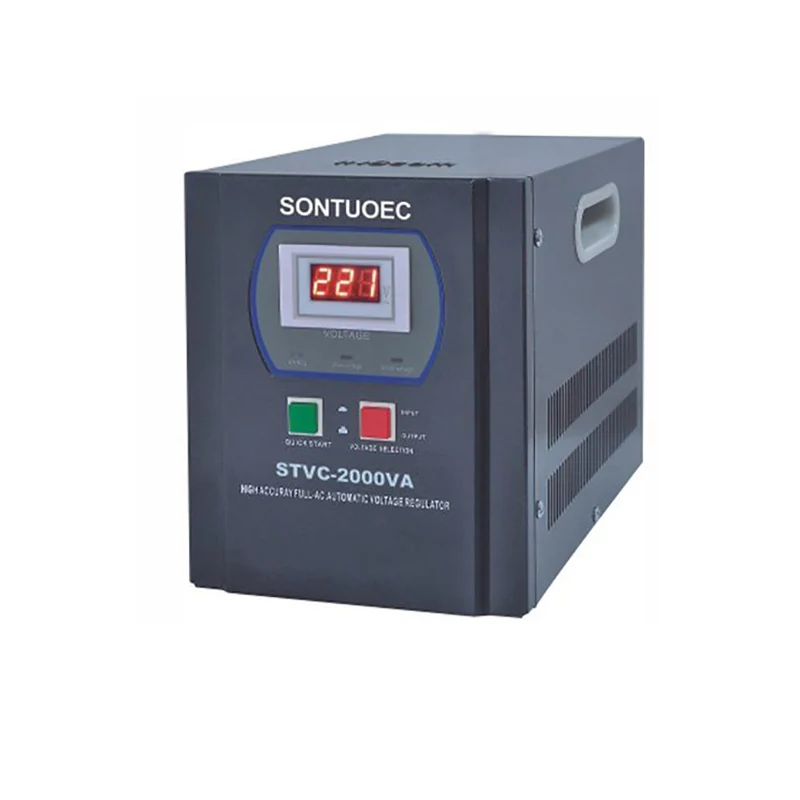

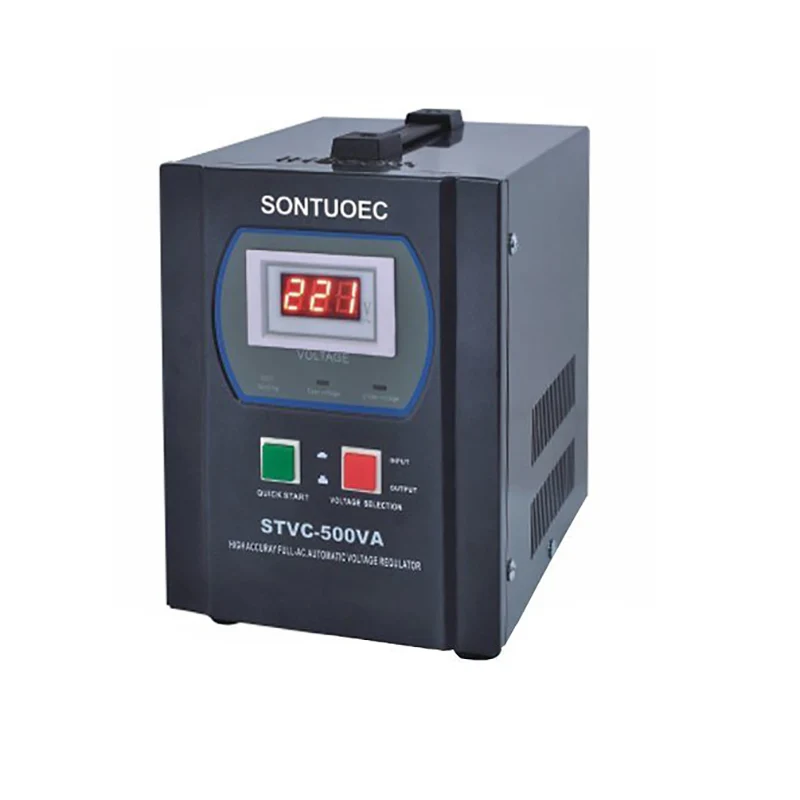

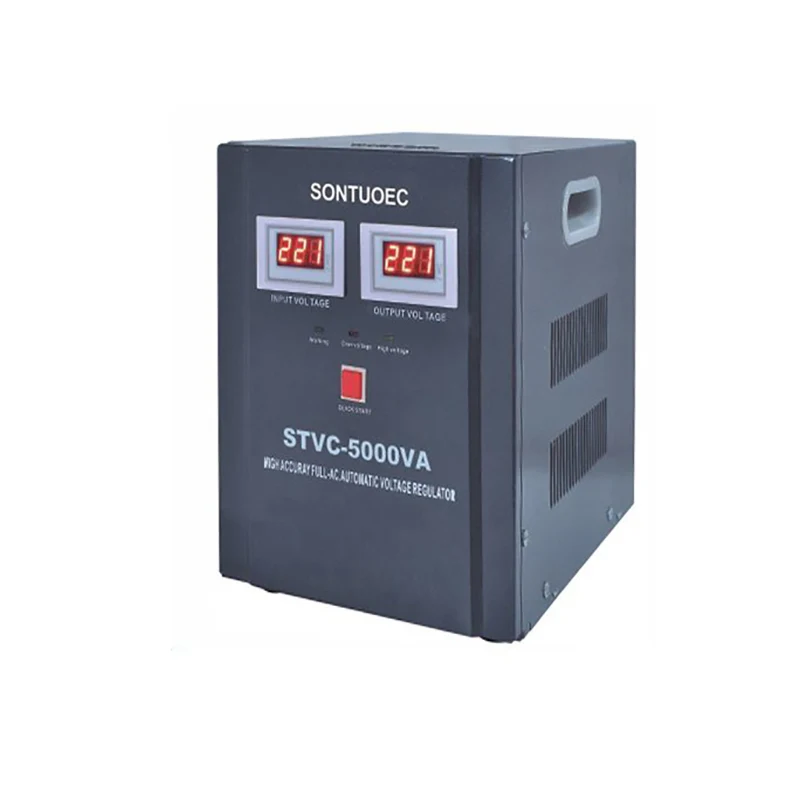

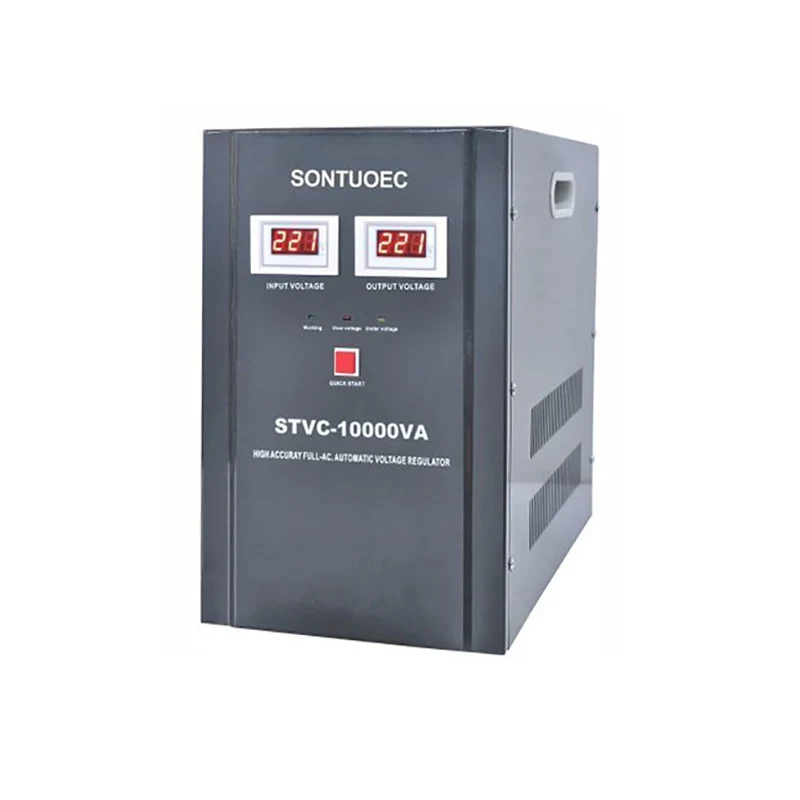

One series: from: 500VA to 10000VA series ; Single Phase ; 15000VA to 50000VA Three Phase
