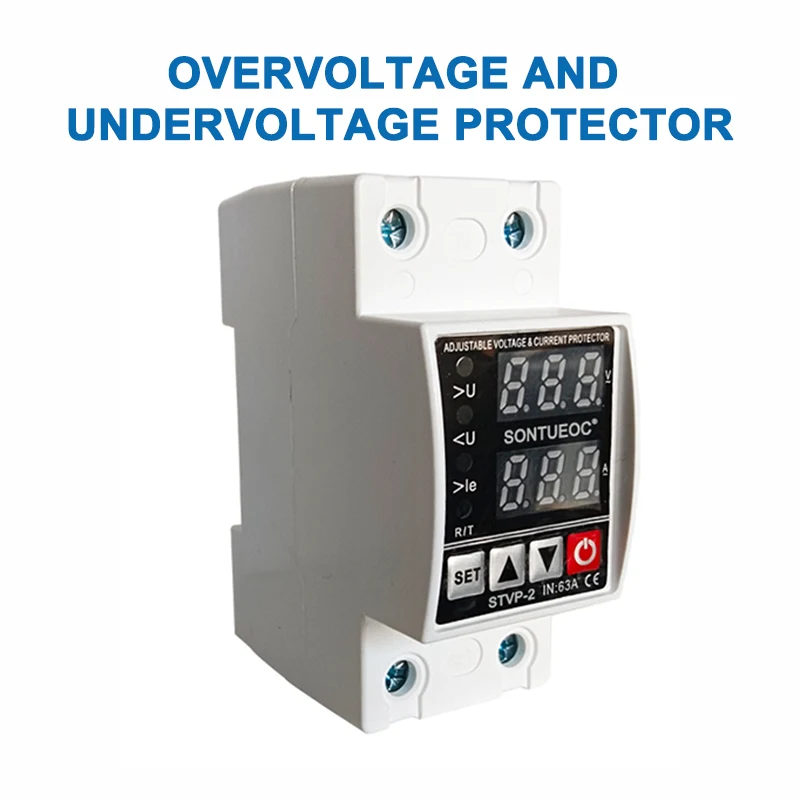

Overvoltage and Undervoltage Protectors

Overvoltage and Undervoltage Protectors are a protective device used to prevent the voltage in a circuit from exceeding a set value and damaging equipment. An undervoltage protector is a protective device used to prevent the voltage in a circuit from being too low and damaging the equipment or causing it to fail to function properly.

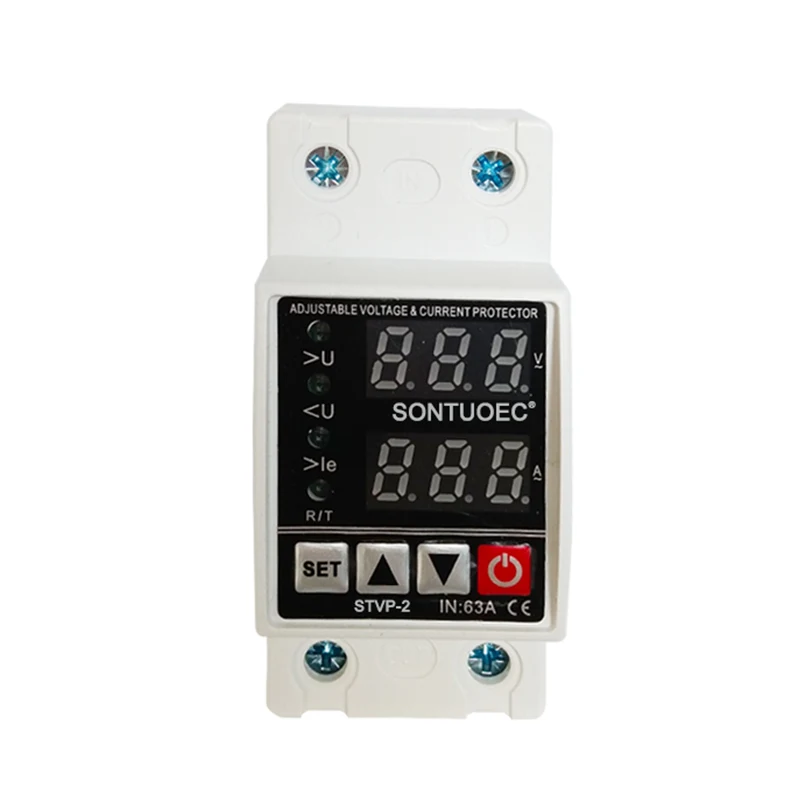

Model:STVP-2

Send Inquiry

Product Description

Product Parameters:

Model number	STVP-2
Power supply	230VAC 50/60Hz
Max.Loading power	1~63A Adjustable(default:63A)
Over-voltage protection value range	230V~300~OFF(default:270V)
Over-voltage recovery voltage range	225V--295V(default:250V)
Over-voltage protection action time	0.1s~30s(default value:0.5s)
Over-voltage r ecovery delay time	1s~500s(default:30s)
Under-voltage protection value range	140V--210V --OFF(default:170V)
Under-voltage recovery voltage range	145V--215V (default:190V)
Under-voltage protection action time	0.1s~30s(default:0.5s)
Under-voltage r ecovery delay time	1s~500s(default:30s)
Over-current adjustment range	1-40A (default20A) 1-63A (default:40A)
Over-current action range	0.1~30 second (default:0.5s)
Over-current r ecovery delay time	1s~500s(default:30s)
Power-on delay time	1s~500s(default:10s)
Power consumption	<2W
Electric machinery life	100,000 times

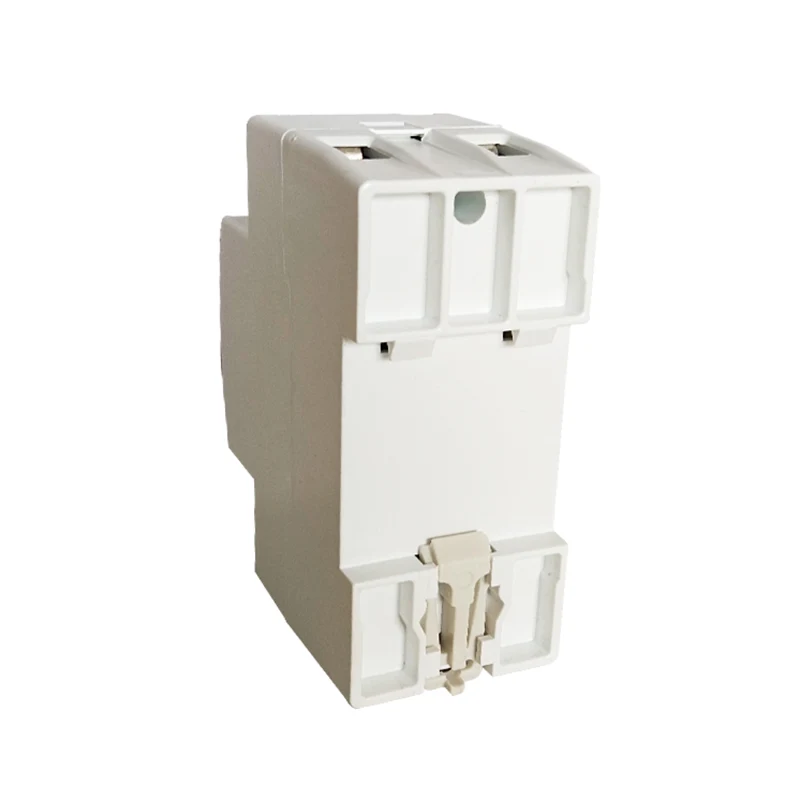

Installation	35mm DIN rail

Three-phase Balance Motion Time

No.	Times of the setting current	Motion time			Start condition	Ambient temperature
1	1.05	>2h			Cold state	20±5oC
2	1.2	<2h			Heat state(Following the No.1 test)
3	1.5	<4min
4	7.2	10A	2s< Tp≤10s	≤63A	Cold state
		10	4s< Tp≤10s	>63A

Phase-losing Motion Characteristic

No.	Times of the setting current		Motion time	Start condition	Ambient temperature
	Any two phases	Another phase
1	1	0.9	>2h	Cold state	20±5oC
2	1.15	0	<2h	Heat state(Following the No.1 test)

Principle of operation:

By monitoring the voltage in the circuit, when the voltage is lower than the set value, the low voltage protector will cut off the power supply or take other protective measures to prevent the equipment from being damaged or unable to work normally due to undervoltage.

Application Scenario:

Suitable for various occasions that require stable voltage supply, such as electric power system, industrial automation control system, household appliances and so on.

Features:

Characterized by high sensitivity, accurate action and reliable protection.

It can protect the equipment from under-voltage damage and ensure that the equipment works normally under a stable voltage environment.

Overvoltage and Undervoltage Protectors

Noted: When you first connect the product, you have to wait about 10 second( Power-on delay time:1 s~50 0s(default:10 s)), after the red light turn off, then the product will work.

Overvoltage and Undervoltage Protectors

Combined Protectors

In addition to separate overvoltage and undervoltage protectors, there are integrated protectors that provide both overvoltage and undervoltage protection. These combined protectors typically have more comprehensive protection characteristics and are capable of responding to multiple voltage anomalies at the same time, providing more comprehensive protection for circuits and equipment.
