China Residual Circuit Breaker with Overcurrent Protection Manufacturer, Supplier, Factory

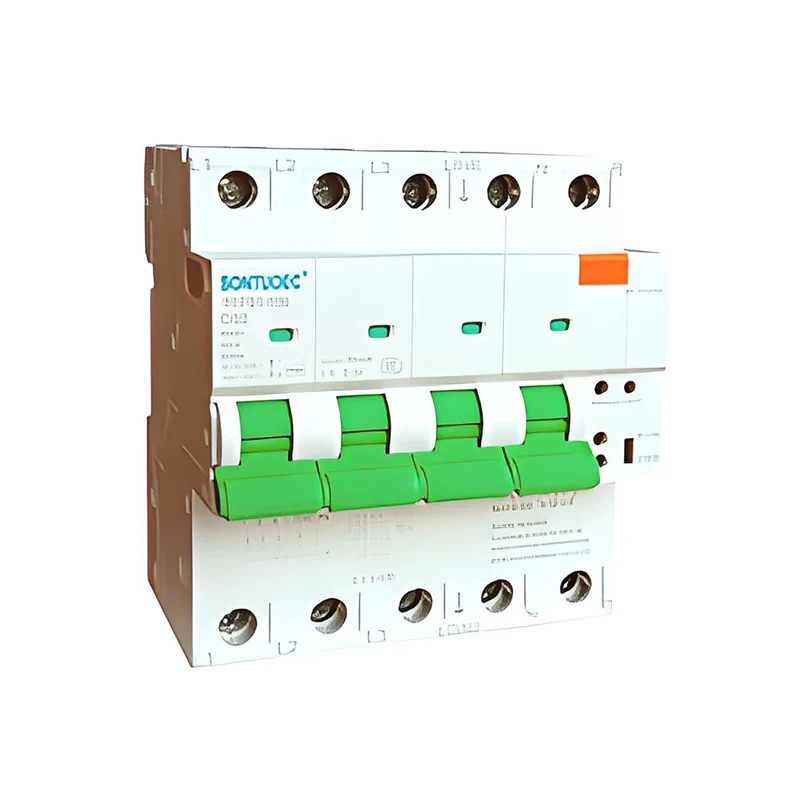

SONTUOEC is one of the Chinese suppliers/manufacturers specializing in the production of various small electrical appliances STRO1-40 RCBO, full name is Residual Current Circuit Breaker with Overcurrent Protection. It is an electrical safety device that integrates overload protection, short-circuit protection and leakage protection, and is widely used in electrical systems in residential, commercial and industrial areas to ensure personal safety and safe operation of equipment.STRO7-40 RCBO is an important electrical safety device with overload, short circuit and leakage protection. By understanding its working principle, characteristics, application scenarios, and selection and installation methods, you can better use and maintain STRO7-40 RCBO to ensure the safe operation of electrical systems.

SONTUOEC is one of the Chinese suppliers/manufacturers specializing in the production of various small electrical appliances.DZ47LE applicable to a line of AC 50/60Hz rated voltage 230V for single pole two wire, 2 pole or 400V for 3 pole, 3 pole 4 wire. 4 pole and rated current up to 63A. It can protect the line and motor from overload and short circuit It can also be used for infrequent line conversion and infrequent motor start.It conforms with the standards of IEC61009.1.

1.RCBO is mainly used in AC 50Hz(60Hz), rated voltage 230/400V, rated current 6A to 63A low voltage terminal distribution system. RCBO is equal with MCB+RCD function; It is used for electric shock protection and human indirect contact protection, electric equipment protection when human body touching electricity or electric network leak current exceeds stipulated value,and over load and short circuit protection ; It can also be a non-frequency operator in the circuit, wildly used in the residential and commercial district. It complies with standard of IEC61009-1. 2.MCB is used in AC50/60Hz, rated voltage of 230V3, 4 poles 400V, rated current to 63A for overload and short-circuit protection as well as for unfrequented switching under normal case.It is used extensively for industry, commercial and household.This product conform to IEC60898 standard. 3.RCCB is in conformity with the standards of IEC61008.It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunkline.Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.It can be used in circuits up to single phase 240V,three phase 415V,50 or 60Hz.

SONTUOEC is one of the Chinese suppliers/manufacturers specializing in the production of various small electrical appliances STRO7LE-63 RCBO is used in the single phase residence circuit of AC 50/60Hz, rated voltage 240V and its self-protecting up to a maximum short-circuit current 40A. It can protect civil electronic circuit from overload and short circuit. This product has advantages of small volume, high breaking capacity, and live wire are cut off at the same time, also protecting person from electric shock when the live wire connected opposite. And it complys with the standard of IEC 61009-1.

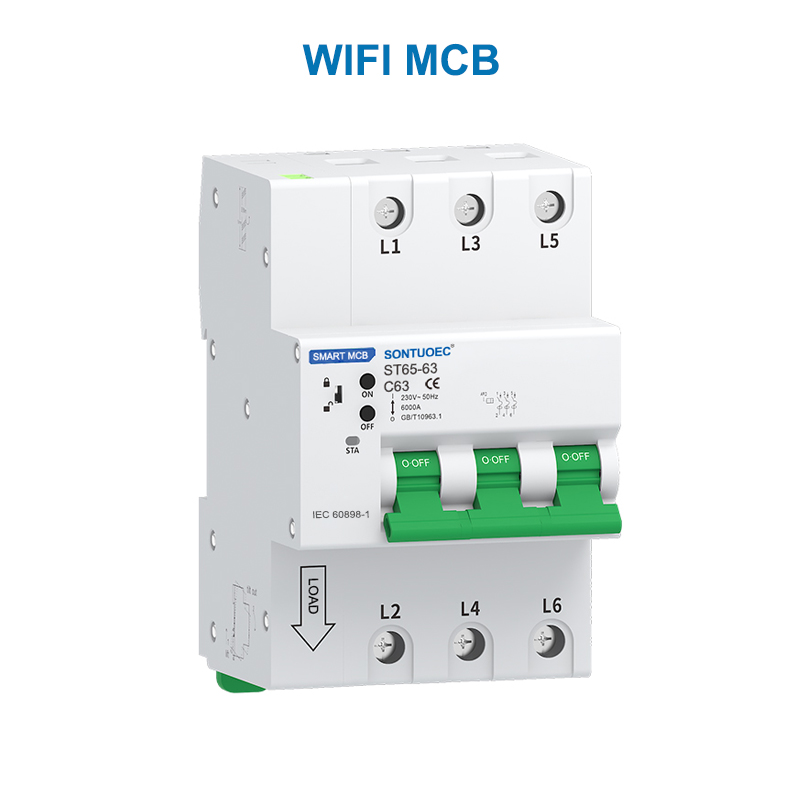

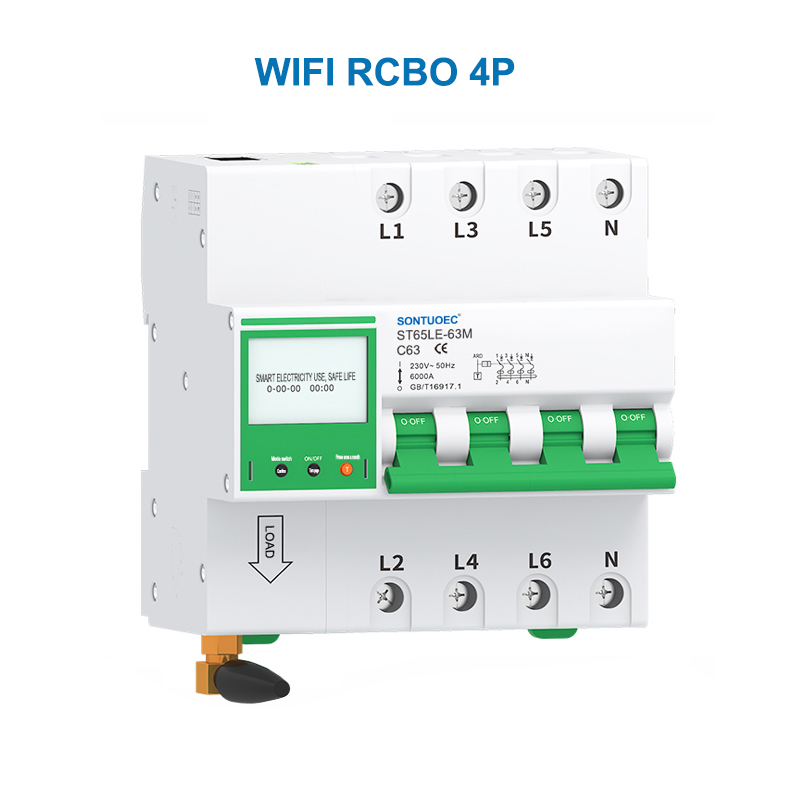

SONTUOEC is one of the Chinese suppliers/manufacturers specializing in the production of various small electrical appliances ST65LE-63H;series circuit breaker is a multi-function intelligent switch that integrates the ,overload, short circuit, over and under voltage, leakage, over, remote opening and closing, timing,network communication and so on.

SONTUOEC is one of the Chinese suppliers/manufacturers specializing in the production of various small electrical appliances 6ka 3P+N Leakage Circuit Breaker a (AC) Type RCBO with Cable is mainly used in AC 50Hz(60Hz), rated voltage 110/220V, 120/240V, rated current 6A to 40A low voltage terminal distribution system. RCBO STRO3-40L is equal with MCB+RCD function; It is used for electric shock protection and human indirect contact protection, electric equipment protection when human body touching electricity or electric network leak current exceeds stipulated value, and over load and short circuit protection.
