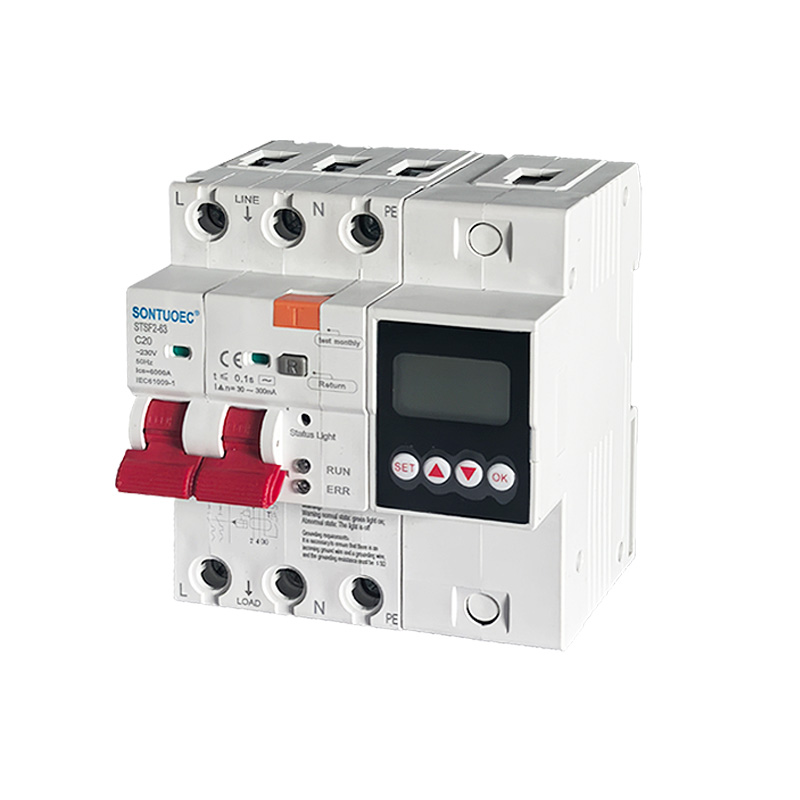

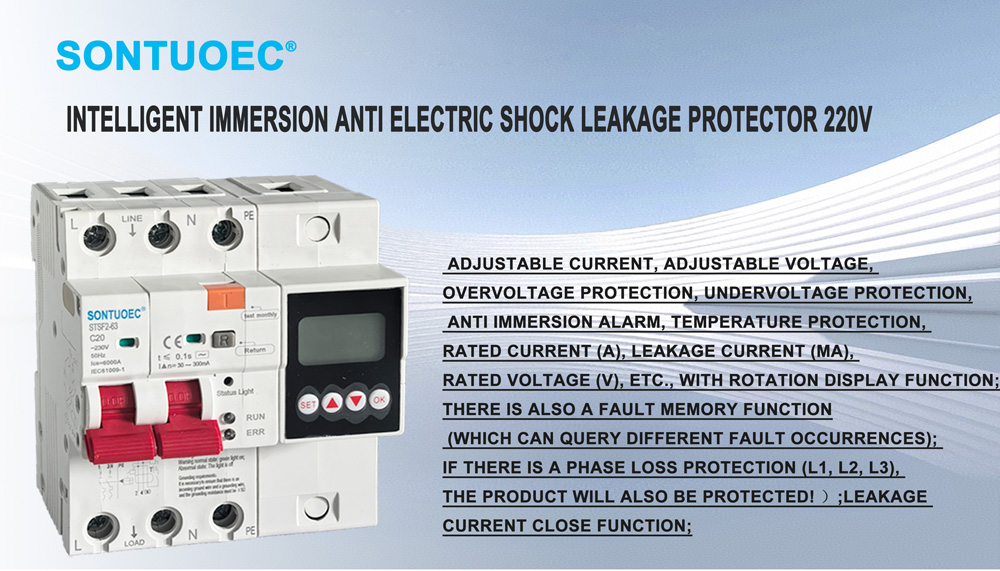

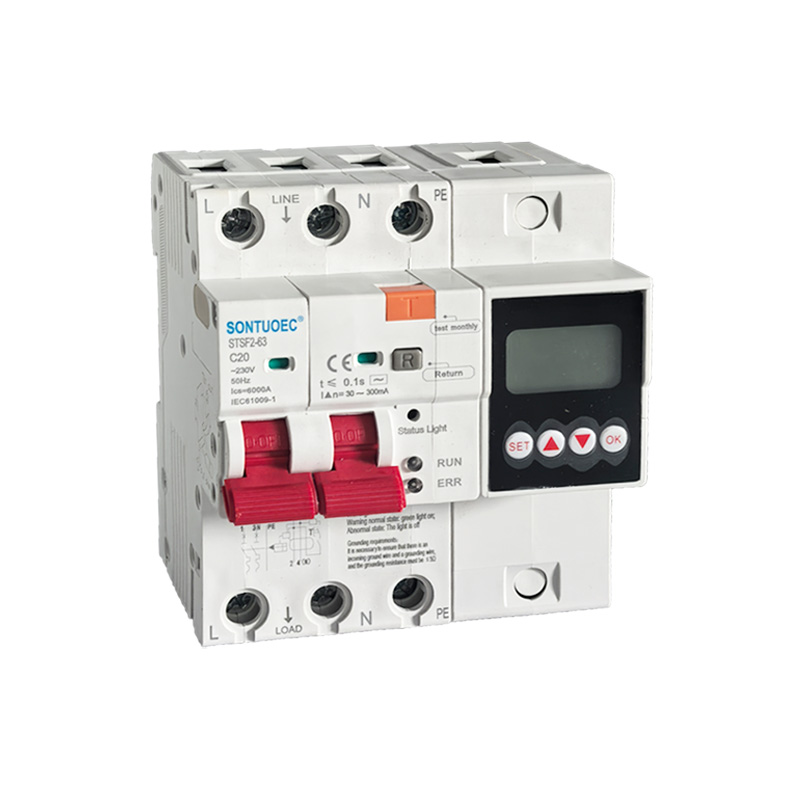

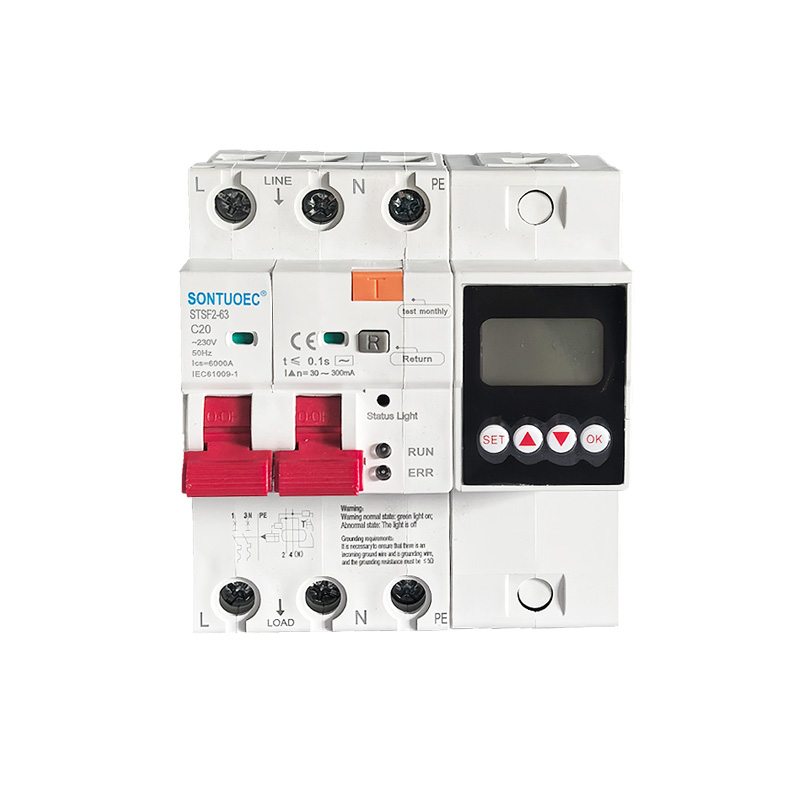

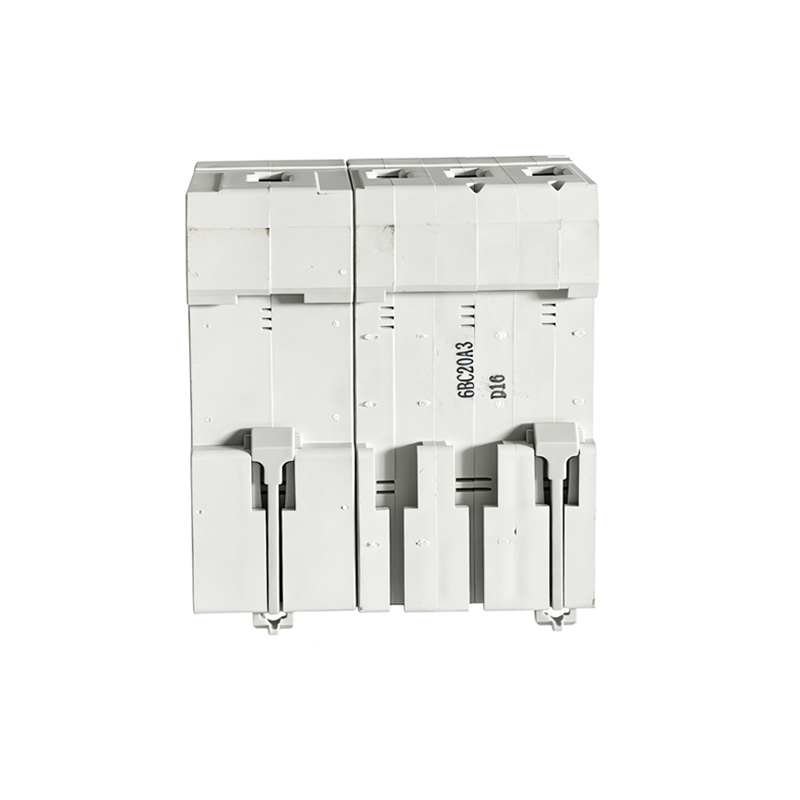

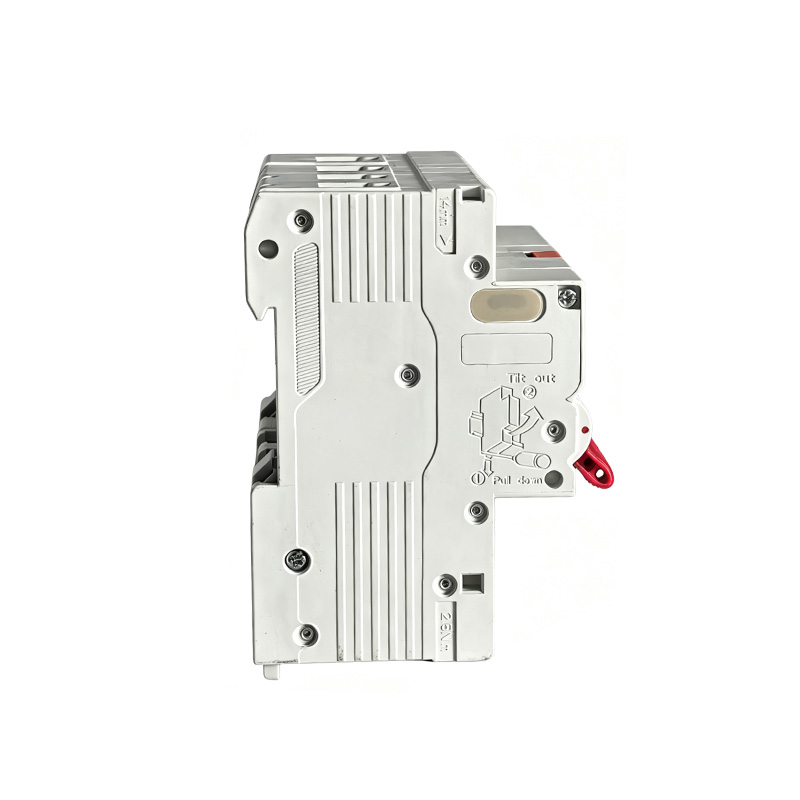

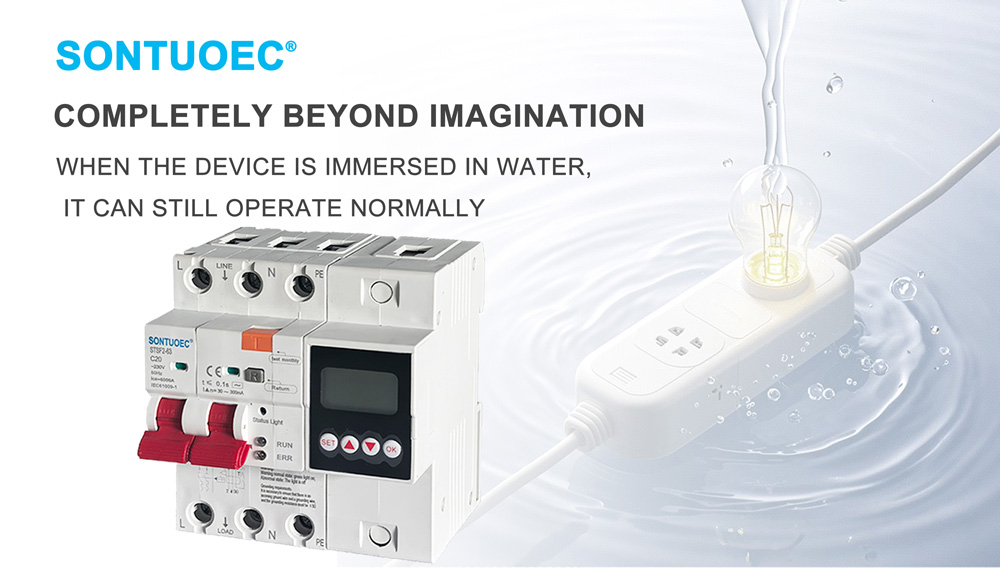

Intelligent immersion anti electric shock leakage protector 220V air circuit breaker

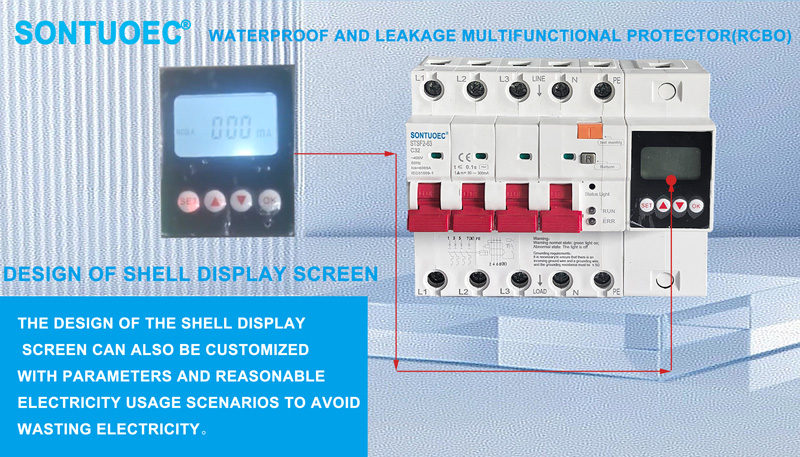

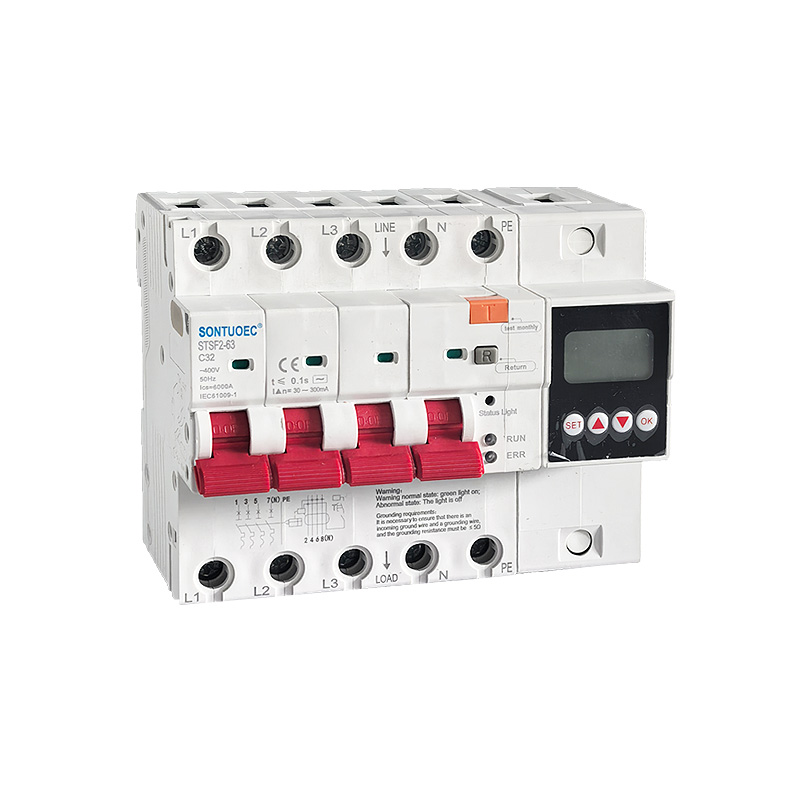

STSF2-63/100 100A 2p 4p Multifunctional RCBO is suitable for AC 50/60Hz, rated in a circuit with a voltage of 230V-400V and a rated current of 100A, when aperson is electrocuted or the power grid leaks. When the leakage, overvoltage, and undervoltage reach the set values, the residual current circuit breaker can quickly operate in a very short period of time quickly cut off the power supply. When the monitoring temperature of the residual current circuit breaker reaches the set value, the monitoring ground wire is not connected. When connected, the product emits an alarm sound to protect the safety of personnel and electrical equipment, and can avoid Prevent damage to equipment caused by overvoltage in the power grid. Has overload, short circuit, leakage, overvoltage Undervoltage and overtemperature protection functions can also be used to intermittently turn on and off electrical devices under normal circumstances Lighting circuits, especially suitable for industrial and commercial lighting distribution systems. The product has a small volume, compact structure, and better cost-effectiveness than other similar products. It has a beautiful appearance, High breaking capacity makes it a good choice for household power distribution. This product complies with GB/T 16917.1 and IEC 61009-1 standards and has obtained CE certification.

Model:STFS2-63

Send Inquiry

Product Description

SPECIFICATIONS:

Electrical features	Standard	Unit	IEC/EN 61009-1
	Mode		Electronic type
	Type(wave form of the earth leakage sensed)		AC
	Thermo-magnetic release characteristic		B,C,D
	Rated current ln	A	6-100A(6,10,16,20,25,32,40,63;80,100A) Adjustable
	Poles	P	1P+N, 3P+N
	Rated voltage Ue	V	AC 230, 400 (Adjustable)
	Rated sensitivity I△n	A	30-300mA(30,100,300mA) Adjustable
	Rated residual making and breaking capacity l△m	A	500
	Rated short-circuit capacity Icn	A	6000
	Break time under I△n	S	≤0.1
	Rated frequency	Hz	50/60
	Rated impulsewithstand voltage(1.2/50)Uimp	V	4000
	Dielectric test voltage at ind.Freq for 1min	kV	2
	Insulation voltage Ui	V	250
	Pollution degree		2
Other	Over/under voltage protection;	and	Temperature Protection ; Fire-alwarm and others
Mechanical features	Electrical life		4000
	Mechanical life		10000
	Fault current Indicator		YES
	Protection degree		IP20
	Ambient temperature	ºC	-5~+40(Special application please refer to
	(with daily average≤35ºC)	ºC	temperature compensation correction)
	Storage temperature	ºC	-25~+70
Installation	Terminal connection type		Cable/Pin-type busbar/U-type busbar

	Terminal size top/bottom for cable	mm2	25
	Terminal size top/bottom for cable	AWG	18-5
	Terminal size top/bottom for busbar	mm2	25
	Terminal size top/bottom for busbar	AWG	18-3
	Mounting		On DIN rail EN 60715(35mm)by means of fast clip device
	Connection		From top

SURROUNDING AIR TEMPERATURE：

1.The ambient air temperature shall not be lower than -5 1C, not higher than+40 C, and the daily average value shallnot exceed+35 C.

2. Altitude: The altitude of the installation site shall not exceed 2000m.

3.Atmospheric conditions

The air is clean, and at a maximum temperature of+40 'C, the relative humidity of the air is not high More than 50%. Higher relative humidity is allowed at lower temperatures, such as at+20 C,

The relative humidity should not exceed 90%. Due to occasional moderate condensation caused by temperature changes, Attention should be paid to taking appropriate measures.

4. Installation Category Installation categories are lI and III

Current and Number of Poles

100A: This indicates that the RCBO is rated at 100 amps. The current rating is the maximum value of current that the circuit breaker can carry continuously without causing overheating or damage.

2p, 4p: The “p” here stands for the number of poles, i.e., the number of circuit phases to which the circuit breaker can be connected. 2p means that the circuit breaker can be connected to two circuit phases (usually Fire and Zero), whereas 4p means that it can be connected to four circuit phases (usually three-phase Fire and Zero).

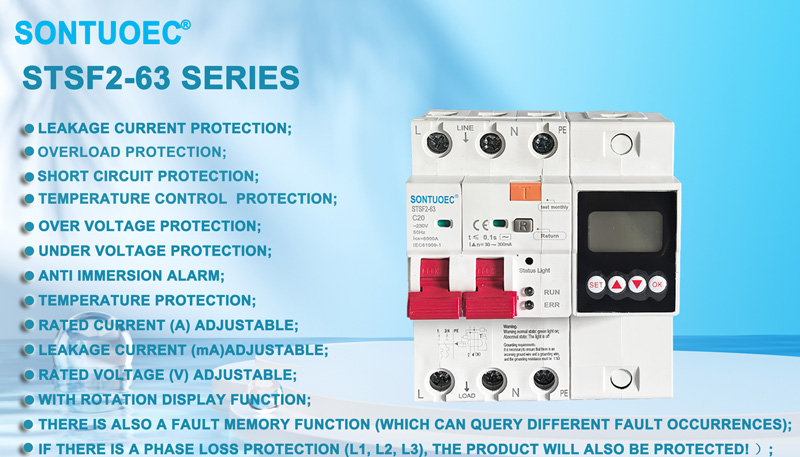

Multifunctional

Multifunctional indicates that this 100A 2p 4p Multifunctional RCBO is equipped with a variety of protection functions. In addition to basic overload and short-circuit protection, it can also provide leakage protection, undervoltage protection, overvoltage protection, and so on. temperature protection，Water ingress alarm，Adjustable current and voltage。These protections allow the RCBO to provide more comprehensive protection for circuits and equipment.

Warning!

Warning normal state: green light on;

Abnormal state: The light is off

Grounding requirements:

Itis necessary to ensure that there is an incoming ground wire and a grounding wire, and the grounding resistance must be s 5Q!

Application Scenario

Since RCBO has a variety of protection functions, it is often used in circuits that require personal safety, such as electrical circuits for lighting, weak power, and electrical appliances in homes and public places. These places are often characterized by water and moisture, which can easily cause leakage accidents. In addition, RCBO can also be used in industrial electrical systems where human safety is a prerequisite, such as peripheral light control circuits, radar systems, and geological exploration instruments.
