DIN Rail Type MCB

DIN Rail Type MCB combines the standardized installation of DIN rail with the circuit protection function of miniature circuit breaker. It is mainly used in electrical systems to protect circuits and equipment by quickly cutting off the current when there is an abnormal situation such as overload or short circuit. At the same time, it makes the installation, replacement and maintenance process more convenient and standardized due to its DIN rail mounting method.

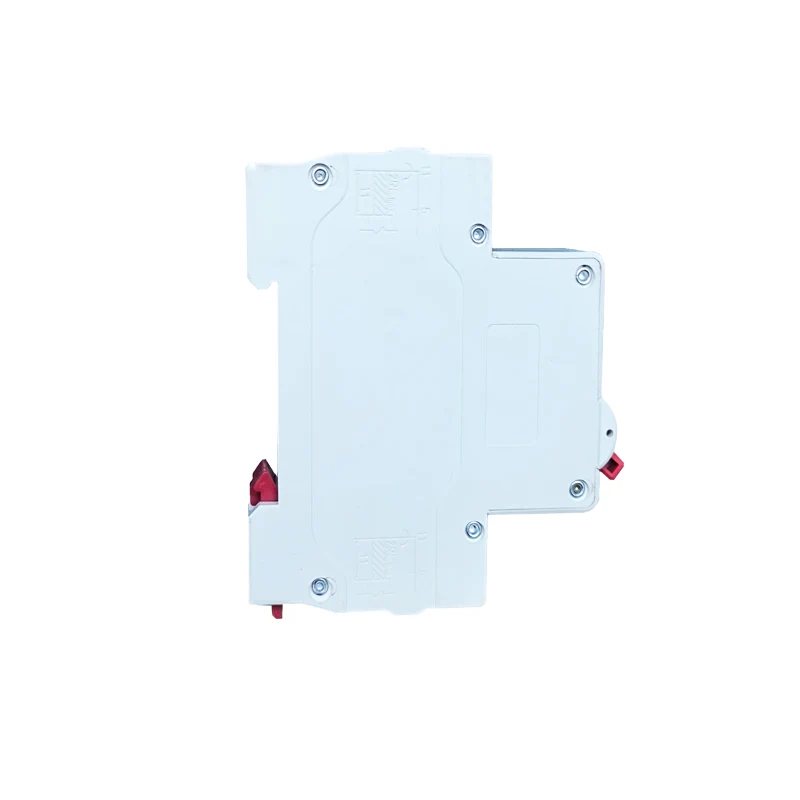

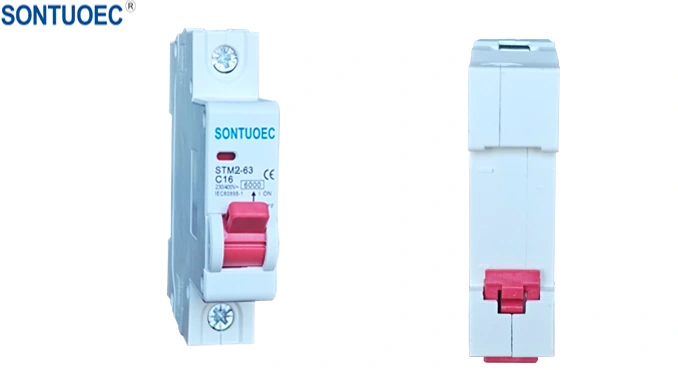

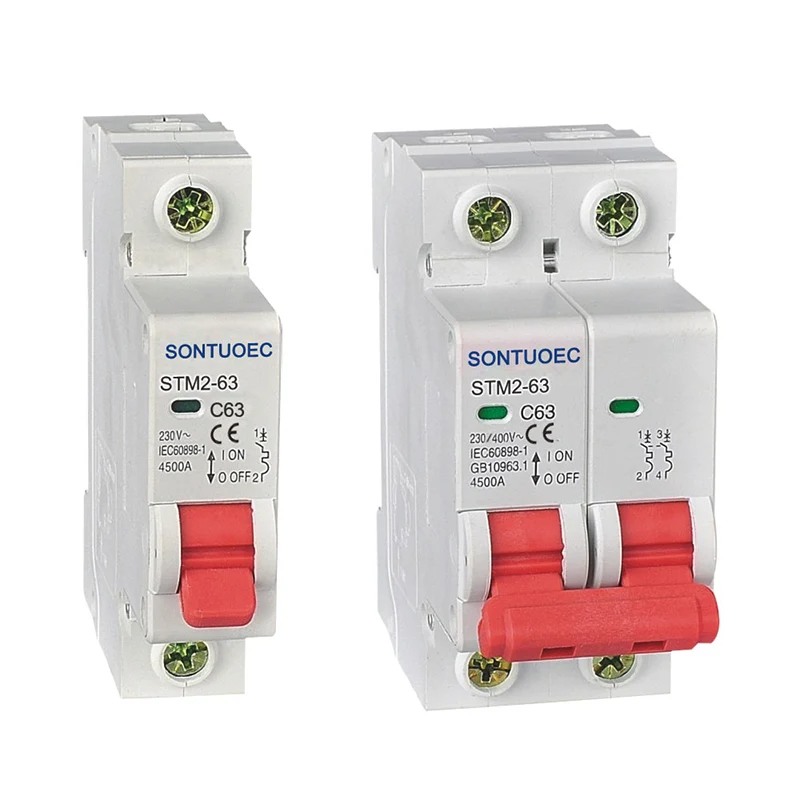

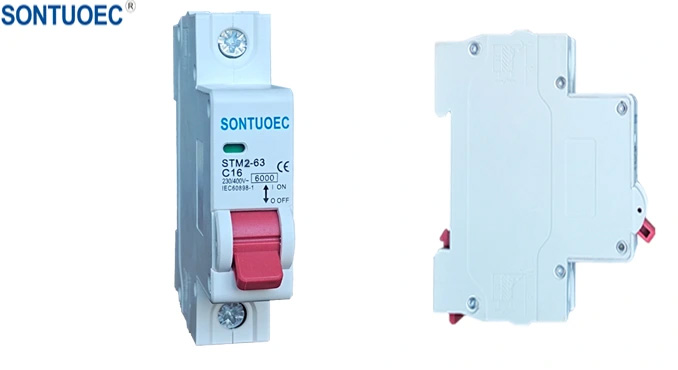

Model:STM2-63

Send Inquiry

Product Description

Model	STM2-63
STANDARD	IEC60898-1

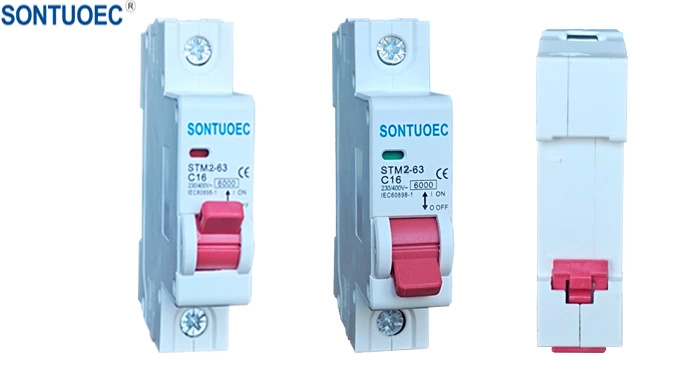

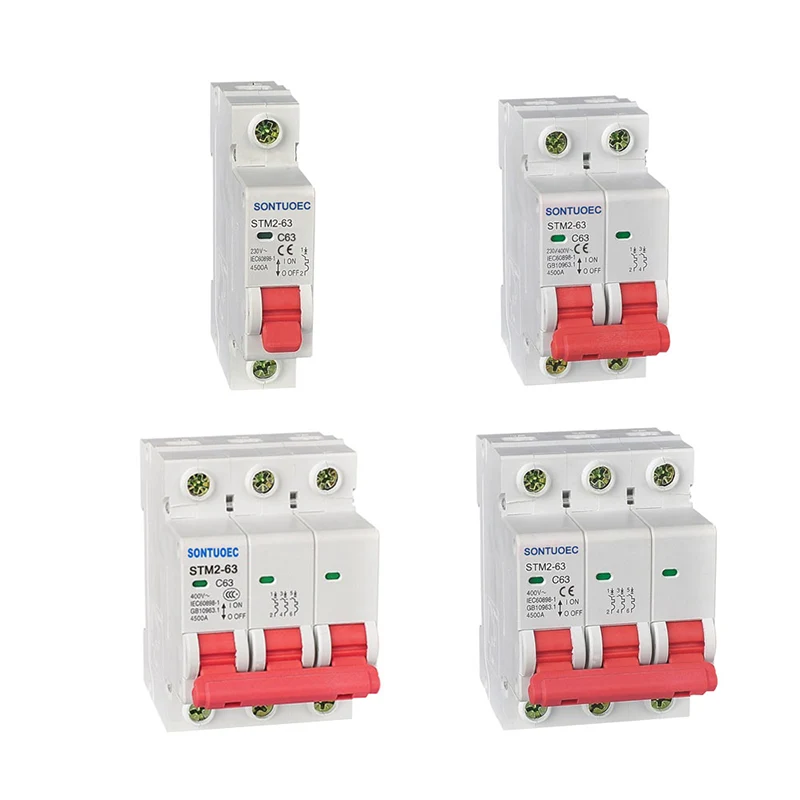

Pole	1P,2P,3P,4P
Rated Current(In)	1,2,4,6,10,16,20,25,32,40,50,63A
Rated Voltage(Un)	AC230(240)/400(415)V
Breaking capacity	3KA,4KA,5KA,6KA
Rated Frequency	50/60HZ
Tripping curve	B,C,D
Magnetic releases	B curve: between 3In and 5 In
	C curve: between 5In and 10In
	D curve: between 10In and 14In
Electro-mechanical endurance	over 6000 cycles

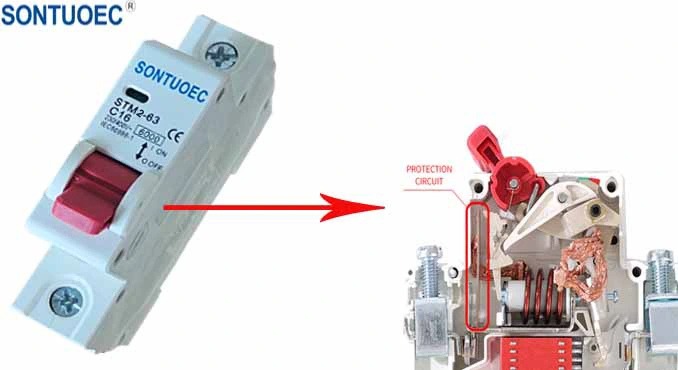

DIN Rail Type MCB Overview

DIN rail is a standard type of metal rail widely used for mounting circuit breakers and industrial control equipment in equipment racks. DIN stands for “Deutsche Institut für Normung” and is universally interchangeable, allowing compatibility and interchangeability between components from different manufacturers. One common type of DIN rail is the TS35 DIN rail, which is suitable for mounting electrical industrial control products and components, such as circuit breakers, motor controllers, and so on.

Features of DIN Rail Type MCB

Standardized installation: DIN Rail Type MCB adopts DIN rail mounting method, which makes the installation process more standardized and convenient. Users only need to insert the circuit breaker into the corresponding position on the rail, and the installation can be completed without complicated wiring and fixing steps.

Circuit Protection: As a miniature circuit breaker, DIN Rail Type MCB is equipped with overload protection and short circuit protection. When there is an overload or short circuit in the circuit, it can quickly cut off the current, preventing the fault from expanding and equipment damage.

Flexibility: The DIN rail system offers a wide range of mounting positions and space options, allowing DIN Rail Type MCBs to be flexibly configured in different locations in the circuit as needed.

Ease of maintenance: Thanks to the standardized mounting, the replacement and maintenance process of DIN Rail Type MCBs is also much simpler and faster. The user simply removes the faulty circuit breaker from the rail and inserts a new one.
