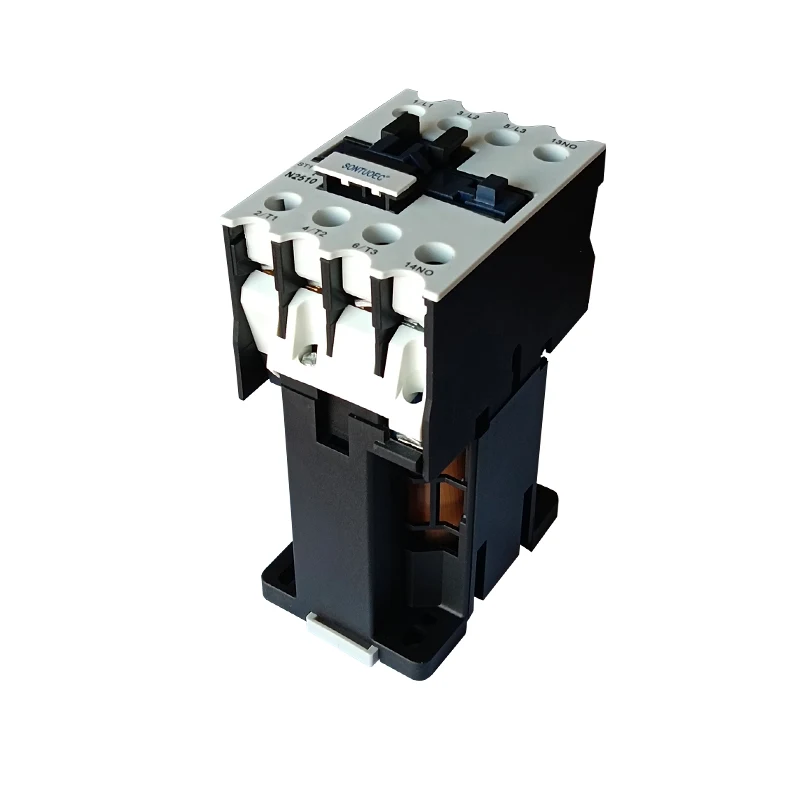

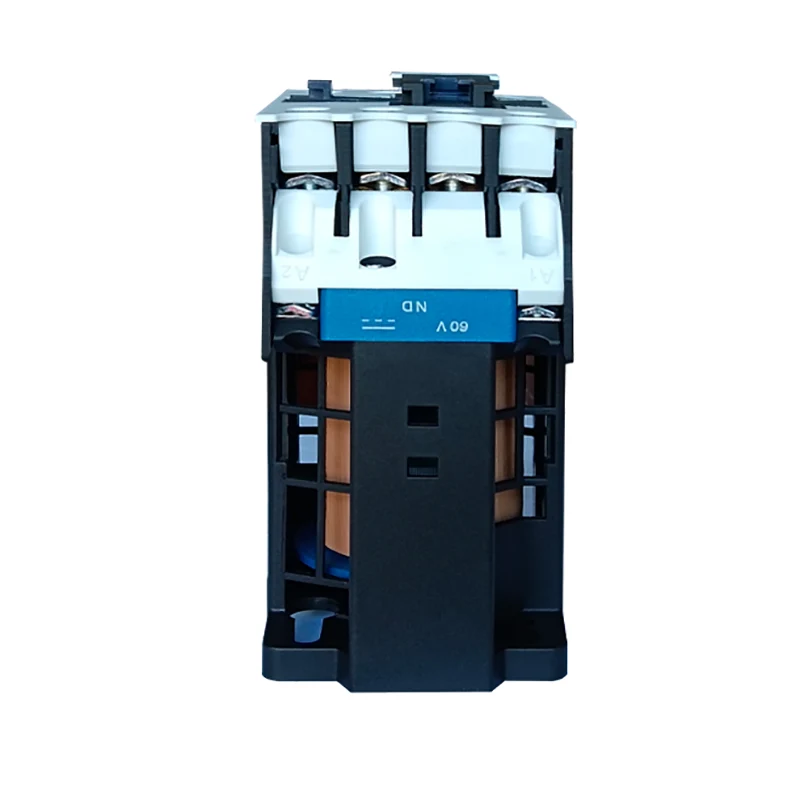

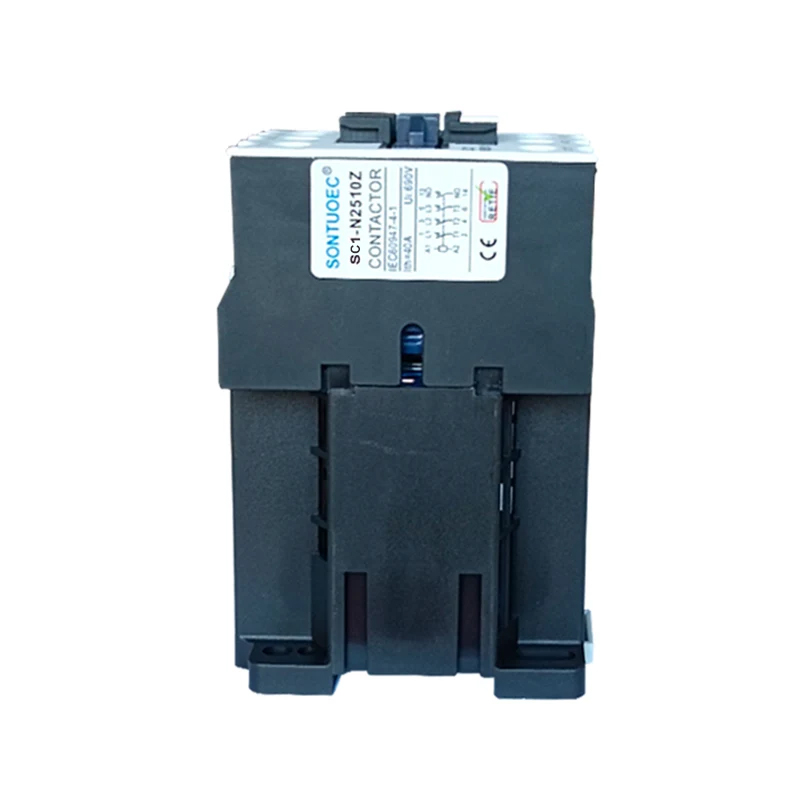

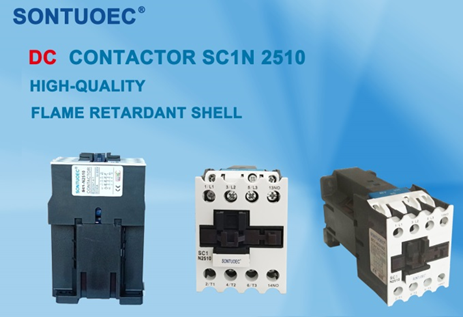

DC Magnetic Contactor

Principle of operation

When the coil of a DC magnetic contactor is energized, the DC current in the coil generates a magnetic field. This magnetic field will cause the static iron core to generate electromagnetic suction, which attracts the moving iron core, thus driving the contact system to act. Normally, the normally closed contacts will open and the normally open contacts will close, realizing the on/off control of the circuit. When the coil is de-energized, the electromagnetic suction disappears, the movable iron core resets under the action of the spring, and the contacts return to their original state.

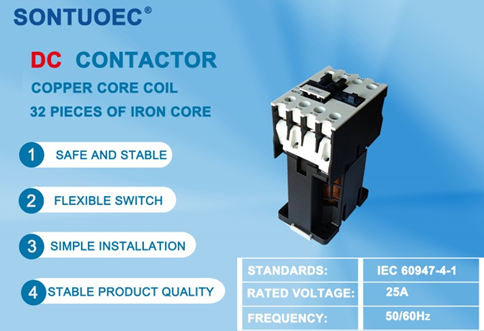

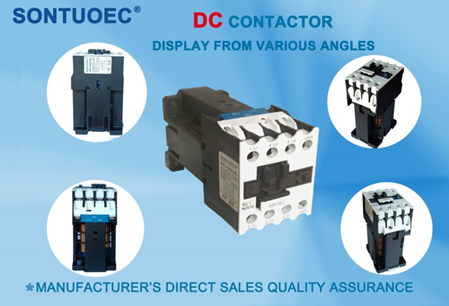

Main structure and characteristics

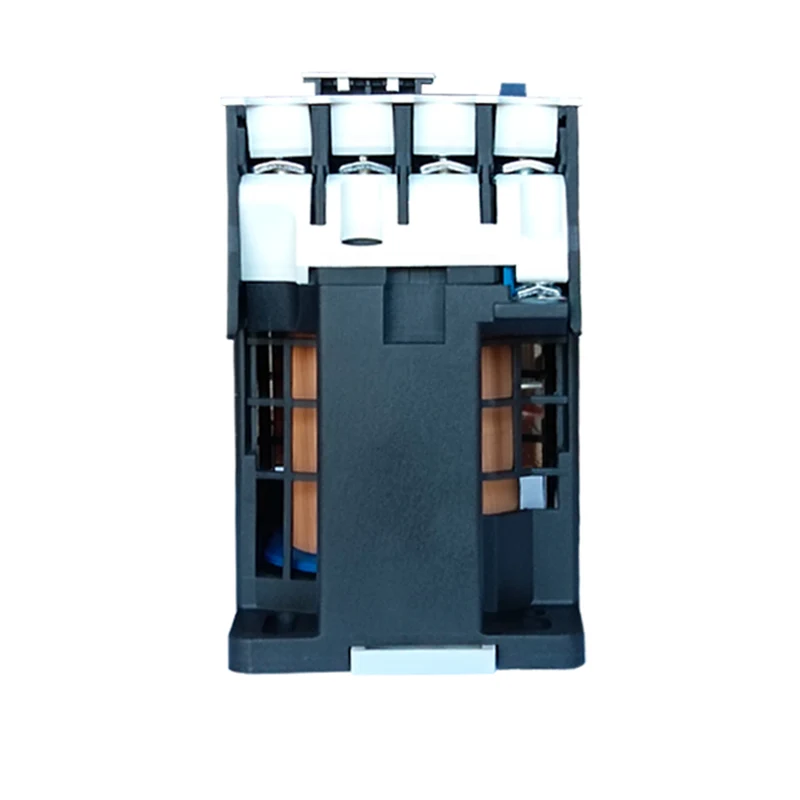

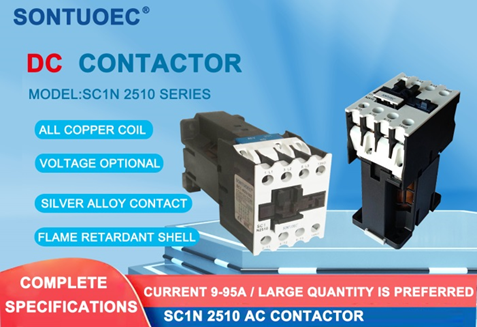

Electromagnetic system: including coil, static iron core and moving iron core and other components, is the key part of generating magnetic field and controlling the action of contacts.

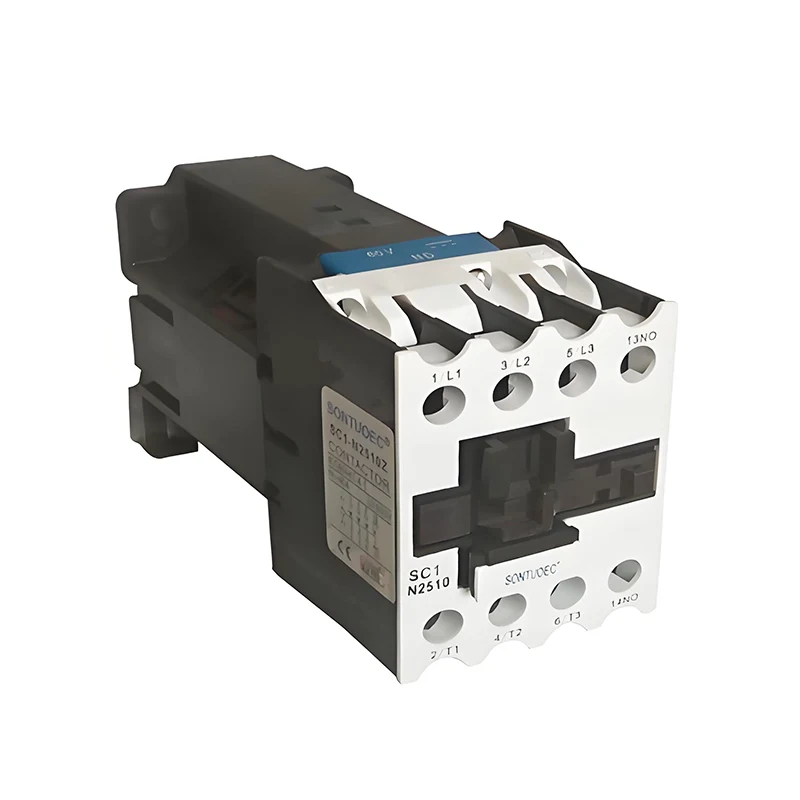

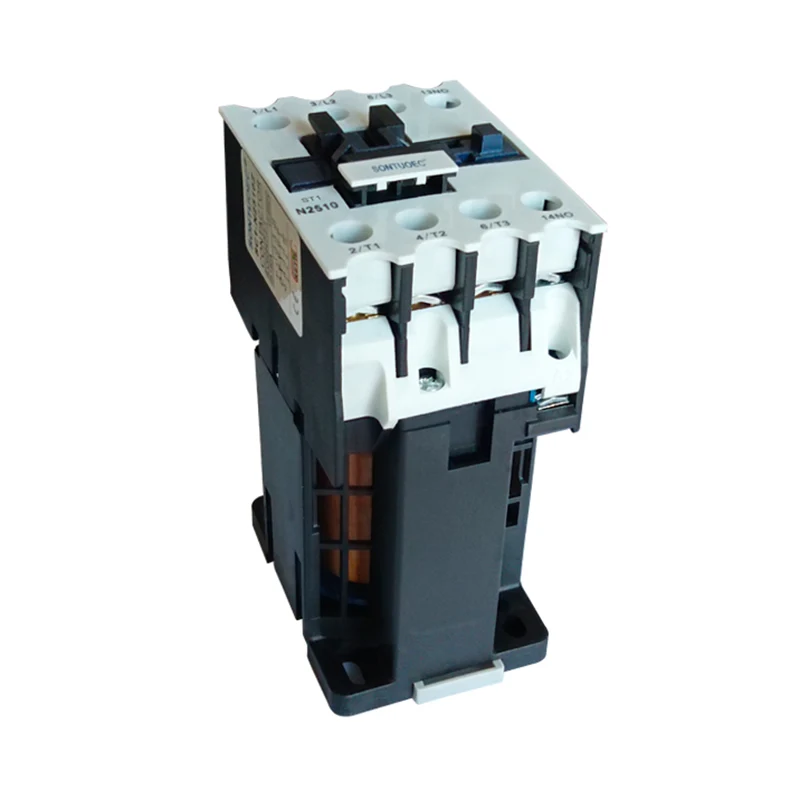

Contact system: including normally open contacts and normally closed contacts, used to control the circuit on and off. Contact materials usually have good electrical conductivity and high temperature performance.

Arc extinguishing device: used to extinguish the arc when the contact is broken, to protect the contact from damage. For large-capacity contactors, the design of the arc extinguishing device is particularly important.

DC magnetic contactor is characterized by simple structure, reliable action, long life and easy maintenance. At the same time, due to the use of DC power supply, it has low energy consumption and noise.

Selection and Precautions

When selecting a DC magnetic contactor, the following factors need to be considered:

Rated voltage: Make sure the rated voltage of the selected contactor matches the DC voltage in the circuit.

Rated current: According to the amount of load current in the circuit, select a contactor with the appropriate rated current value. At the same time, it is also necessary to consider the overload capacity and short-circuit withstand capacity of the contactor.

Contact form and number: According to the demand of circuit control, select the appropriate contact form and number. For example, whether normally open or normally closed contacts are required, and how many contacts are needed.

Brand and quality: Choose well-known brands and high-quality products to ensure the reliability and service life of the contactor. Also, consider factors such as the product's after-sales service and technical support.

When using DC magnetic contactors, you need to pay attention to the following matters:

Correct wiring: Make sure the wiring of the contactor is correct to avoid wrong wiring leading to circuit failure or damage to the contactor.

Regular inspection and maintenance: Regularly inspect and maintain the contactor, including cleaning the contacts, checking the coil resistance and insulation resistance. Make sure the contactor is in good working condition.

Avoid overloading and short-circuiting: Avoid letting the contactor work under overloading or short-circuiting for a long time to avoid damaging the contactor and affecting the stability of the circuit.
