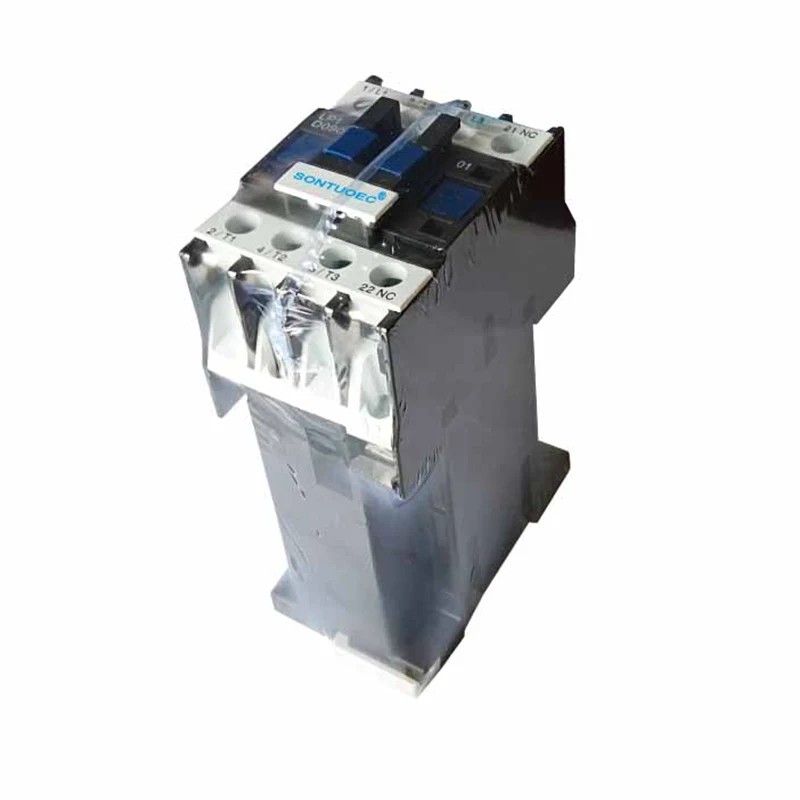

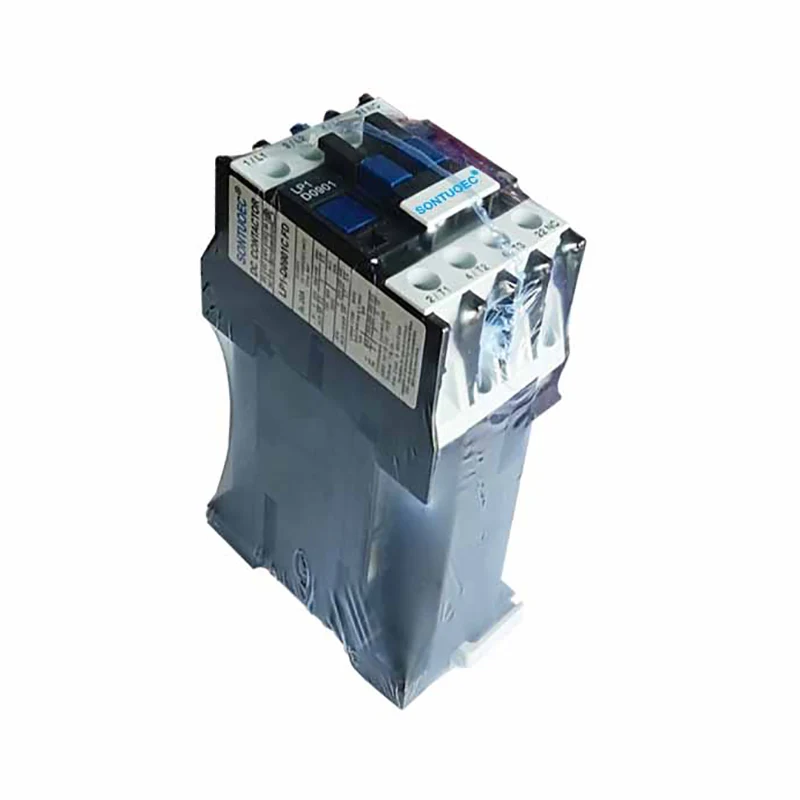

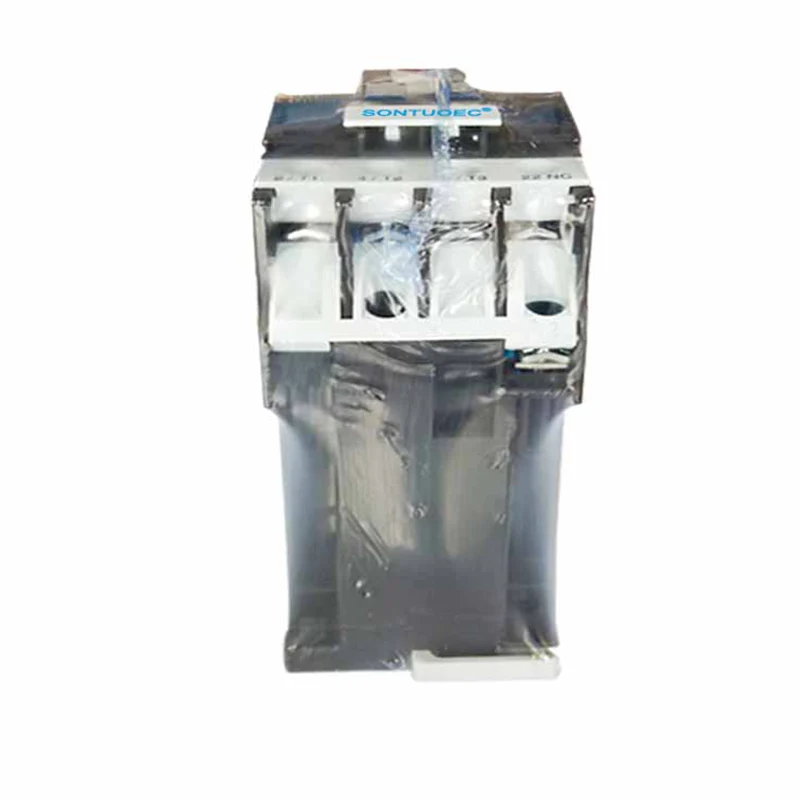

12 V DC Contactor

The 12 V DC Contactor is a contactor that can work under 12 volts DC voltage, it is mainly used to control the on-off of DC circuit and realize the remote control and protection of the circuit. By controlling the coil of the contactor to energize or de-energize, it can make the contacts of the contactor close or break, thus controlling the on-off of the circuit.

Model:LP1-D

Send Inquiry

Product Description

Type		LP1-D	LP1-D	LP1-D	LP1-D	LP1-D	LP1-D	LP1-D	LP1-D	LP1-D	LP1-D
		9	12	18	25	32	40	50	63	80	95
									60
Rated insulatio voltage		660	660	660	660	660	660	660	660	660	660
conventional thermal		20	24	32	40	50	60	75	80	110	125
current		20	24	32	40	50	60	75	80	110	125
Rated operational		9	12	16	25	32	40	50	63	80	95
current		9	12	16	25	32	40	50	63	80	95
controlled	220V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
power(kw)	380V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	35	37	45	45
	440V	4	5.5	9	11	15	22	30	37	45	45
	660V	5.5	7.5	10	15	18.5	30	33	37	45	45
Note		The installation of the					The installation of the
		relays can use two screws					relays can three
		and also use the 35mm					screws and also use the
		installation rail					75mm or 35mm installation
							rail

Main Features

Low voltage operation: the 12 V DC Contactor is able to work under low DC voltage, which makes it widely used in some occasions where low voltage control is required.

High reliability: Thanks to the advanced manufacturing process and materials, the 12 volt DC contactor has high reliability and service life, which can ensure the stable operation of the circuit.

Remote control: By energizing or de-energizing the control coil, remote control of the contactor can be realized, which is convenient for users to operate the circuit.

Multiple contact forms: 12-volt DC contactors have multiple contact forms, such as normally open contacts, normally closed contacts and changeover contacts, etc., which can meet the needs of different circuit control.

Selection and Considerations

When selecting a 12-volt DC contactor, the following factors need to be considered:

Rated Voltage: Make sure the rated voltage of the selected contactor matches the DC voltage in the circuit.

Rated current: According to the amount of load current in the circuit, select a contactor with the appropriate rated current value.

Contact form: According to the demand of circuit control, choose the contactor with suitable contact form.

Brand and quality: Choose well-known brands and high-quality products to ensure the reliability and service life of the contactor.

When using a 12-volt DC contactor, you need to pay attention to the following matters:

Correct wiring: Make sure the wiring of the contactor is correct to avoid miswiring which may cause circuit failure or damage to the contactor.

Regular inspection: Inspect and maintain the contactor regularly to ensure it is in good working condition.

Avoid overload: Avoid letting the contactor work under overload for a long time to avoid damaging the contactor and affecting the stability of the circuit.
