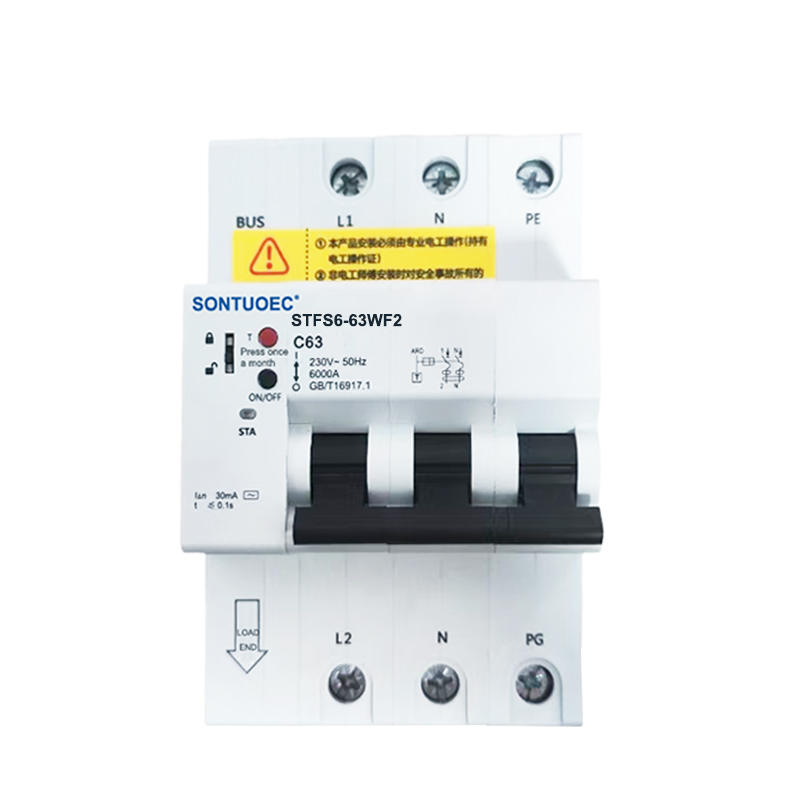

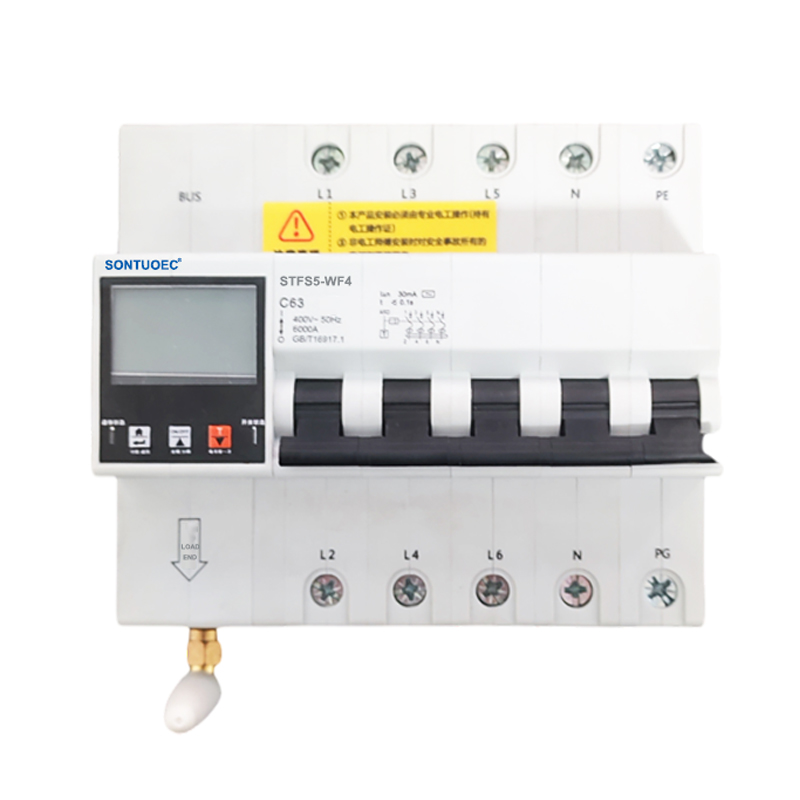

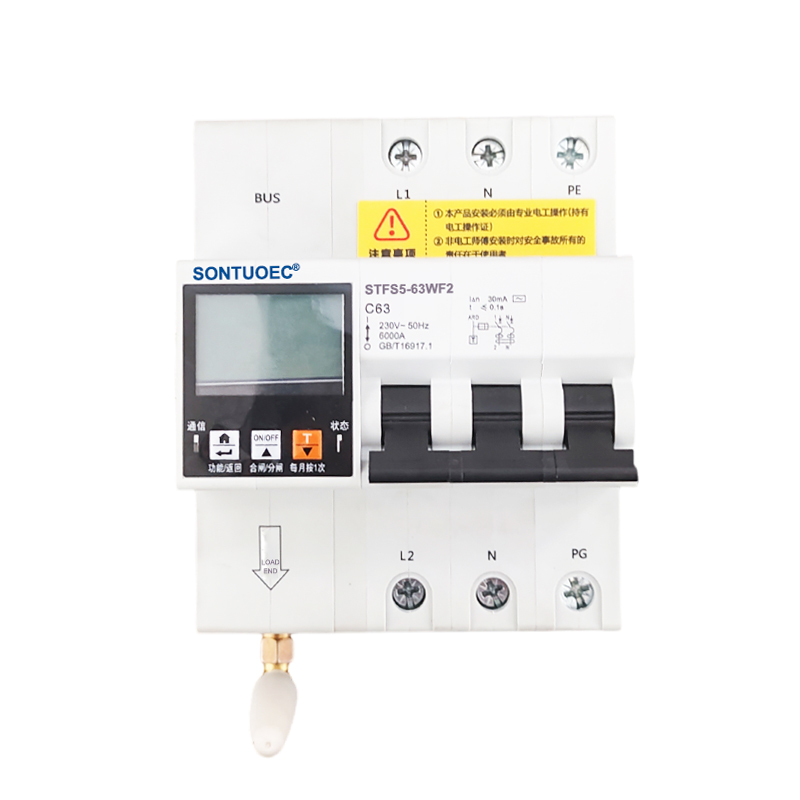

WiFi STFS5-63 Series Multi functional IoT Intelligent RCBO Intelligent Circuit Breaker

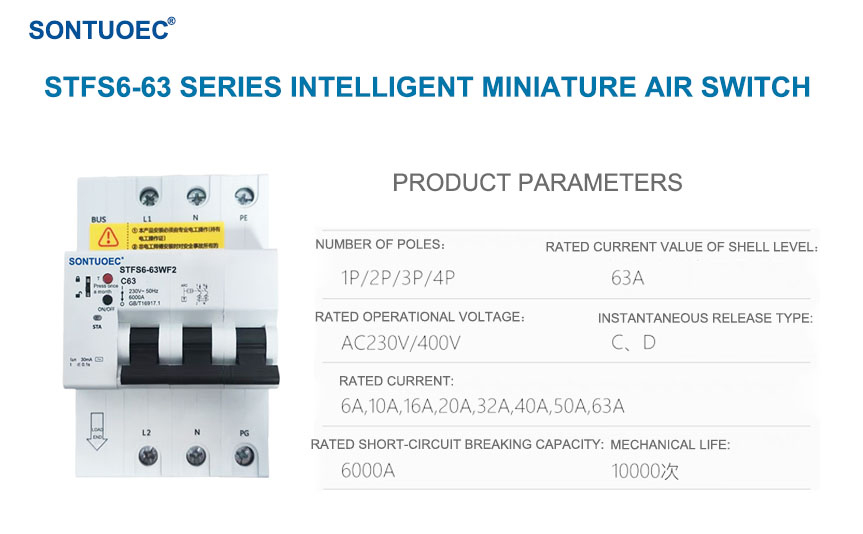

SPECIFICATIONS:

Conforming to standards	GB10963.1
Instantaneous trip type	Type C (other types, can be customized)
Rated current	16A,20A,25A,32A,40A,50A,63A,80A,100A
Short-circuit breaking capacity	≥6KA
Short circuit protection	When the line is short-circuited, the circuit breaker is powered off for 0.01s
Overvoltage protection	When the line is over or under voltage, the circuit breaker will be cut off after 3S (can be set) Over / under voltage setting demand setting percentage value
Overload delay protection	According to the rated current of the circuit breaker, it meets the requirements of GB10963.1 standard
Timing control	Can be set according to demand
View	Through the mobile phone APP, you can view the voltage, switch on and off status
Support Voice Control	Work with Amazon Alexa/Google Assistance/IFTTT
Manual automatic integrated control	The mobile phone APP can be automatically controlled, and can also be controlled by the push rod (handle);
communication method	Wireless WIFI

-Rated voltage: Suitable for AC 50/60Hz, with a typical rated voltage of 230/400V, suitable for common mains power systems.

Functional Features:

Characteristics of Ability

-Protection function: equipped with comprehensive overload and short circuit protection mechanisms. When the current in the circuit continues to exceed the rated value or a short circuit fault occurs, it can quickly and automatically cut off the circuit, prevent electrical equipment from causing safety accidents due to overheating, ignition, etc., and ensure the safety of electrical equipment and lines. Some products also integrate residual current protection (leakage protection) function, which can monitor the leakage situation in real time. In case of electric shock or electrical insulation damage, the power supply can be quickly cut off to avoid the danger of electric shock and protect personal safety.

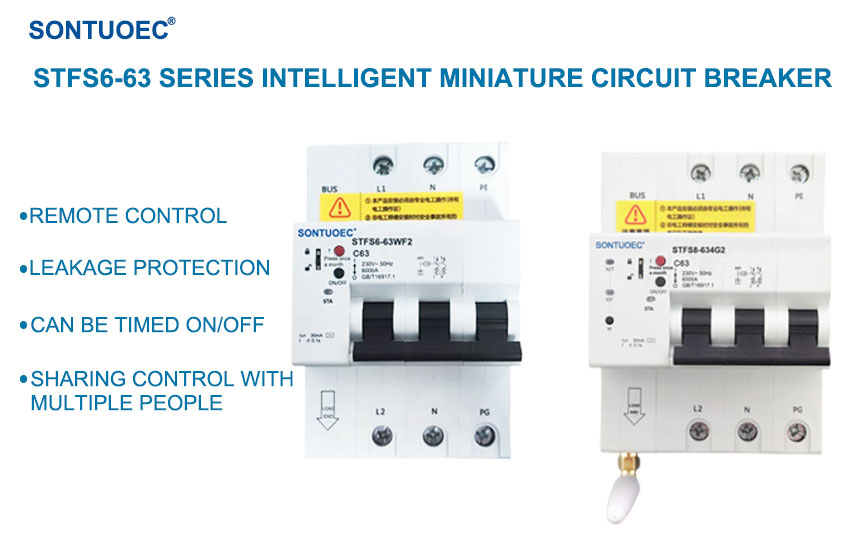

Intelligent features: Supports WiFi wireless communication and can be connected to the Internet of Things. Users can remotely and real-time view the working status of circuit breakers, such as current, voltage, power, and other electrical parameters, through mobile apps or computer terminals; It can also remotely control the opening and closing of the circuit breaker, making it convenient to manage the circuit when away from home or when on-site operation is inconvenient. Parameter thresholds can be set to intelligently warn of abnormal electrical parameters, such as current approaching overload thresholds, abnormal voltage fluctuations, etc., and timely push warning information to users for early investigation and elimination of electrical hazards. Being able to record electricity consumption data and operation records, through the analysis of historical data, users can understand their electricity consumption habits and equipment operation status, which helps to plan electricity consumption reasonably, optimize electrical equipment usage plans, and achieve energy conservation and efficiency improvement.

Application scenarios:

-Family residence: can serve as a key protective device in the household distribution box, protecting various electrical equipment such as refrigerators, air conditioners, televisions, etc., to prevent safety issues caused by electrical failures; Collaborate with smart home systems to achieve intelligent management of household electricity usage, enhancing the convenience and safety of home life.

-Small commercial premises: suitable for shops, offices, small restaurants and other places, ensuring the normal operation of electrical equipment in the premises and guaranteeing the safety of personnel and property; Managers can improve operational management efficiency by remotely monitoring and managing electricity usage.

-Industrial control: In some industrial control scenarios that require electrical safety and intelligent management, it can be used to protect small equipment and branch circuits.

The product is equipped with a PE protective grounding terminal, which connects the metal casing of the equipment to the ground and guides the fault current into the ground in case of leakage, preventing electric shock accidents. If you are planning to upgrade your electrical system, create a smart home, or purchase reliable power distribution equipment for commercial spaces such as residential homes, small commercial areas, industrial control systems, etc., you may consider purchasing SONTUOEC WiFi smart circuit breakers.
