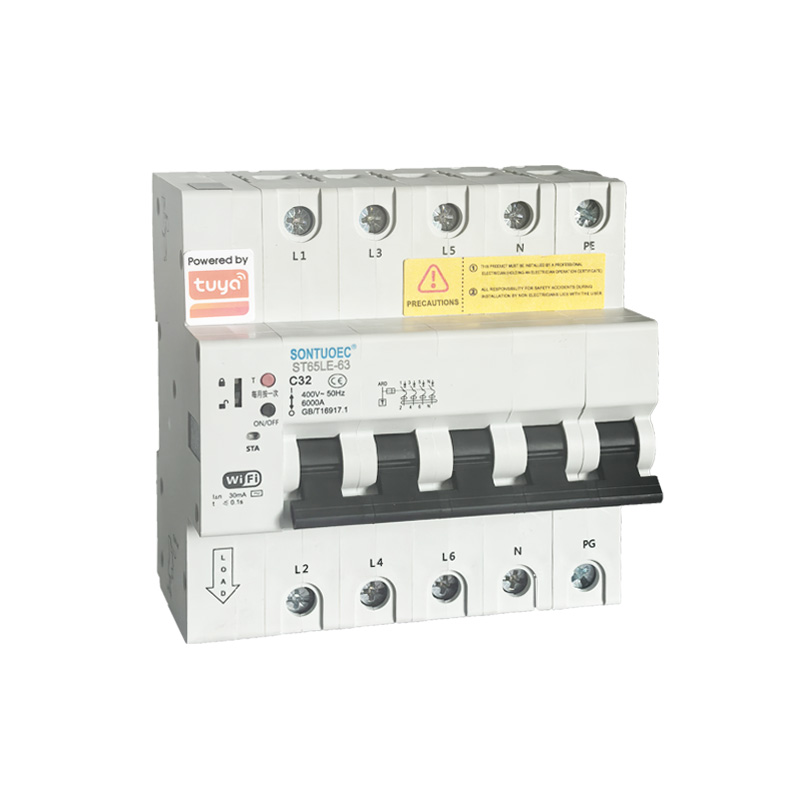

WiFi ST65LE-63wf2 Series Multi Functional IoT Intelligent RCBO Intelligent Circuit Breaker

SPECIFICATIONS:

	Standard		IEC/EN  60898-1
Electrical features	Rated current In	A	1,2,4,6,10,16,20,25,32,40,50,63
	Poles	P	1,2,3,4
	Rated voltage Ue	V	AC   230/400;  240/415
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	4500  ;6000
	Rated impulse withstand voltage(1.2/50)Uimp	V	4000
	Dielectric test voltage at ind.Freq.for 1 min	Kv	2
	Pollution degree		2
	Thermo-magnetic release characteristic		B,C,D
Mechanical features	Electrical life	t	4000
	Mechanical life	t	10000
	Protection degree		IP20
	Reference temperature for setting	ºC	30
	of thermal element
	Ambient temperature	ºC	-5~+40(Special application please refer to
	(with daily average ≤35ºC)		temperature compensation correction)
	Storage temperature	ºC	-25~+70
Installation	Terminal connection type		Cable/Pin-type busbar
	Terminal size top/bottom for cable	mm2	25
		AWG	18-3
	Therminal size top/bottom for busbar	mm2	25
		AWG	18-3

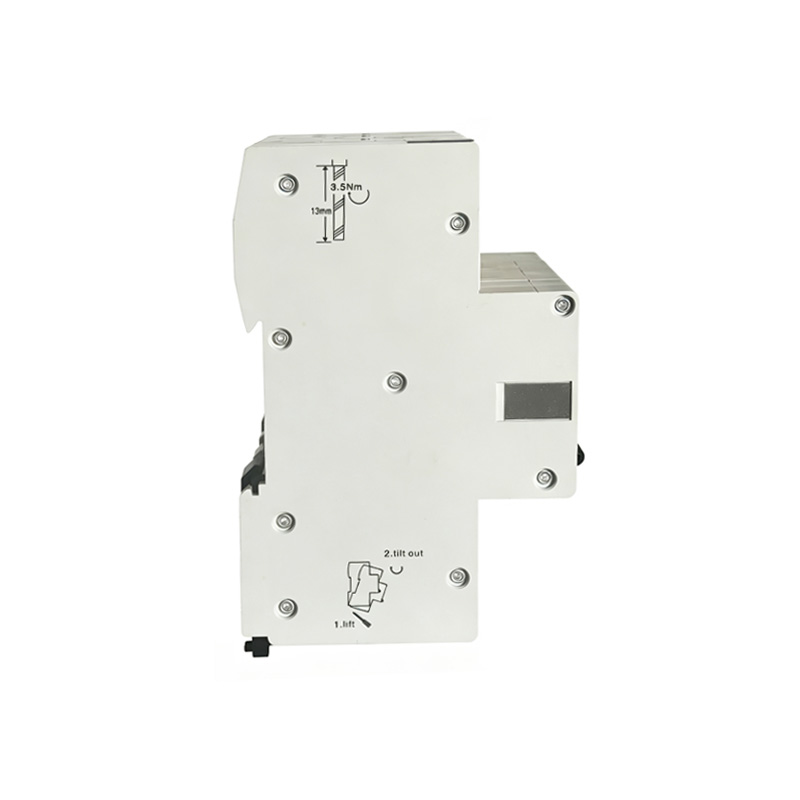

	Tightening torque	N*m	2
		In-lbs	18

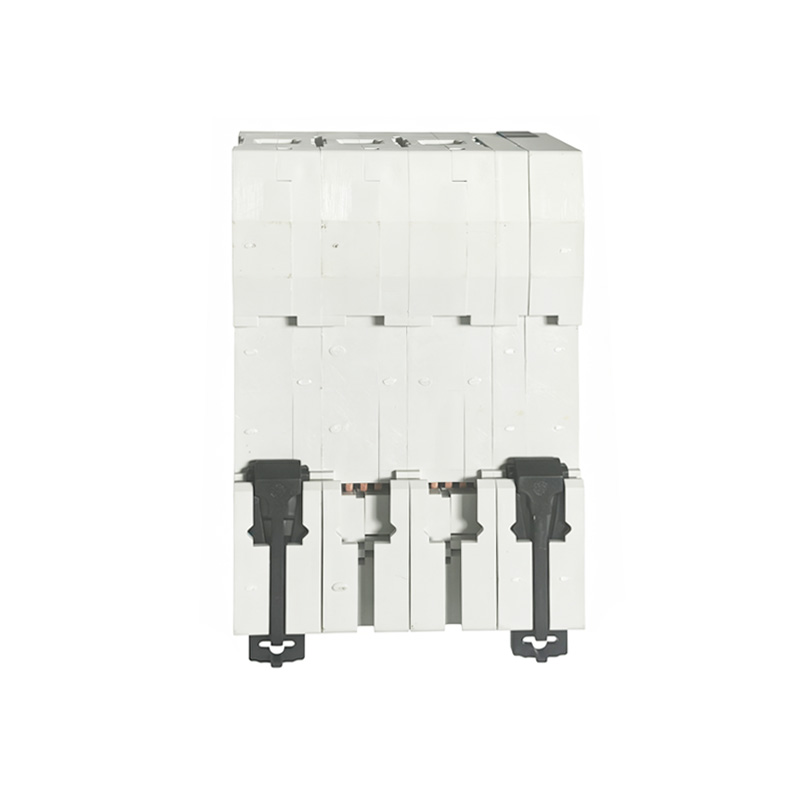

	Mounting		on DIN rail EN 60715(35mm)by means of fast clip device
	Connection		From top and bottom

The WiFi Smart Circuit Breaker is a circuit protection device with integrated Wi-Fi communication technology, which allows users to remotely control the switching status of a circuit anytime, anywhere via a smartphone or other smart device. This circuit breaker not only provides traditional overload and short-circuit protection, but also brings unprecedented convenience and flexibility to users through Wi-Fi connectivity.

Function Highlights

ST65LE-63  series WiFi Smart Circuit Breaker is a multi-function intelligent switch that integrates the functions of electricity metering,overload, short circuit, over and under voltage, leakage, over-temperature protection, remote opening and closing, timing,network communication and so on. It can be widely used in smart power management places such as commerce, agriculture,schools, hospitals, hotels, entertainment places, stations, cultural relics protection units, urban street lamp management andcontrol, and can also be widely used in energy consumption management in industrial and mining enterprises, office buildings and other places.STL7-100WF has the function RS485 and over or down voltage protection function.

Application

This WIFI intelligent recloser circuit breaker can be widely used in household, factories, sduent dormitroy, farmland, muicipal works and can intelliently remote control water pump, water heater, underfloor heating equiement, etc

Function

This  reclosing circuit breaker are suitable for 50Hz/60Hz, 230/400V 0~125A circuit which have the function such as overload protection, short-circuit protection and isolating protection. Meanwhile, this intelligent resclosing circuit breaker have the function as switched oof/on globally remote control by smart cell phone.
