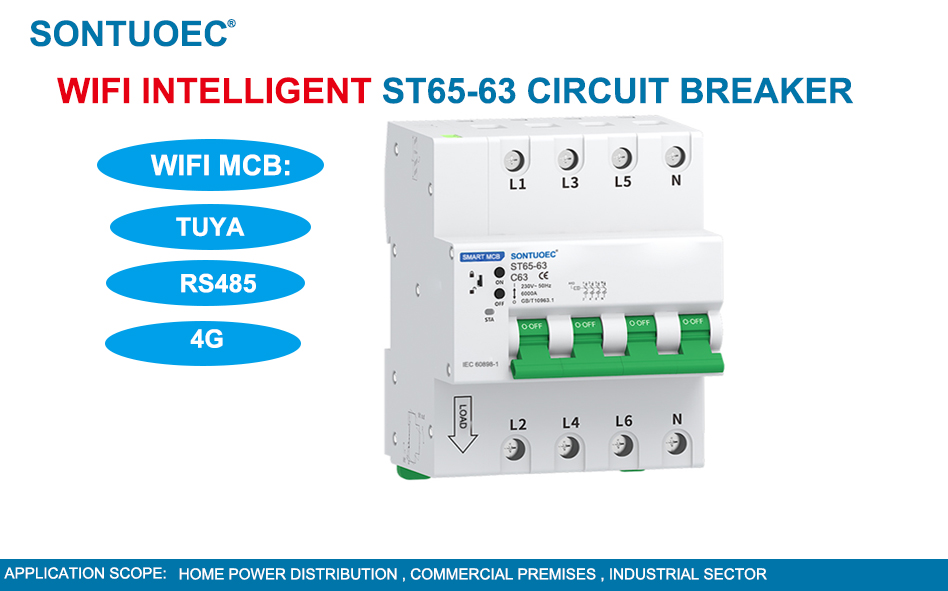

WiFi RS485 Multifunctional IoT Intelligent MCB RCBO Intelligent Micro Circuit Breaker

SONTUOEC are one of Chinese suppliers/ manufacturers specializing in the production of various small electrical appliances ST65-63 is a multifunctional intelligent switch that we produce that integrates the functions of electricity metering,overload, short circuit, over and under voltage, leakage, over-temperature protection, remote opening and closing, timing,network communication and so on. WiFi RS485 Multifunctional IoT Intelligent MCB RCBO Intelligent Micro Circuit Breaker can be widely used in smart power management places such as commerce, agriculture,schools, hospitals, hotels, entertainment places, stations, cultural relics protection units, urban street lamp management andcontrol, and can also be widely used in energy consumption management in industrial and mining enterprises, office buildings and other places.ST65-63 has the function RS485 and over or down voltage protection function.

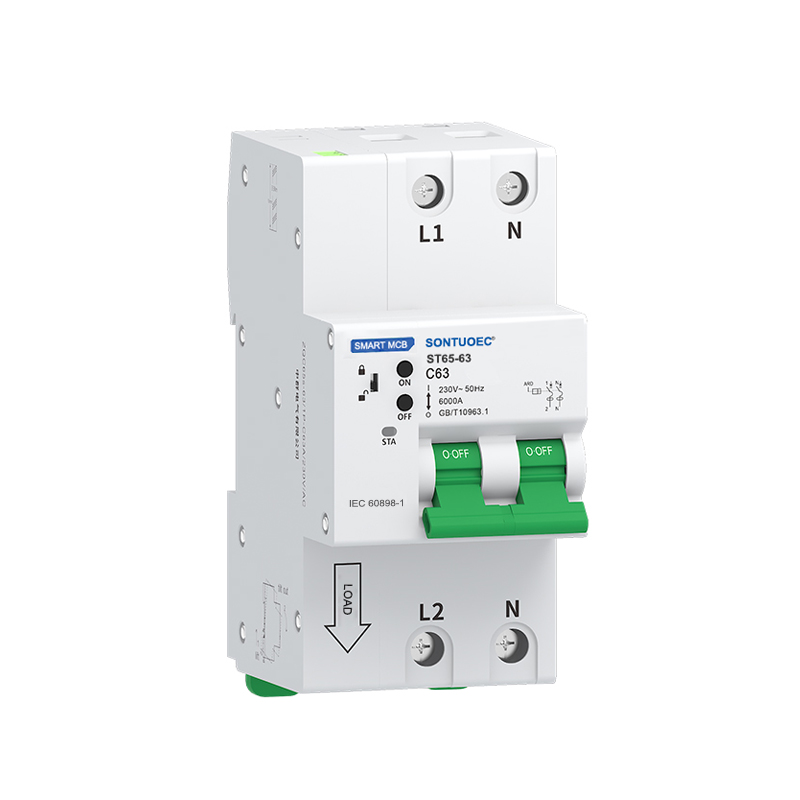

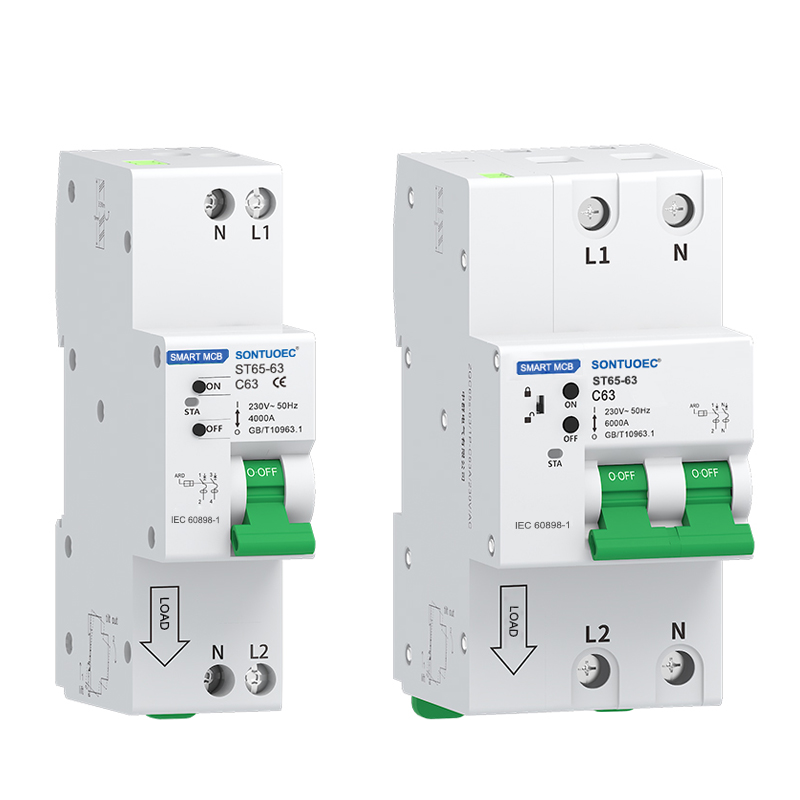

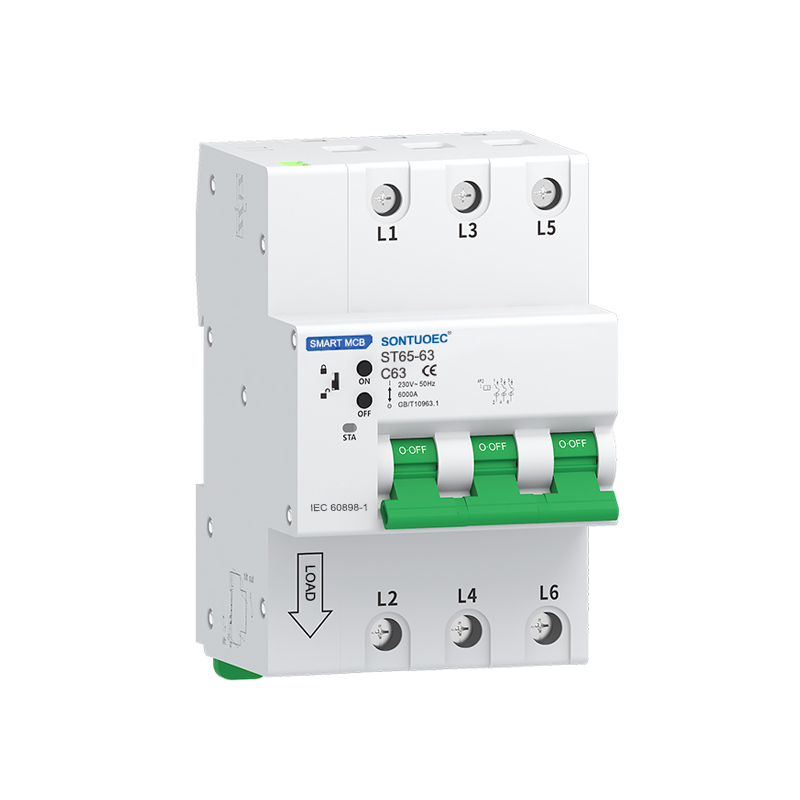

Model:ST65-63

Send Inquiry

Product Description

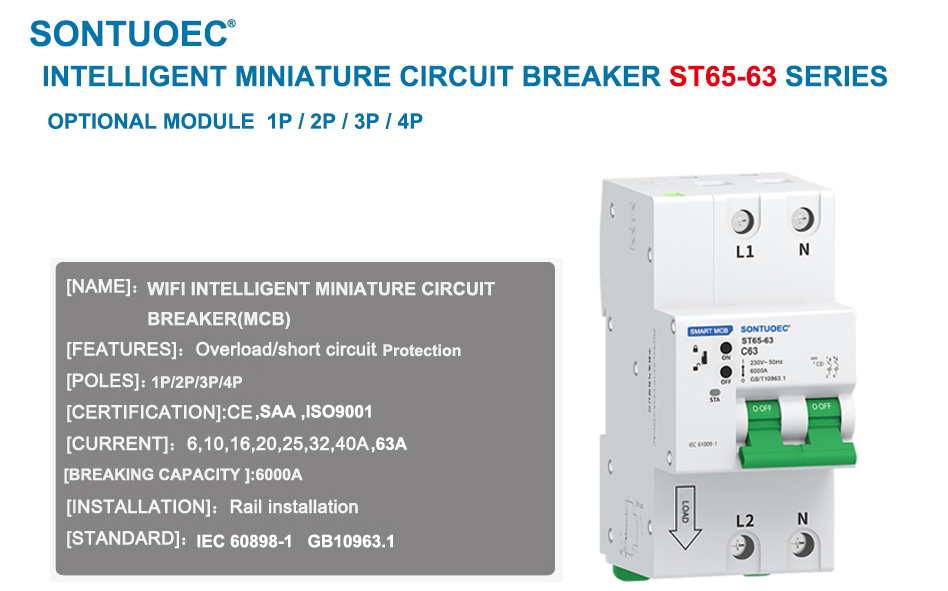

SPECIFICATIONS:

	GB10963.1
Instantaneous trip type	Type C (other types, can be customized)
Rated current	16A,20A,25A,32A,40A,50A,63A
Short-circuit breaking capacity	≥6KA
Short circuit protection	When the line is short-circuited, the circuit breaker is powered off for 0.01s
Overvoltage protection	When the line is over or under voltage, the circuit breaker will be cut
	off after 3S (can be set)
	Over / under voltage setting demand setting percentage value
Overload delay protection	According to the rated current of the circuit breaker, it meets the requirements
Overload delay protection	of GB10963.1 standard
Timing control	Can be set according to demand
View	Through the mobile phone APP, you can view the voltage, switch on and off status
Support Voice Control	Work with Amazon Alexa/Google Assistance/IFTTT
Manual automatic integrated control	The mobile phone APP can be automatically controlled, and can also be
Manual automatic integrated control	controlled by the push rod (handle);
communication method	Wireless WIFI

Application

This WiFi RS485 Multifunctional IoT Intelligent MCB RCBO Intelligent Micro Circuit Breaker can be widely used in household, factories, sduent dormitroy, farmland, muicipal works and can intelliently remote control water pump, water heater, underfloor heating equiement, etc

Function

This reclosing circuit breaker are suitable for 50Hz/60Hz, 230/400V 0~125A circuit which have the function such as overload protection, short-circuit protection and isolating protection. Meanwhile, this intelligent resclosing circuit breaker have the function as switched oof/on globally remote control by smart cell phone.

FeatureRemote control at anytime from anywherevoice control with Amazon Alexa and Google homeoverload and short circuit protectionover volatage and under voltage protectiontimely switch on/offtime delay switch on/offcycle switch on/off
