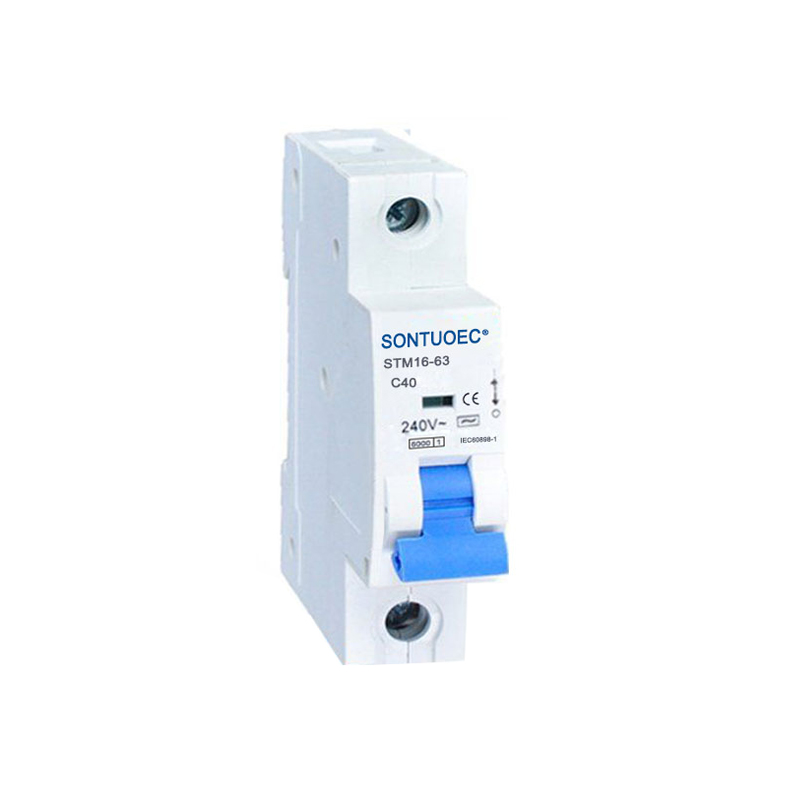

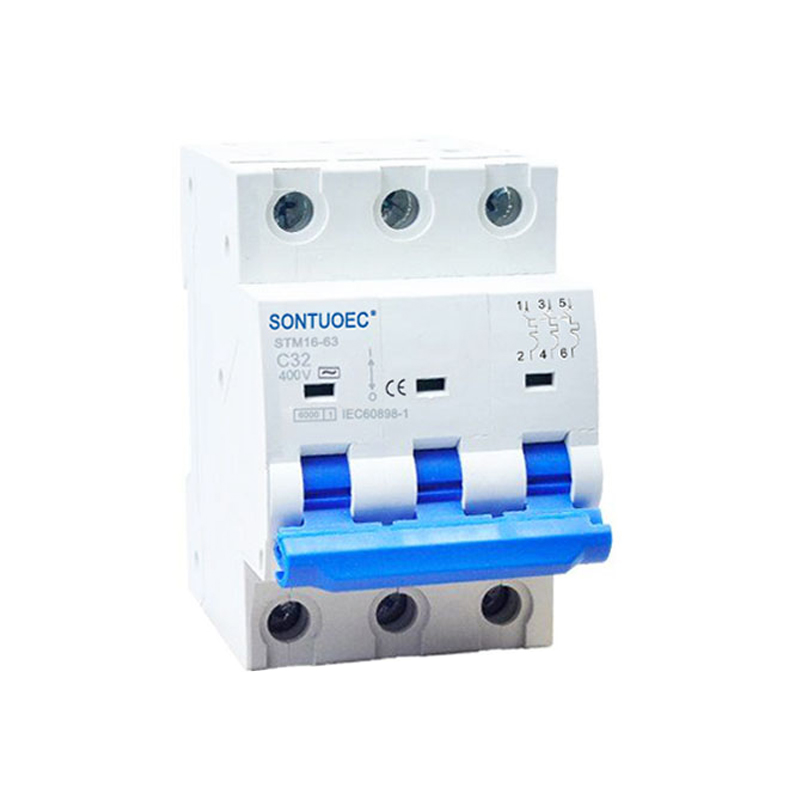

Stm16-63 Miniature Circuit Breaker 6ka 1p 2p 3p 4p 16A 230/400V MCB

SONTUOEC Stm16-63 Miniature Circuit Breaker 6ka 1p 2p 3p 4p 16A 230/400V MCB Series high breaking miniature circuit breaker has the features of structure advanced, performance reliable, breaking capacity high, appearance elegant and its shell and parts are made of material with impact resistance, strong flame-retardant feature. It is suitable to power system of AC 50/60Hz, rated voltage of 230/400V, and rated current up to 63A. It is mainly applied at office building, residence, for lighting, power distribution and overload and short circuit protection of equipment. Normally, it also can be used as the not frequent transfer of power system. It conforms to the standards IEC60898-1.

Model:STM16-63

Send Inquiry

Product Description

Specifications:

	Standard		IEC/EN 60898-1
Electrical features	Rated current In	A	1,2,4,6,10,16,20,25,32,40,50,63
	Poles	P	1P,2P,3P,4P
	Rated voltage Ue	V	AC 230, 400
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	3000, 4500, 6000
	Rated impulse withstand voltage(1.2/50)Uimp	V	4000
	Dielectric test voltage at ind.Freq.for 1 min	Kv	2
	Pollution degree		2
	Thermo-magnetic release characteristic		B,C,D
Mechanical features	Electrical life	t	4000
	Mechanical life	t	10000
	Protection degree		IP20
	Reference temperature for setting of thermal element	ºC	30
	Ambient temperature (with daily average ≤35ºC)	ºC	-5~+40(Special application please refer to temperature compensation correction)
	Storage temperature	ºC	-25~+70
Installation	Terminal connection type		Cable/Pin-type busbar
	Terminal size top/bottom for cable	mm²	25
	Terminal size top/bottom for cable	AWG	18-3
	Therminal size top/bottom for busbar	mm²	25
	Therminal size top/bottom for busbar	AWG	18-3
	Tightening torque	N^*m	2
	Tightening torque	In-lbs	18
	Mounting		on DIN rail EN 60715(35mm)by means of fast clip device
	Connection		From top and bottom

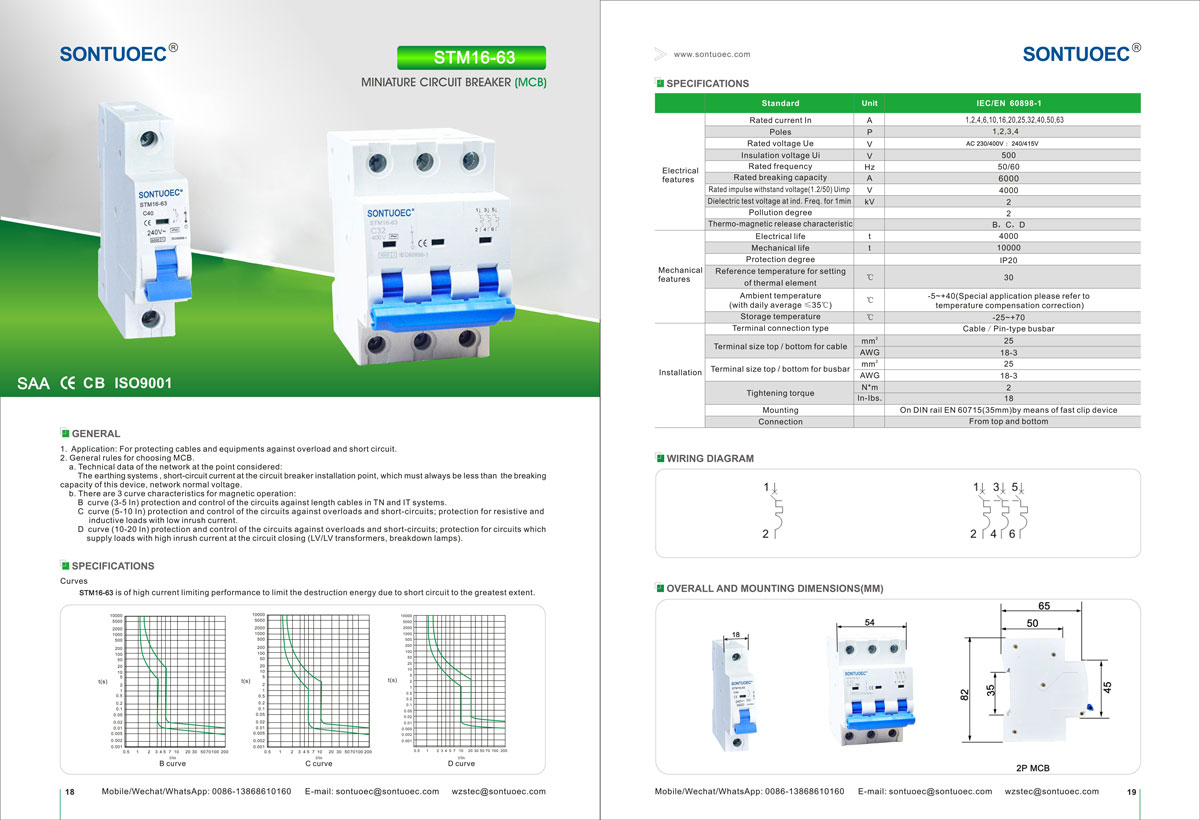

Stm16-63 Miniature Circuit Breaker 6ka 1p 2p 3p 4p 16A 230/400V MCB

*Technical data of the network at the point considered:

The earthing systems, short-circuit current at the circuit breaker installation point, which must always be less than the breaking

capacity of this device, network normal voltage.

*There are 3 curve characteristics for magnetic operation:

*B curve (3-5 In) protection and control of the circuits against length cables in TN and IT systems.

*C curve (5-10 In) protection and control of the circuits against overloads and short-circuits; protection for resistive and

inductive loads with low inrush current.

*D curve (10-20 In) protection and control of the circuits against overloads and short-circuits; protection for circuits which

supply loads with high inrush current at the circuit closing (LV/LV transformers, breakdown lamps).

Our Pros:

1.More than 20-year manufacturing experience

2.Competitive price

3.Continuance service and support

4.Good-after service

5.Quality reliability and long product life

FAQ

Q1. What advantages do you have?

A. We are the direct Manufacturer in Wenzhou China, and our team have more than 20 years experience in the field of developing, marketing & production to offer you the most competitive price and the best service.

Q2. How does your factory do regarding quality control?

A. All the products will be 100% checked before the shipment.

Q3. Which payment terms is available?

A. We accept TT, 30% deposit and 70% balance agaisnt copy of BL.

Q4. How's the delivery time ?

A. Usually it will take about 25 days for production.

Q5. What's your main product?

A. Circuit Breaker (MCB, RCCB/RCD, RCBO, ELCB, MCCB, ACB); Ac Contactor, Thermal Relay, Magnetic Starter; Isolator Switch, Changeover Switch, Push Button Switch, Voltage Protector, etc.

Q6. Could I put my logo on it?

A. If you have good quantity, it absolutely no problem to do OEM.

Q7. Do you provide samples? Is it free or extra?Do you provide samples ? is it free or extra ?

A. Yes, we could offer the samples for free charge, but the express charge need to be paid by the buyers.

Q8. What is your terms of payment?

A. We accept TT, 30% deposit and 70% balance agaisnt copy of BL.

Q9. What is your warranty policy?

A. 18 months.

Q10. Any certification of your company or product?

A. We have ISO 9001, CE, CB, SEMKO, SAA, TUV.
