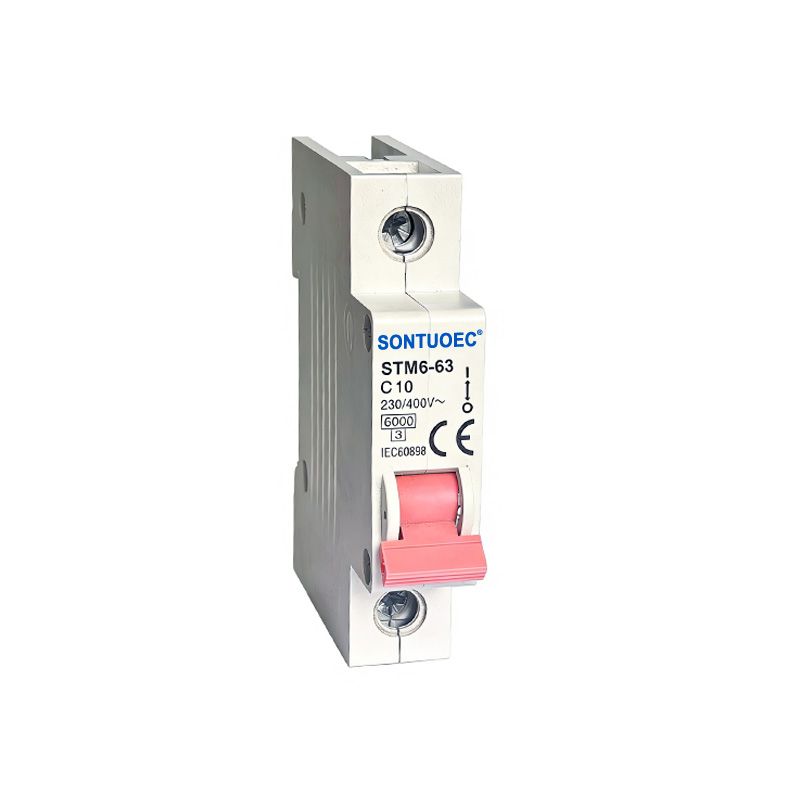

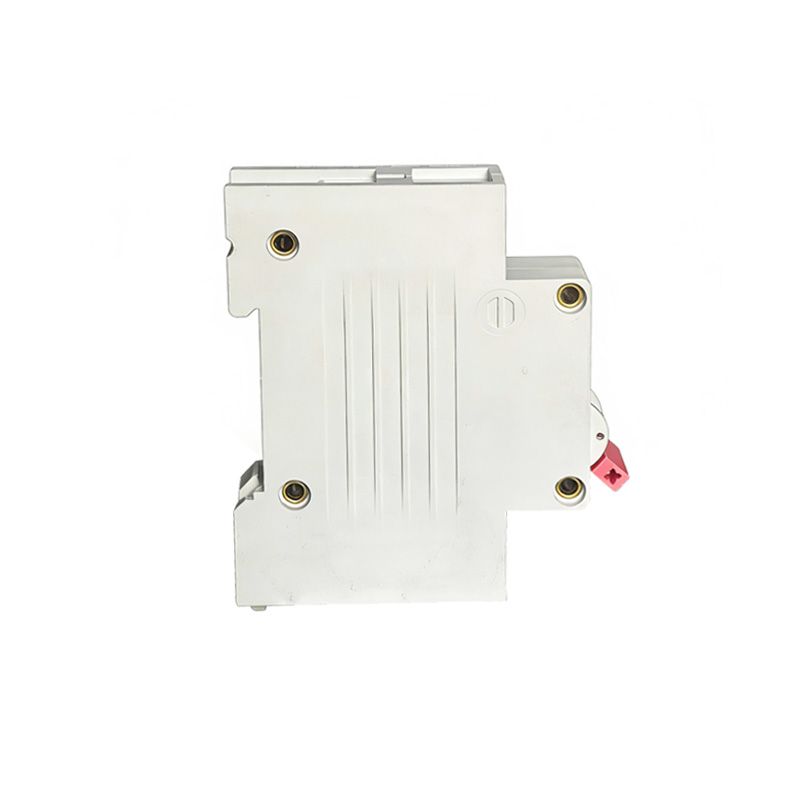

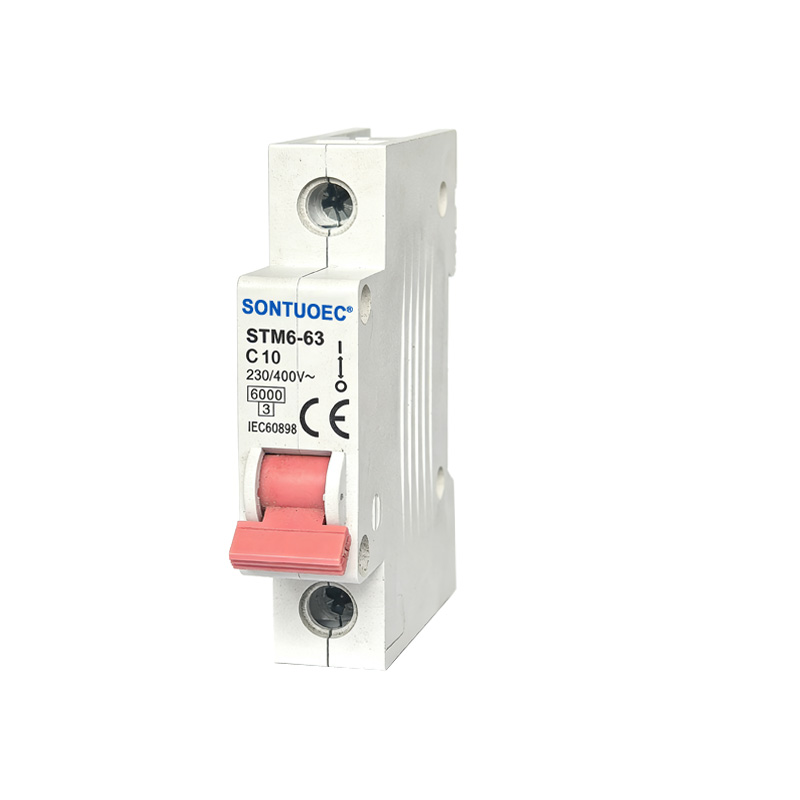

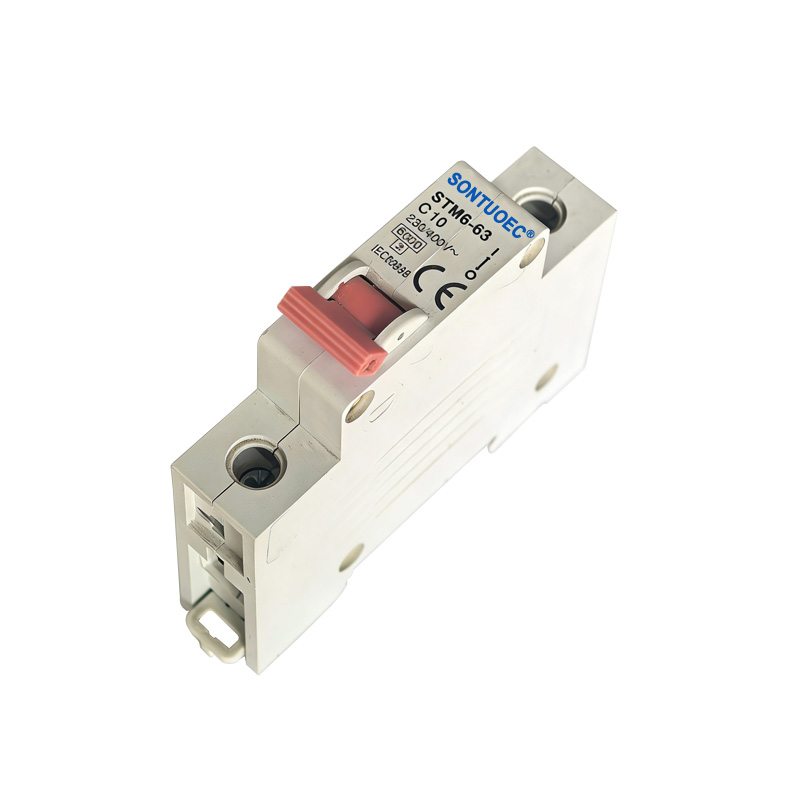

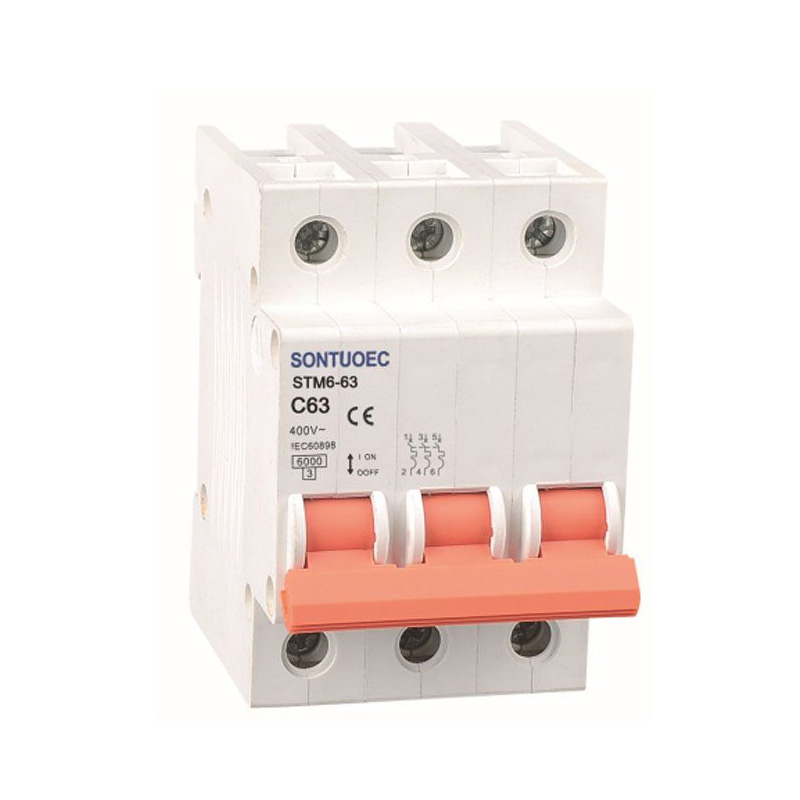

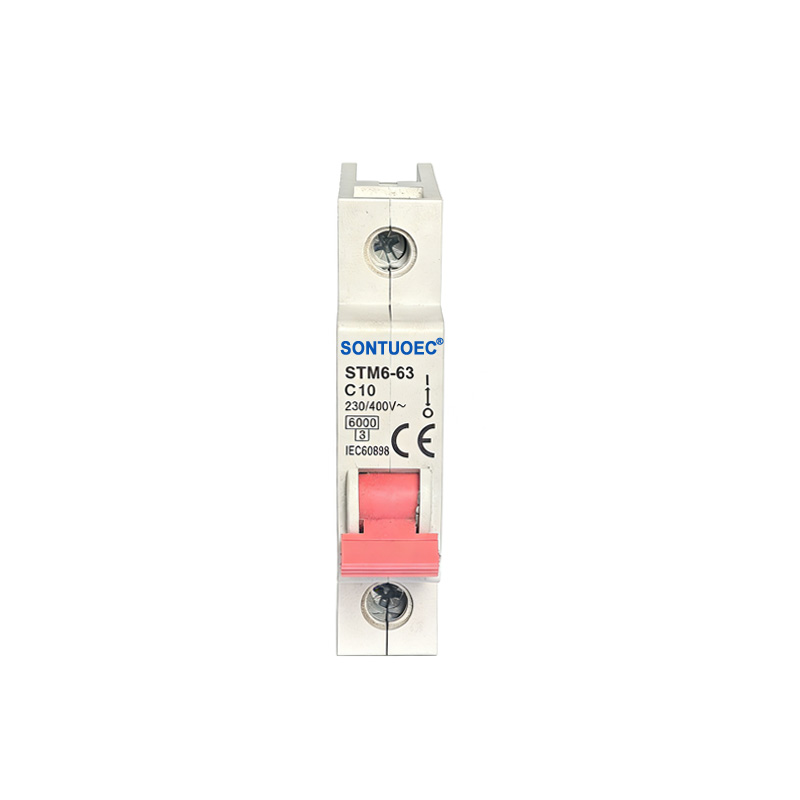

Sontuoec Stm6-63 6ka Miniature Circuit Breaker 230V MCB

SONTUOEC is one of the Chinese suppliers/manufacturers specializing in the production of various small electrical appliances STM6-63 series high breaking capacity mini circuit breaker is used in AC 50/60Hz, rated voltage of 230V 3, 4 poles 400V, rated current to 63A for overload and short-circuit protection as well as for unfrequented switching under normal case.It is used extensively for industry, commercial and household.This product conform to IEC60898 standard.

Model:STM6-63

Send Inquiry

Product Description

Specifications:

Place of Origin:	Liushi,ueqing,Wenzhou,Zhejiang, China
Brand Name:	SONTUOEC, STUOEC,SONTUNE,SONTUOC,WZSTEC
Product Name:	Miniature Circuit Breaker / MCB
Type:	Mini
Model Number:	STM6-63
Rated Short Circuit Capacity lcu (V)	B,C,D
Rated Voltage:	230V/400VAC
Rated Current:	1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 60,63A
Breaking Capacity:	6KA
Rated Frequency:	50/60Hz
Number of Poles:	1P, 2P, 3P,, 4P
Altitude:	≤2000m
Ambience Temperature:	-5~40ºC
Width:	18mm/Pole
Standard:	IEC60898, GB10963
Protection Type:	overload protection,short circuit protection
Tripping Type:	thermal type
Installment:	TH 35mm din rail
Wiring Capacity:	≤25mm²
Max Operation Frequency:	1A-32A, 240 40A-63A, 120
