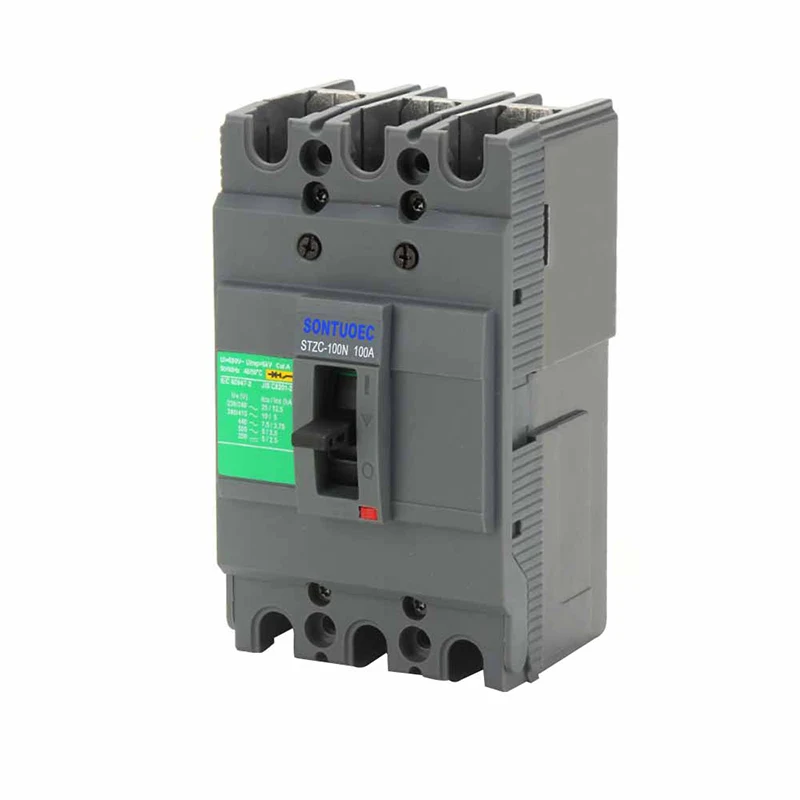

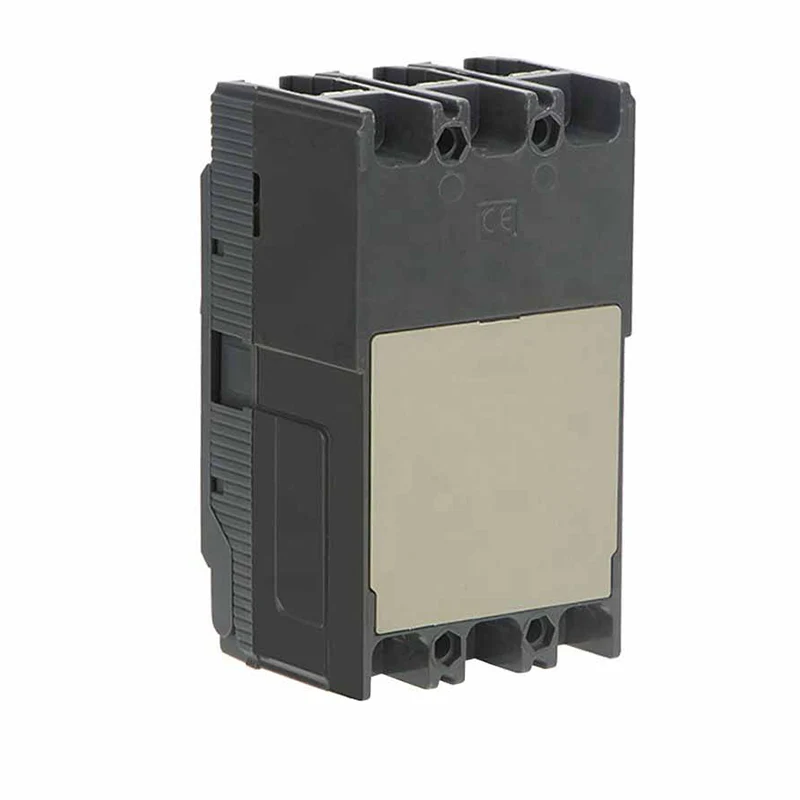

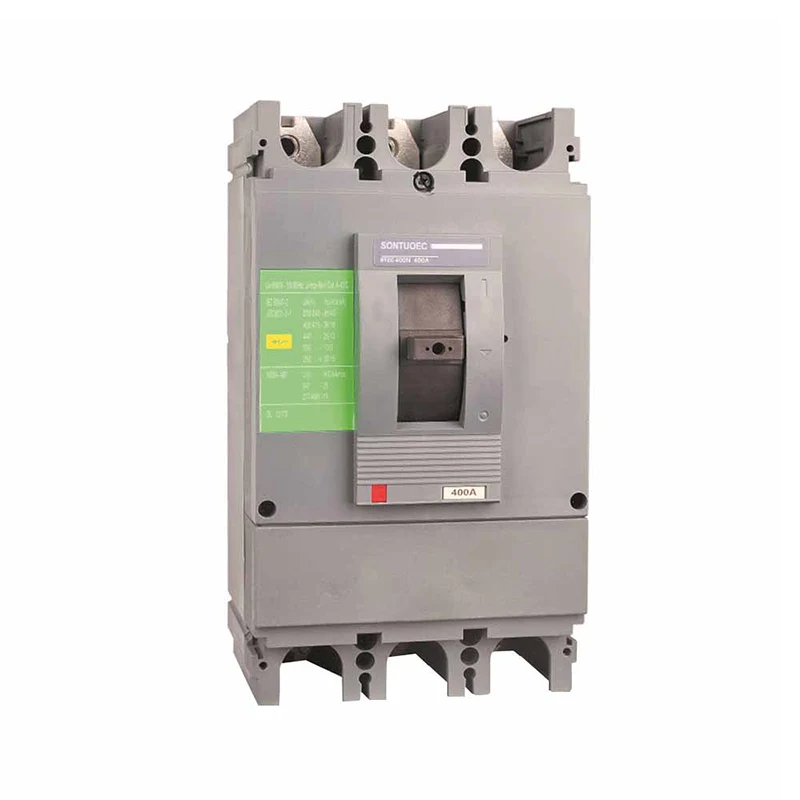

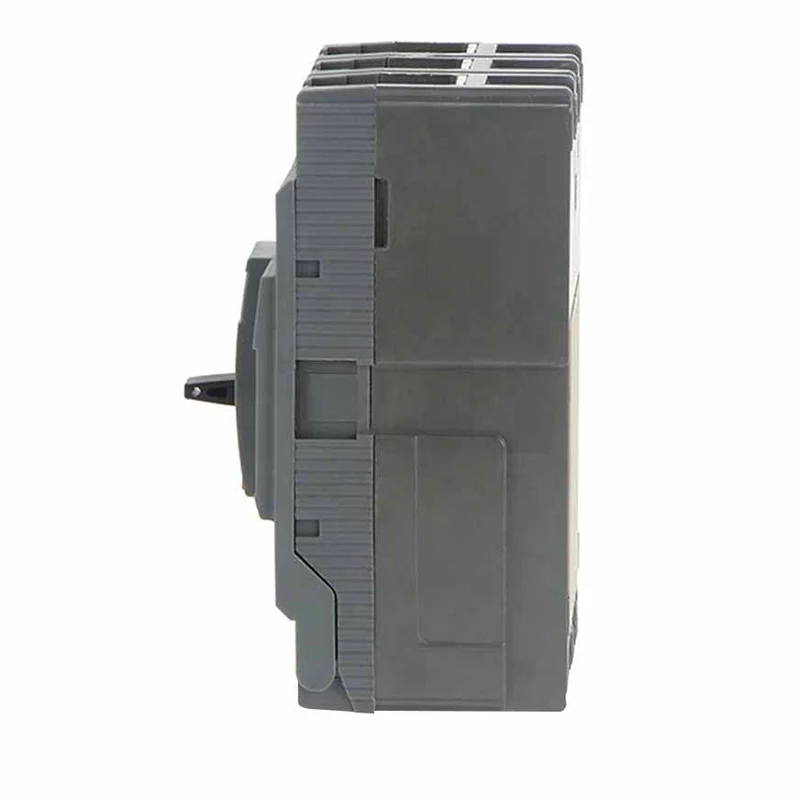

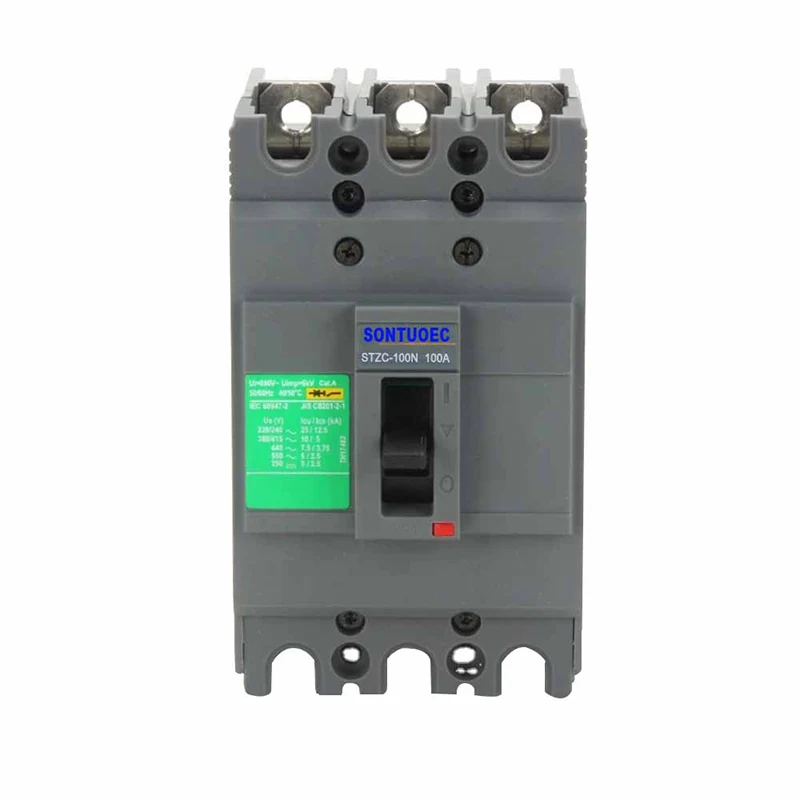

Solar System Molded Case Circuit Breaker

The solar system molded case circuit breaker uses high-strength plastic or metal materials to make the shell, and contains key components such as contacts, fuses and electromagnetic releases inside. It can quickly cut off the circuit when the current exceeds the rated value, thus preventing the electrical equipment in the solar system from being damaged due to overload or short circuit.

Model:STZC

Send Inquiry

Product Description

SPECIFICATIONS:

Type	Rated current(A)	Pole	Rated insulation voltage(V), Ui(V)	Rated voltage(V) Ue	Shor-Circuit Breaking Capacity Ics(kA)	Uitimate Shor Circuit Breaking Capacity Icu(kA)	Operation Life (times)
							Electrical/Mechanism

				AC
STZC-100	16,20,25,32,40,50,63,80,100	3P ,4P	690	220/230/240	13	25	1500	8500
				400/415	8	15
				440	5	10
				550	3	5
				250(DC)	3	5
STZC-160	100,125,160			220/230/240	13	25	1000	7000
				400/415	9	18
				440	8	15
				550	3	5
				250(DC)	3	5
STZC-250	160,180,200,225,250			220/230/240	13	25	1000	5000
				400/415	9	18
				440	8	15
				550	3	5
				250(DC)	3	5
STZC-400	250,300,315,400			220/230/240	43	85	1000	4000
				400/415	18	36
				440	18	36
				500	10	20
				550	8	15
STZC-630	400,500,600,630			220/230/240	43	85	1000	4000
				400/415	18	36
				440	18	36
				500	10	20
				550	8	15

Main Features

High-performance protection: the solar system molded case circuit breaker has excellent overload and short-circuit protection, which can ensure the stable operation of the solar system.

Strong adaptability: the circuit breaker is suitable for different sizes and types of solar energy systems, including off-grid systems and grid-connected systems.

Safe and Reliable: Adopting advanced thermal magnetic protection technology, it can quickly cut off the circuit when a fault occurs, preventing fire and other safety accidents.

Easy to install and maintain: compact structure, easy to install, while providing easy maintenance design, such as removable contacts etc.

SEZC-100 series of MCCB are used in distribution network of AC 50/60Hz, rated operational voltage 440V and rated current from 15A to 630A. It is used for distributing power and protecting circuit, power and electrical equipment from overload and short circuit damage, which improve the reliability and continuity of power supply.

Technical Specifications

Technical specifications for solar system molded case circuit breakers vary by brand and model, but typically include key parameters such as rated current, rated voltage, and breaking capacity. For example, certain models of circuit breakers may have a rated current range of 63-125A and a rated voltage of DC500V. When selecting a circuit breaker, it should be matched to the actual needs of the solar system.
