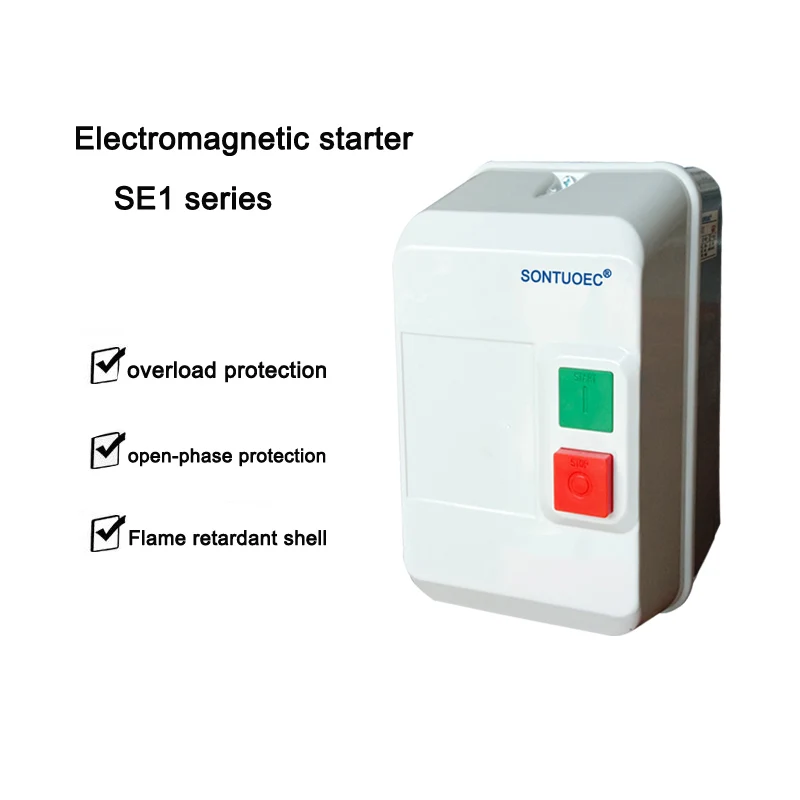

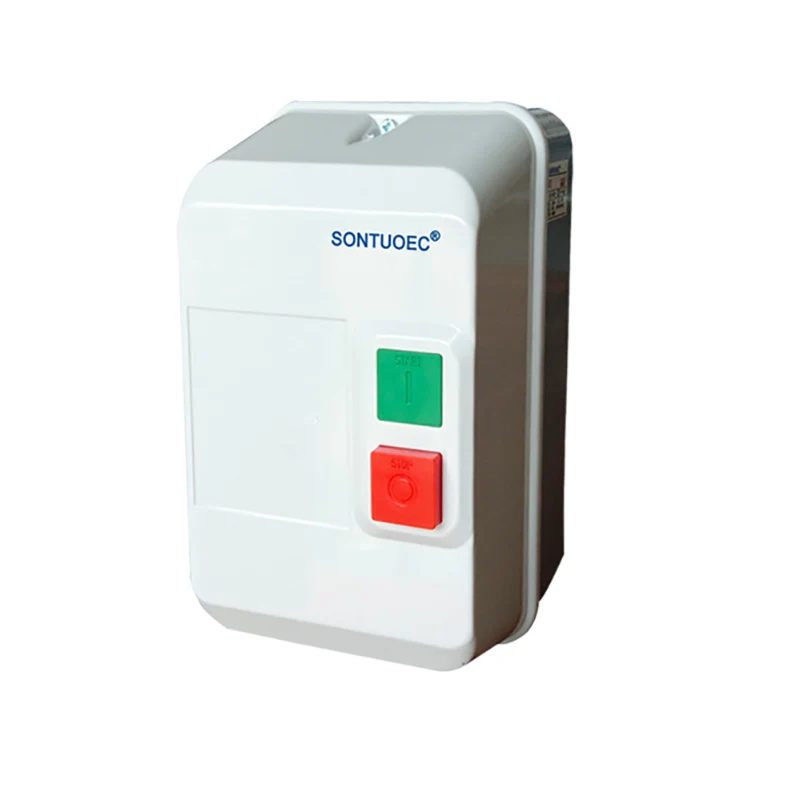

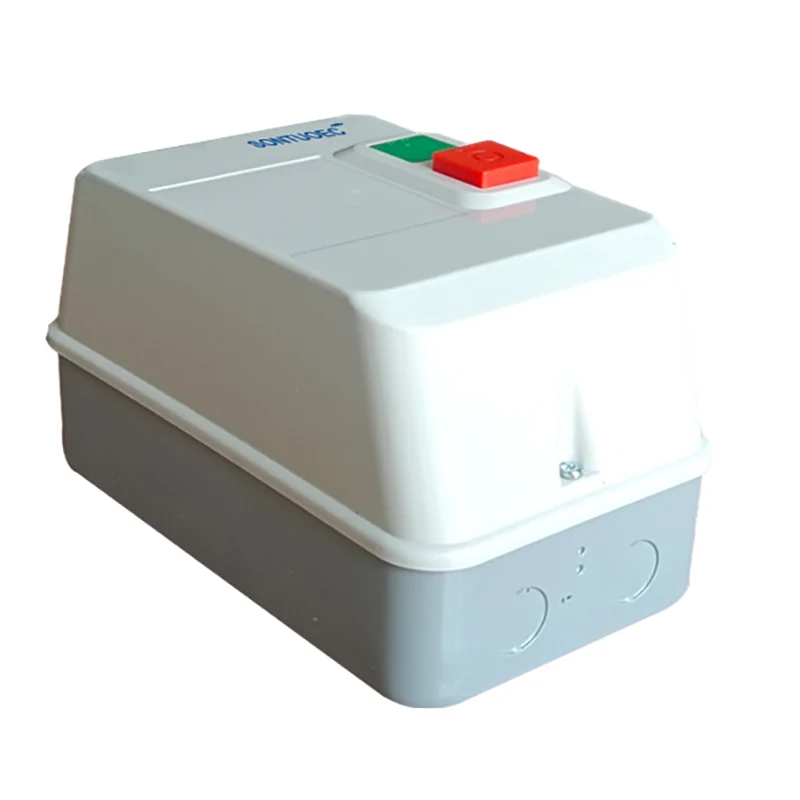

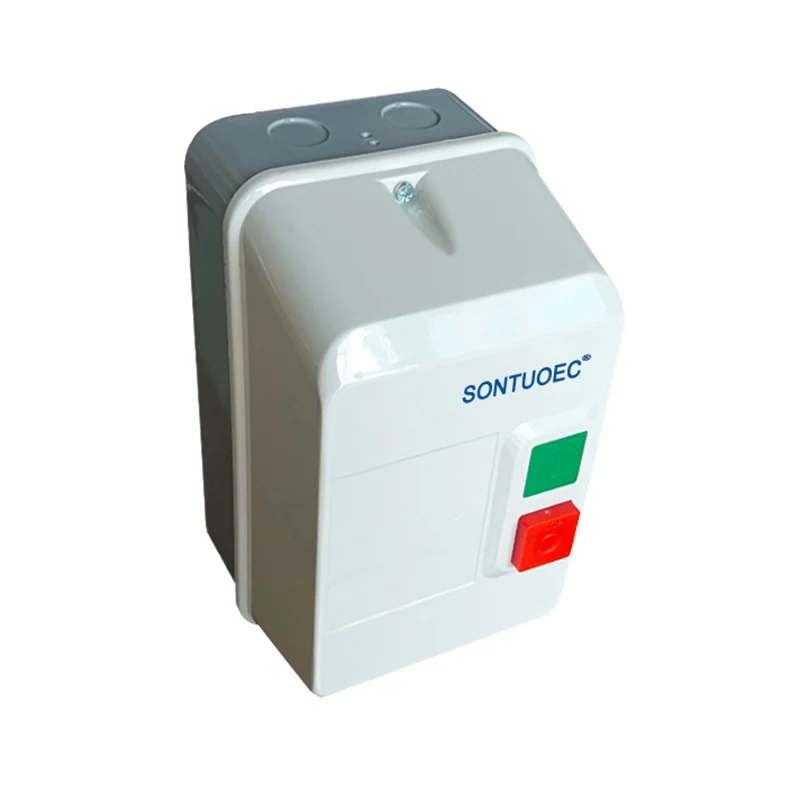

Magnetic Starter(DOL)the motor, i.e., a magnetic switch is utilized to control the starting and stopping of the motor (or motors). Magnetic switches play a key role here by controlling the on-off of the circuit according to changes in the external magnetic field, thus realizing the control of the motor.

Send Inquiry

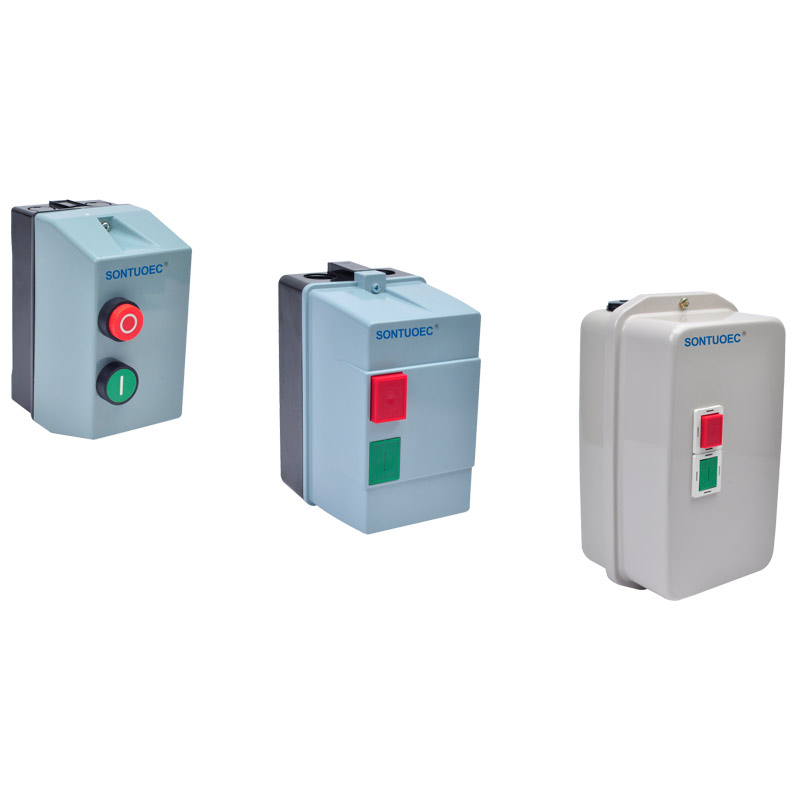

Product Description
Specifications

Product mode NO.and specificatiol

SLE1-09 and 12 Double in sulated,protected tolP429(3)or,F659(4)
Enclosure SLE1-18 and 25 Double in sulated,protected tolP427(3)or,F5577(4)
SLE1-32 and 95 Matal,lP65 to 559
Control(2 push buttons moufited on
enclosure cover)
SLE1-32 and 95 1 Green start button ‘1’ ,1Red stop/Teset buttion “o ”
Connections SLE1-32 and 95 Electricol power and control recircuit connections


Main Technical Parameters:

Type SLE1-9 SLE1-12 SLE1-18 SLE1-25 SLE1-32 SLE1-40 SLE1-50 SLE1-65 SLE1-80 SLE1-95
KW/HP(AC-3) Reted power(AC-3)
IEC60947-4
220V 2.2/3 3/4 4/5.5 5.5/7.5 7.5/10 11/5 15/20 18.5/25 22/35 25/35
380V 4/5.5 5.5/7.5 7.5/10 11/15 15/20 18.5/25 22/30 30/40 37/50 45/60
Reted current(AC-3)
GB14048.4
220V 9 12 15 21 26 36 52 63 75 86
380V 9 12 16 21 25 37 43 59 72 85
Reted heating current(A) 25 32 40 50 60 80 125
Reted insutaled volage(V)                                                                           660
Auxicary contact
AC-15
Contact standard 1NO 1NO+1NC
Reted current(A) 220V 1.6
380V 0.95
Suitabie Thermal Relays LR2D-1305/1314
(0.63~1.0/7~10)
LR2D-1316
(9~13)
LR2D-1321
(12~18)
LR2D-1322
(17~25)
LR2D-1353
(23~32)
LR2D-3355
(30~40)
LR2D-3359
(48~65)
LR2D-3361
(55~70)
LR2D-3363
(63~80)
LR2D-3365
(80~93)
Enclosure rating                 lP65


Principle of operation

The operating principle of a magnetic switch starter motor is mainly based on the influence of a magnetic field and the working principle of a DC motor. When an external magnetic field comes close to a magnetic switch, it triggers a magnetic sensing element (e.g., a reed) inside the switch, causing it to close or break contacts, thus controlling the opening and closing of the circuit. Once the circuit is closed, current flows through the motor, causing it to start rotating. DC motors, on the other hand, work on the principle that an energized conductor moves in a magnetic field by the action of an electromagnetic force.


Main Components

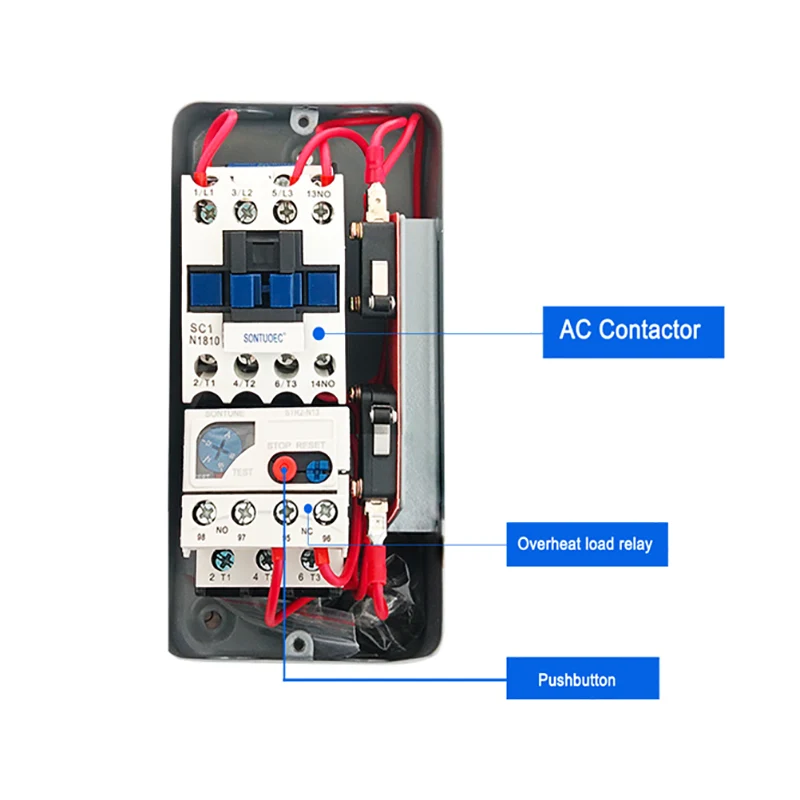

Magnetic switch: usually consists of a magnetic sensing element and a trigger device, used to detect external magnetic fields and control the on/off of a circuit.

Electric motor: A device that converts electrical energy into mechanical energy and drives various devices through rotation.

Control circuit: Used to receive external signals and control the working status of magnetic switch and motor according to the signals.
