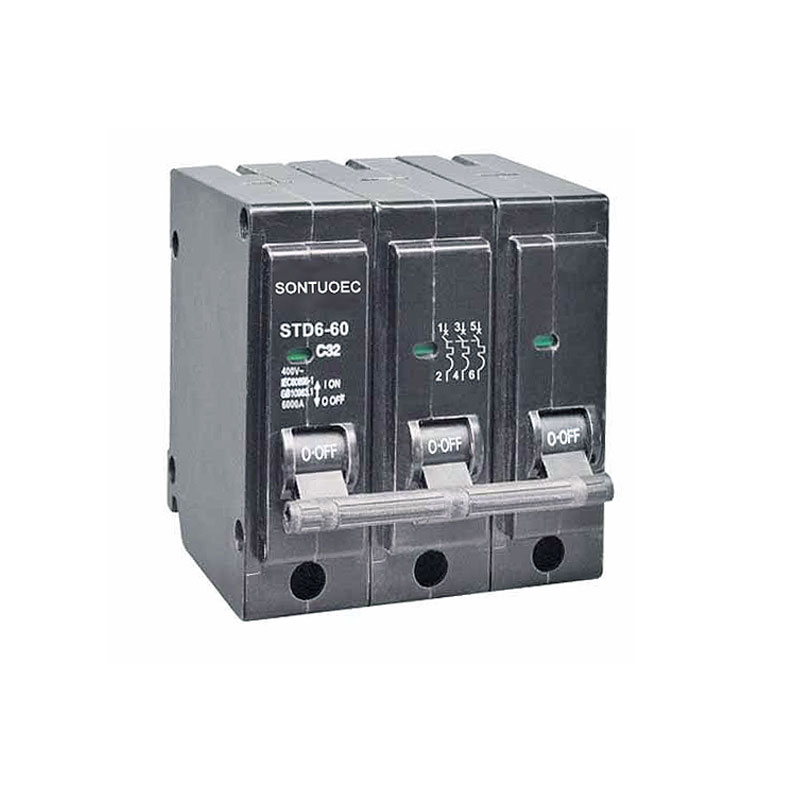

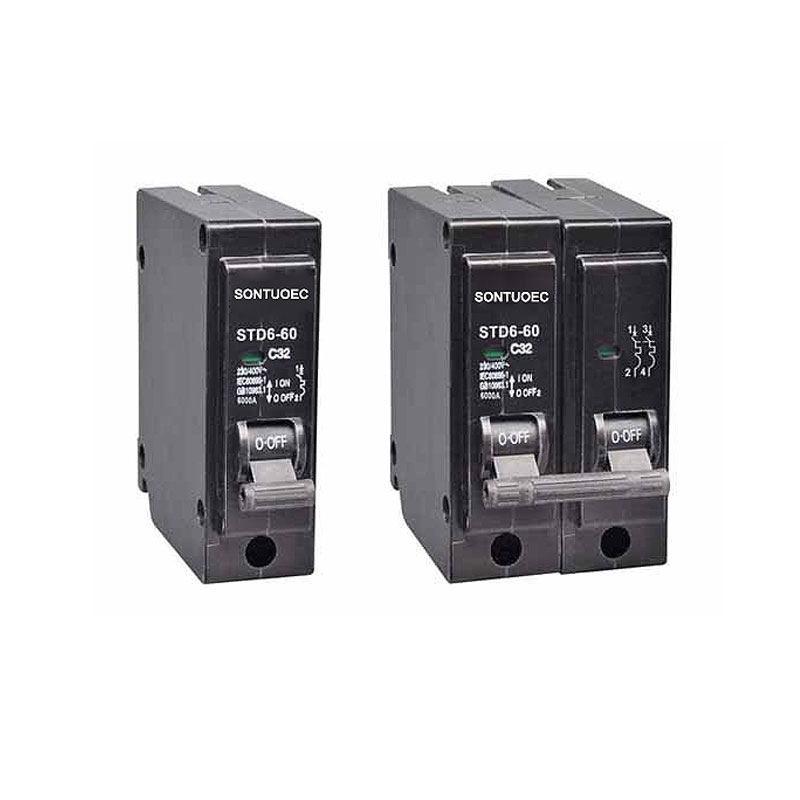

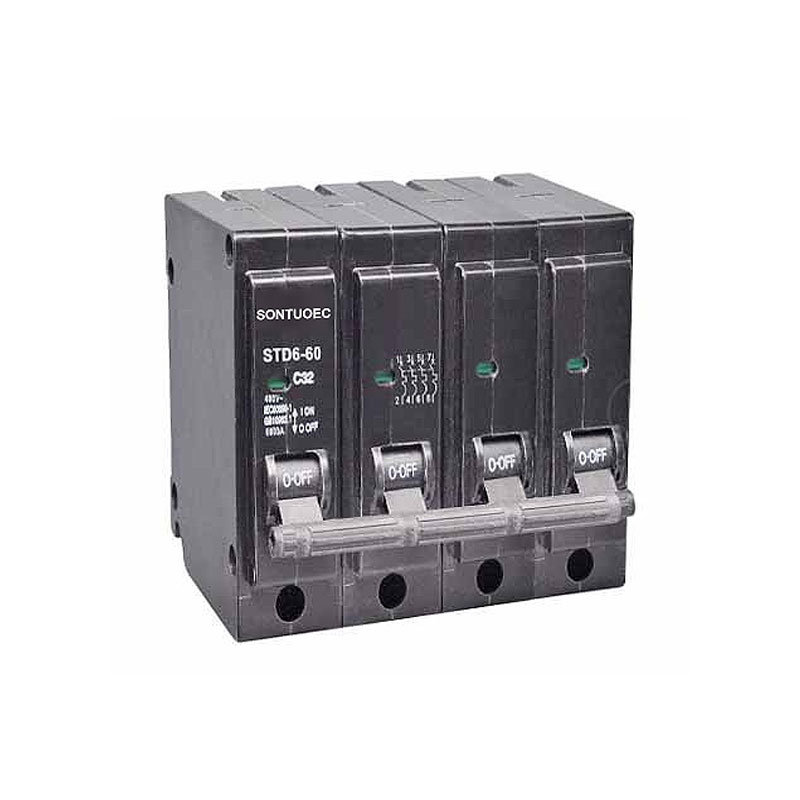

Hot Sale Bh Safety Mini Circuit Breaker MCB Price 100A

SONTUOEC is one of the Chinese suppliers/manufacturers specializing in the production of various small electrical appliances STD6-60 seriesn plug in type circuit breaker and is for overload & short circuit protection which used in residential and industrial distribution system.Max rated current up to 63A

Model:STD6-60

Send Inquiry

Product Description

parameter:

Product Features:	*Material: anti-flame, copper
*Model and Instation: THQL plug-in ;THQC Din Rail instation( Southern America )	*Circumstance Temp.: -25 to 40 degress
*Current: 15A 20A 25A 30A 40A 50A 60A 75A 80A 90A 100A	*Electrical Life: 6000 operations
*Voltage: AC 230V/400V	*Mechanical Life: 20000 operations
*Frequency: 50/60HZ	*Production Degree: IP20
*Endurance: >4000	*Body Color: white
*Breaking Capacity: 10KA(110V); 5KA(240V/440V)

Characteristics:

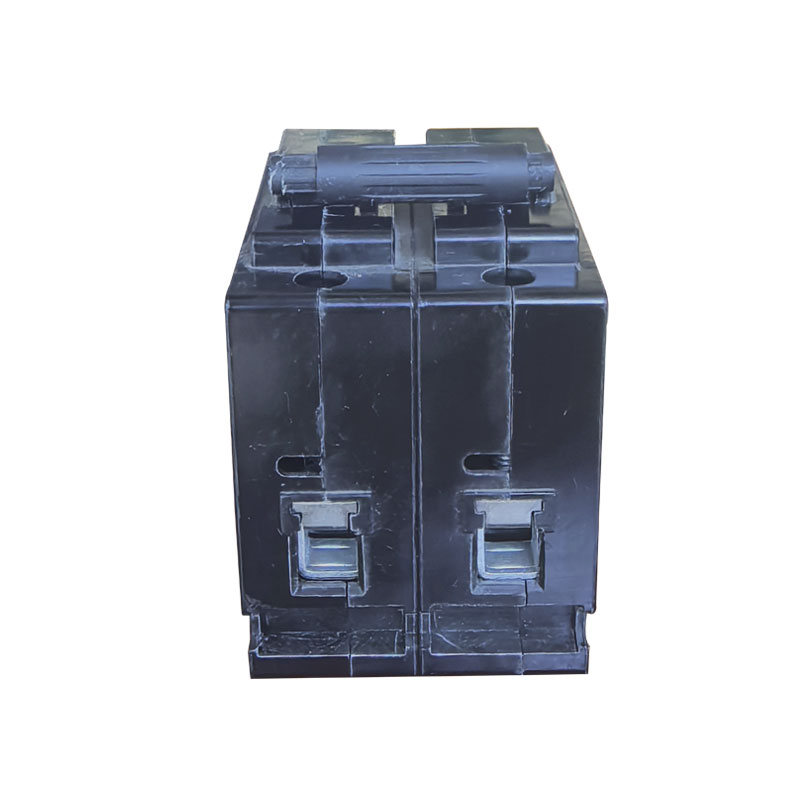

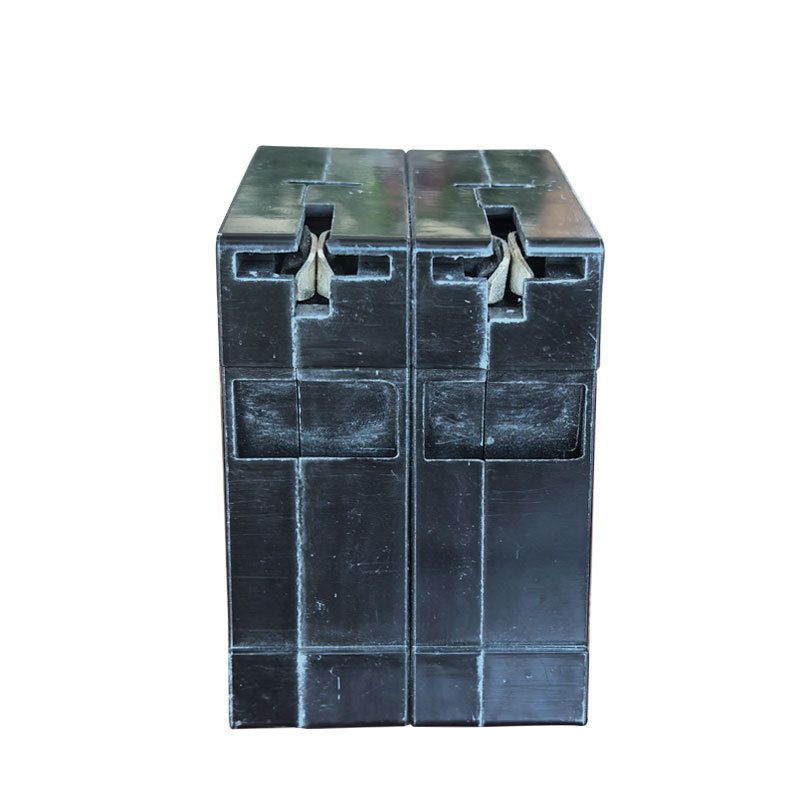

Hot Sale Bh Safety Mini Circuit Breaker MCB Price 100A Copper stabs, tin-plated for corrosion resistance, make the connection reliable and permanent; Heat-resistant thermoset cases and covers add stability and structural rigidity; Trip are easy to spot because handles trip to the center position; The dedicated calibration screw is cemented(not simply papered over) to prevent shifting, the result is stable calibration for optimum trip performance. The item is installed into plug-in type mounting base.
