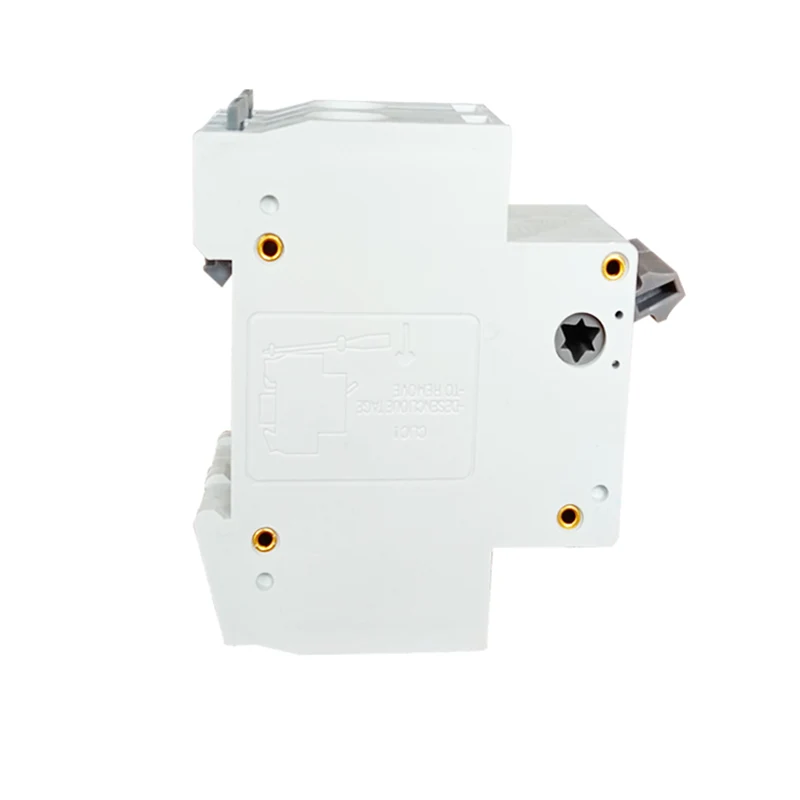

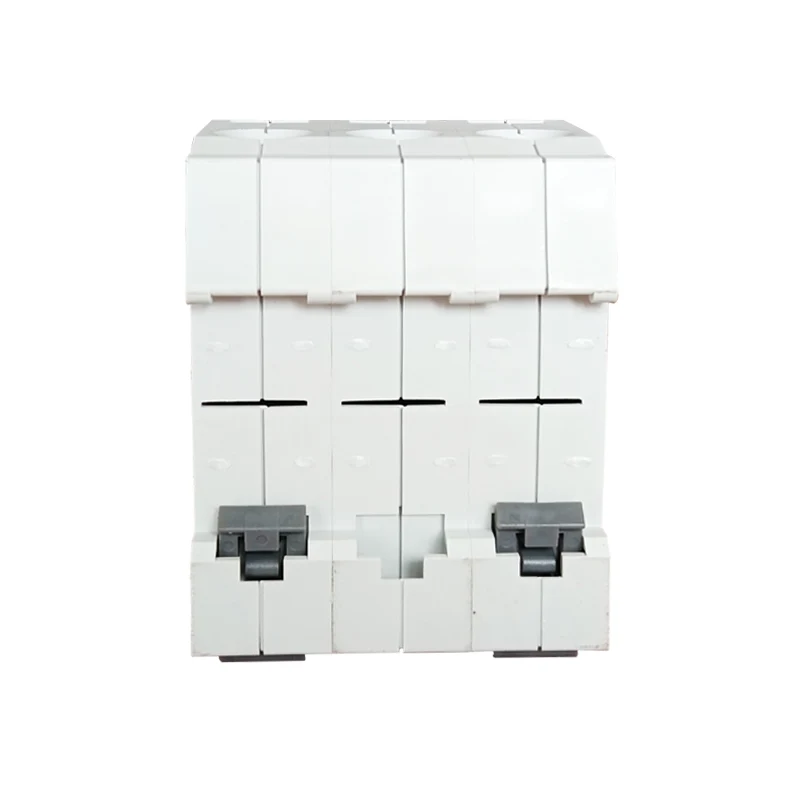

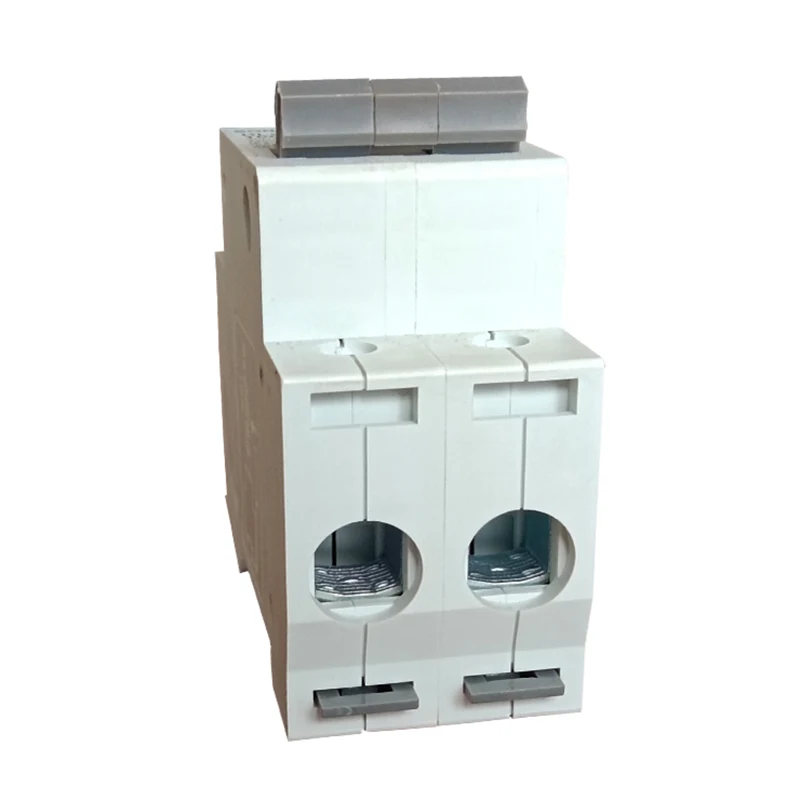

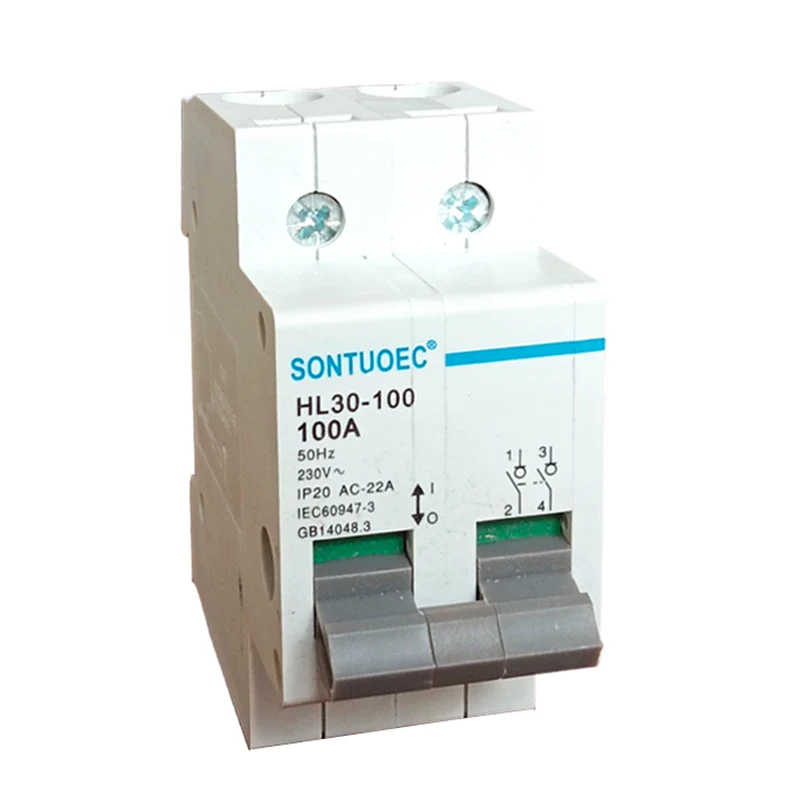

HL30-100 Isolator Switch

SONTUOEC is a supplier and wholesaler of HL30-100 Isolator Switch with competitive quality and price in China.

Send Inquiry

Product Description

Product Name	HL-30 Series Isolator Switch
Pole	1P 2P 3P 4P
Rated Current	16,25A ,40A, 63A, 80A ,100A, 125A
Rated Voltage	1P:AC230V 2P,3P.4P:AC400V
Insulation Voltage Ui	690V
Rated Impulse Withstand Voltage(1.2/50) Uimp	6KV
Rated short circuit withstand current Icw	12le/1s
Rated short circuit making capacity Icm	20le/0.1s
Rated making and breaking capacity	3Ie,1.05Ue,COSφ=0.8
Use category	AC-21B,AC-22A
Electrical Life	1500
Mechanical Life	8500
Pollution Degree	3
Storage Temperature	-35ºC~ +70ºC
Installation altitude	<2000m
Maximum wiring capacity(nm²)	16(20A~63A) 50(80A~125A)
Maximum limit torque	2.0(20A~63A) 3.5(80A~125A)

Principle of operation

The principle of operation of HL30-100 Isolator Switch is relatively simple. It contains one or more contacts that can be opened or closed when the switch is operated. When the contacts are closed, the cells in the battery pack are connected, allowing current to pass through. When the contacts are open, the connection between the cells is broken and current cannot flow.

Application Scenarios

1P, 2P, 3P, 4P Micro Switch Disconnector (MSD). When the HL30-100 Isolator Switch is opened, there is insulation distance between the contacts and obvious disconnect mark as per station requirement. It can be used as main switch or to open or close the circuit.
