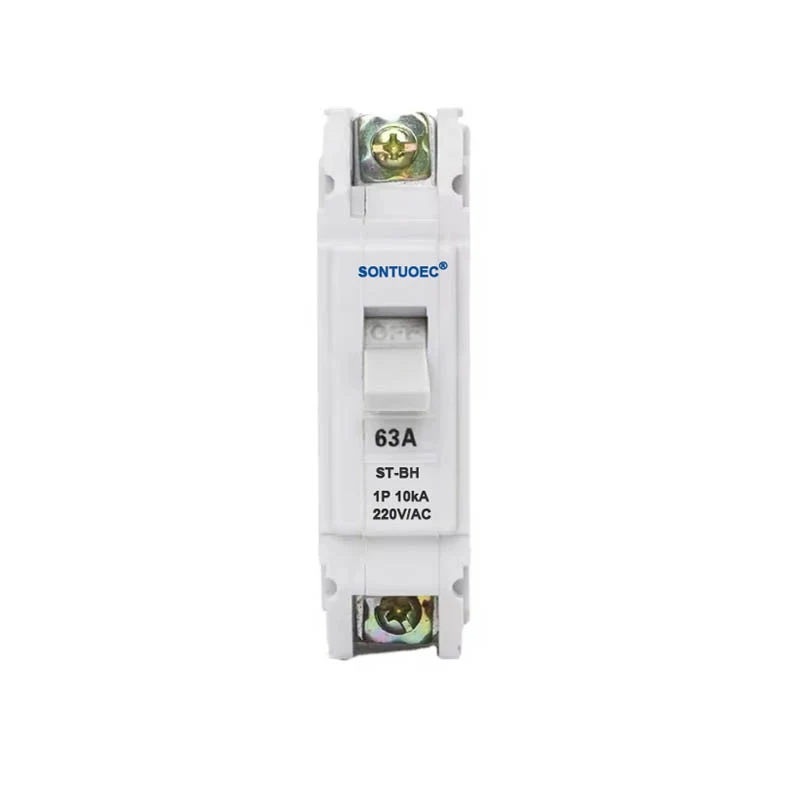

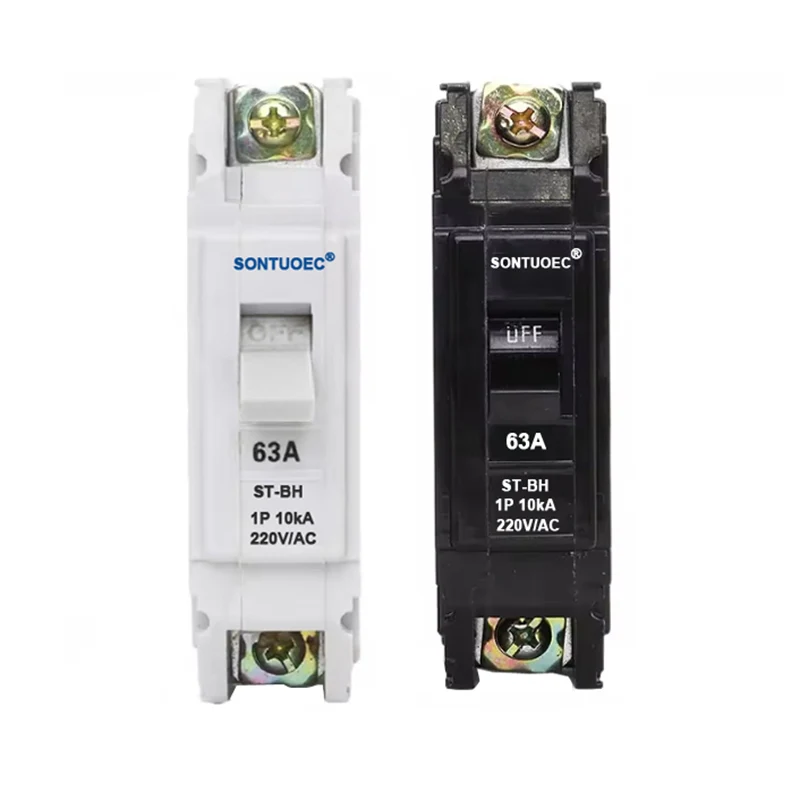

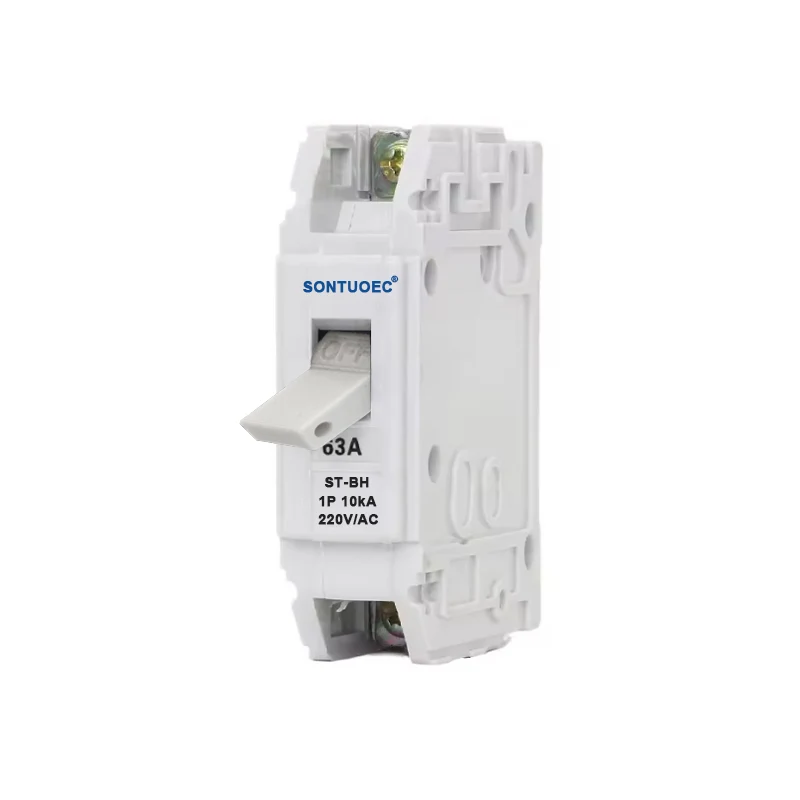

High Breaking Capacity MCB 10KA

High Breaking Capacity MCB 10KA is characterized by compact structure, beautiful appearance, excellent performance and high breaking capacity, etc. It is widely used in construction, industry and other places where circuit protection is required.

Model:ST-BH

Send Inquiry

Product Description

Model	ST-BH
Standard	IEC60898-1; IEC60947-2
Pole	1P,2P,3P,4P
Tripping Curve	B,C,D
Rated Short-circuit capacity(Icn)	3KA,4.5KA,6KA,10KA
Rated Current(In)	1,2,4,6,10,16,20,25,32,40,50,63A
Rated Voltage(Un)	10KA(120V) 10KA(230/400V)
Magnetic releases	B curve: between 3In and 5 In C curve: between 5In and 10In D curve: between 10In and 14In
Electro-mechanical endurance	over 6000 cycles

Main Characteristics

High breaking capacity: The circuit breaker has a high breaking capacity of 10KA, which can effectively cut off short circuit current and protect the safety of circuits and equipment.

Various specifications: Different pole numbers (such as 1P, 2P, 3P, 4P) and rated currents (such as 6A, 10A, 16A, 20A, etc. up to 63A) are available to meet the protection needs of different circuits.

Convenient installation: Adopt standard DIN rail mounting, convenient and space-saving.

Safety protection: with overload protection, short circuit protection and other functions to ensure the safe operation of the circuit and equipment.

Precautions

When selecting and using the high breaking capacity 10KA miniature circuit breaker MCB, the appropriate specification and model should be selected according to the actual circuit protection requirements.

The installation should follow the relevant electrical installation codes and standards to ensure the proper installation and use of the circuit breaker.

Regularly inspect and maintain the circuit breaker to ensure its normal operation and reliability.
