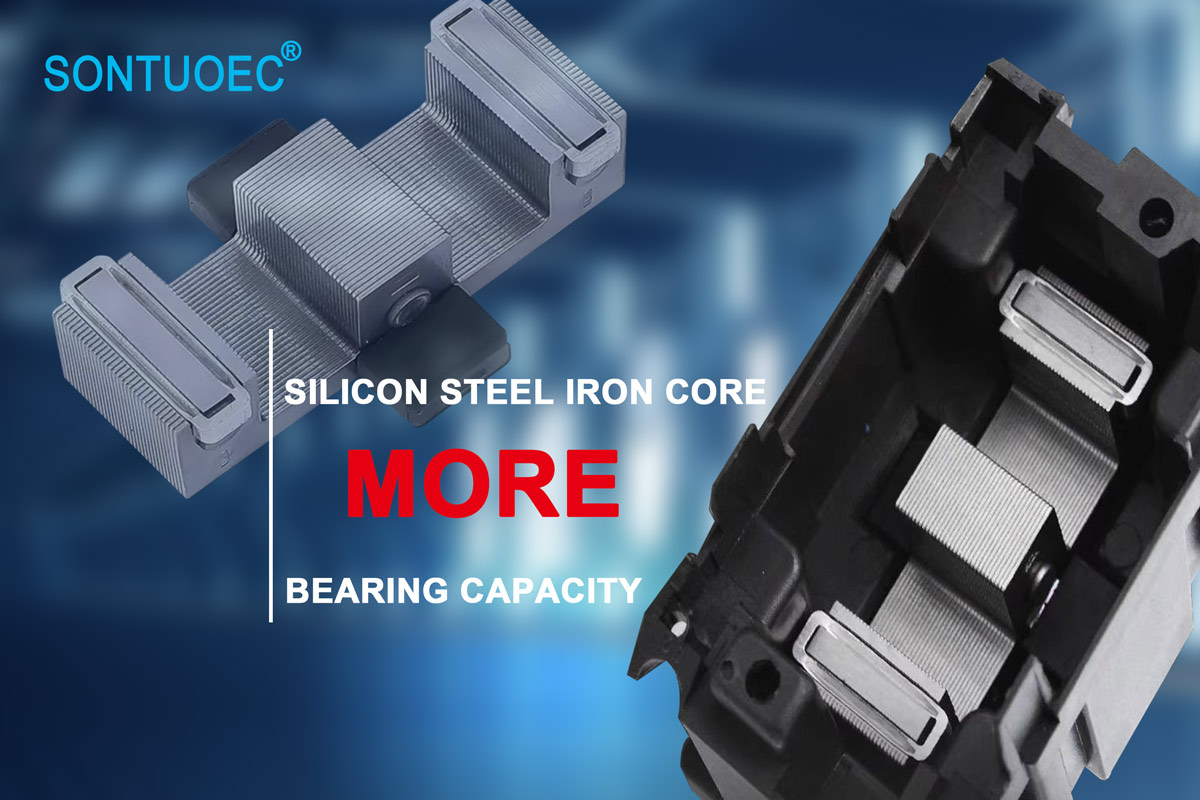

Electronics Contactor

SONTUOEC high quality electronics contactor is mainly applied in the circuits the rated voltage up to 660V, AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. It turns into an electromagnetic starter when it works together with a matching Thermal Relay, which can protect the overload circuit. The Contactor is produced according to IEC60947-4-1.

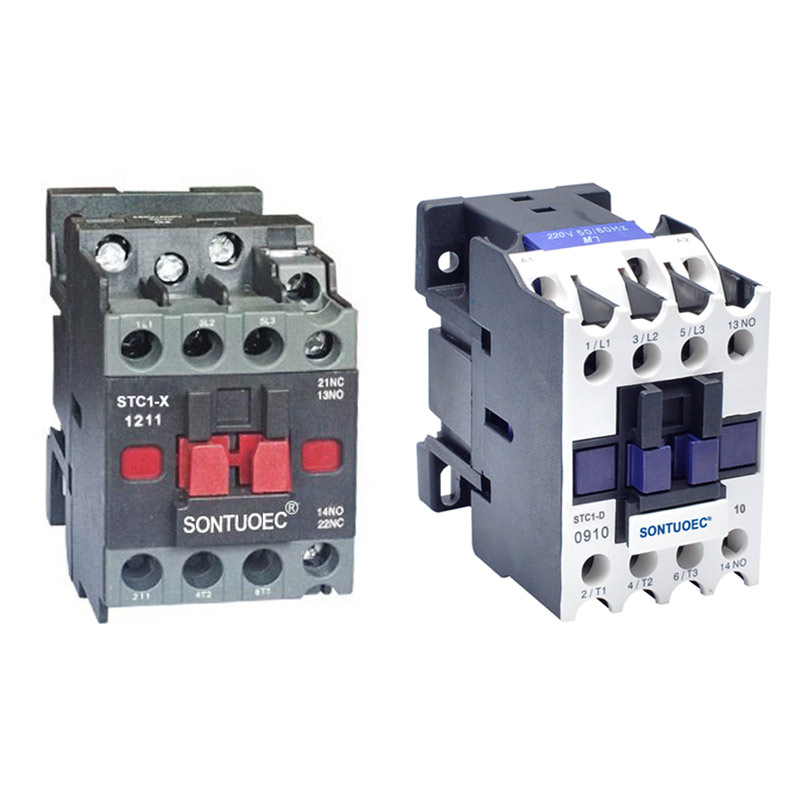

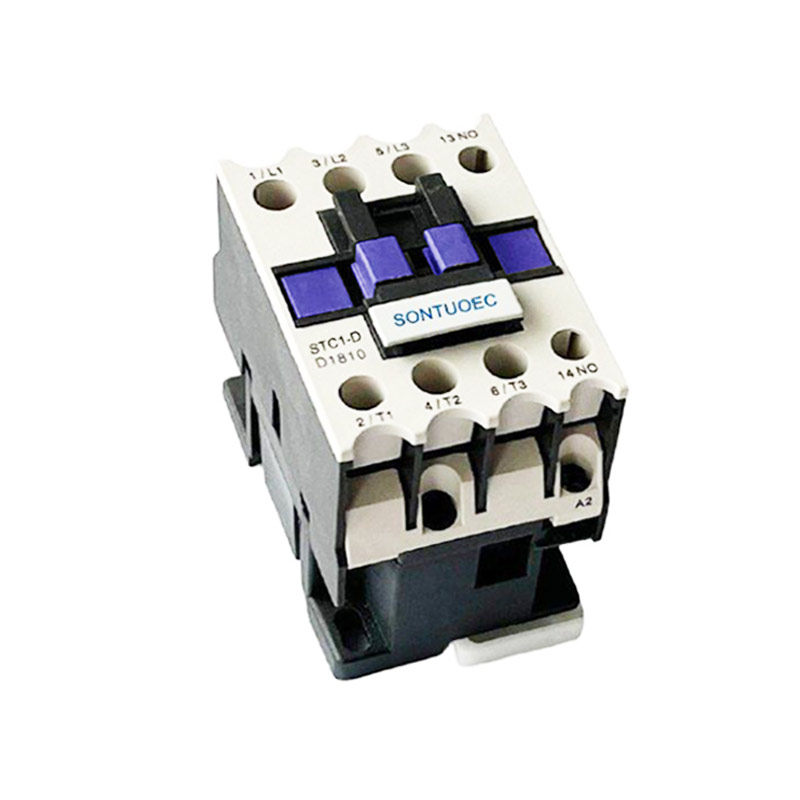

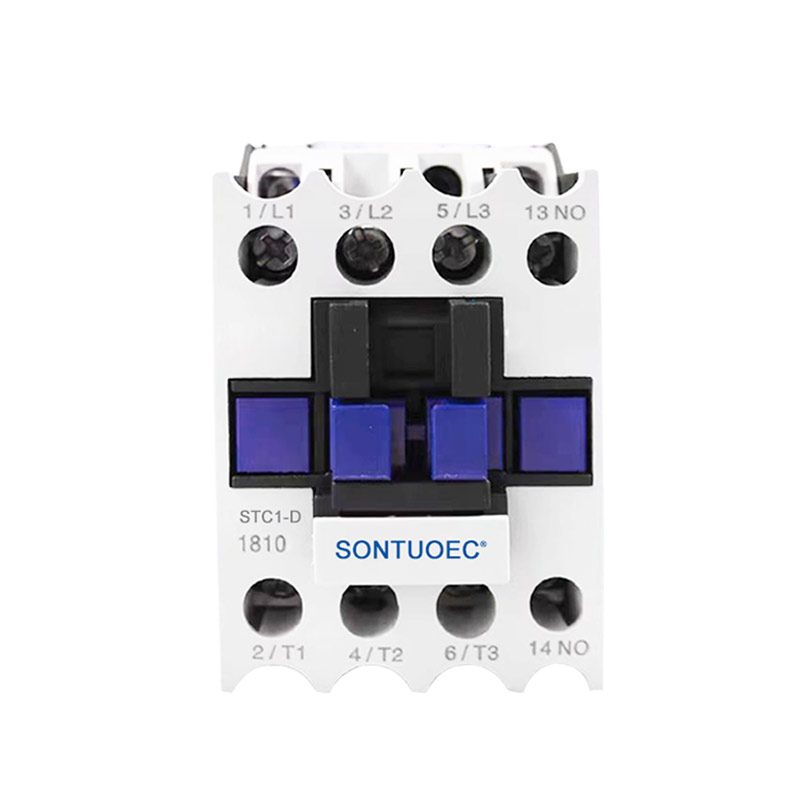

Model:STC1-D

Send Inquiry

Product Description

Type		STC1-D09	STC1-D12	STC1-D18	STC1-D25	STC1-D32	STC1-D40	STC1-D50	STC1-D65	STC1-D80	STC1-D95
Rated working current (A)	AC3	9	12	18	25	32	40	50	65	80	95
Rated working current (A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Standard power ratingsof 3-phase motors 50/60Hz in category AC-3	220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated heat current (A)		20	20	32	40	50	60	80	80	125	125
Electrical life	AC3 (x104)	100	100	100	100	80	80	60	60	60	60
Electrical life	AC4 (x104)	20	20	20	20	20	15	15	15	10	10
Mechanical life (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Number of the contacts	3P+NO					3P+NC+NO

Product Features

HIGH PERFORMANCE: Electronics contactors are designed to be the smallest, lightest, and lowest cost sealed contactors in the industry, with current ratings up to 500A (at 85°C) and an interrupting capacity of 2000A (at 320VDC).

Energy efficient: Built-in coil energy saver operates at only 1.7W holding power (at 12VDC) and can limit reverse electromotive force (EMF) to 0V.

Safety: The product is hermetically sealed for intrinsic safety and can operate in explosive or harsh environments without oxidization or contamination of the coil or contacts, including long periods of non-operation.

Versatility: Optional auxiliary contacts are provided for easy monitoring of the position of the power contacts. Also features flexible coil/power connections.

Application Scenarios

Electronics' contactors are used in a wide variety of applications, including but not limited to:

Battery systems: particularly suitable for European Community (EC) applications where CE marking is required.

Circuit protection and switching: such as switching and backup of relays (Type III), as well as DC voltage power control, circuit protection, and safety in the AIAG QS9000 design.

Other industrial applications: also for automotive, aerospace, communication networks, consumer electronics, medical and power.
