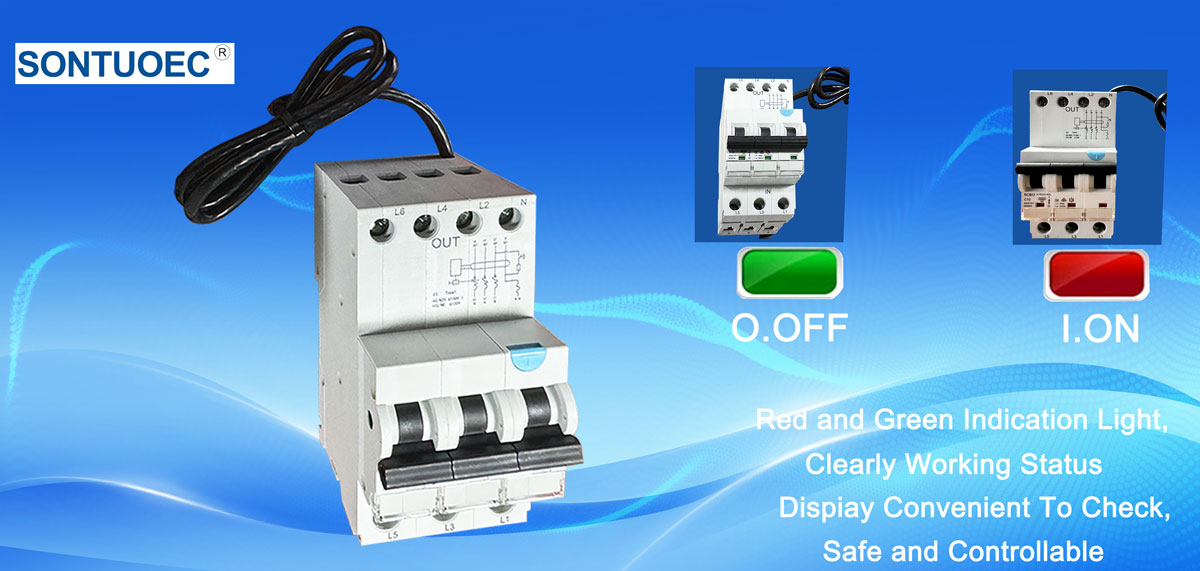

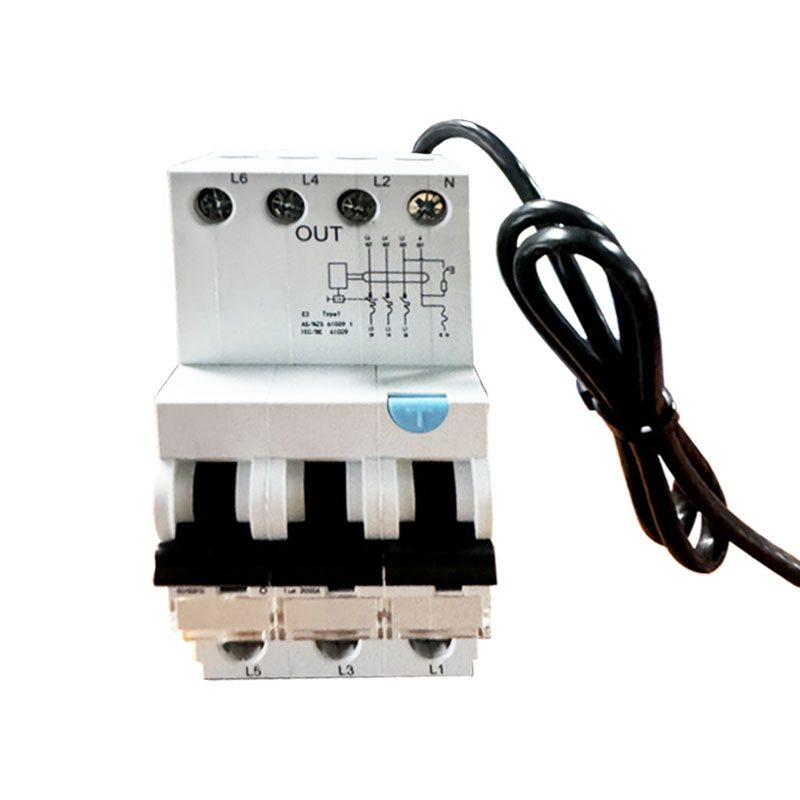

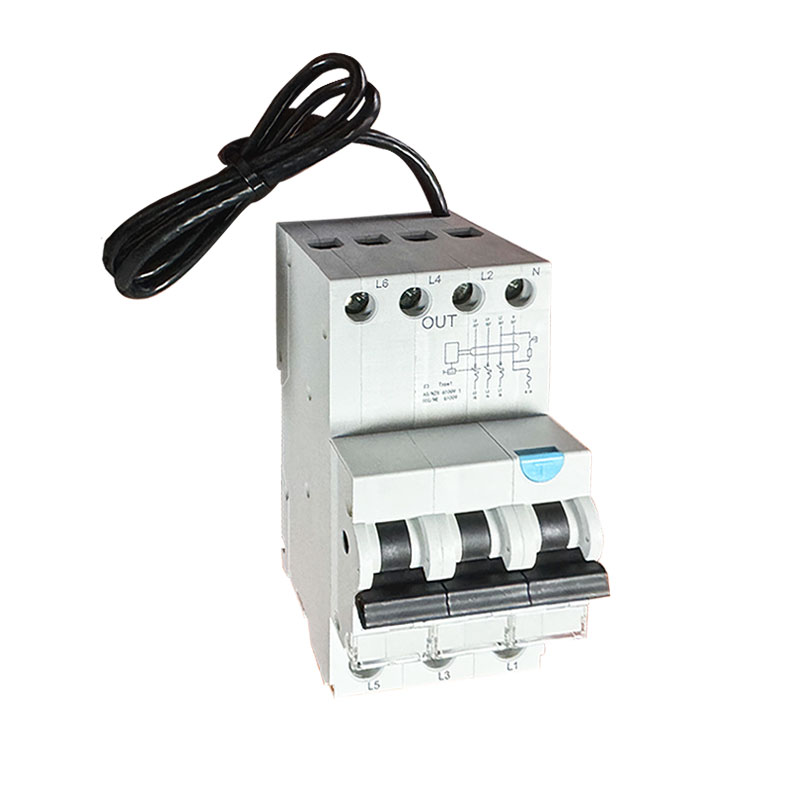

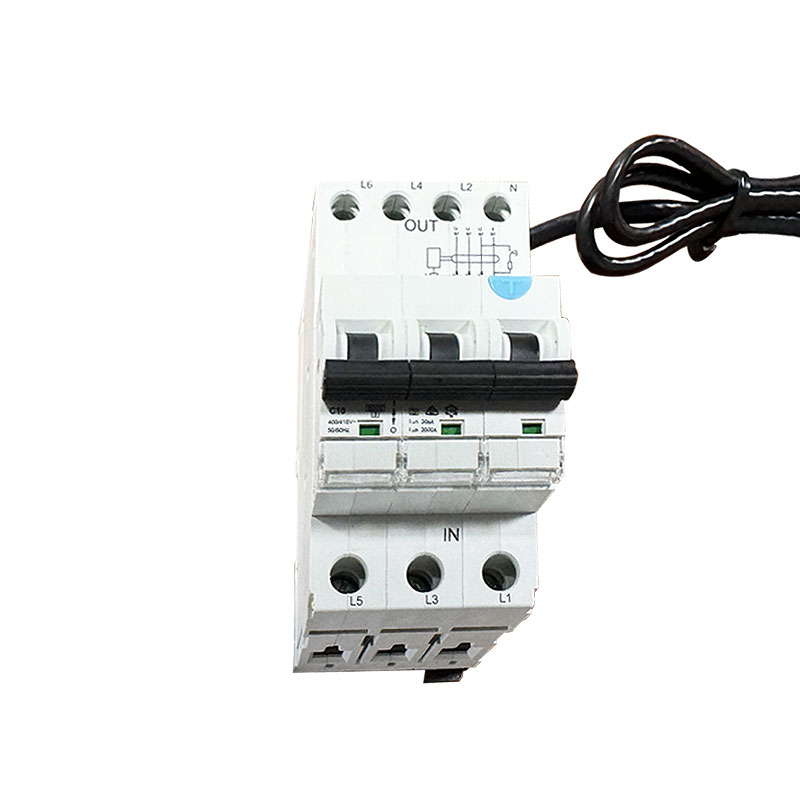

6ka 3p+N Leakage Circuit Breaker a (AC) Type RCBO with Cable

SONTUOEC is one of the Chinese suppliers/manufacturers specializing in the production of various small electrical appliances 6ka 3P+N Leakage Circuit Breaker a (AC) Type RCBO with Cable is mainly used in AC 50Hz(60Hz), rated voltage 110/220V, 120/240V, rated current 6A to 40A low voltage terminal distribution system. RCBO STRO3-40L is equal with MCB+RCD function; It is used for electric shock protection and human indirect contact protection, electric equipment protection when human body touching electricity or electric network leak current exceeds stipulated value, and over load and short circuit protection.

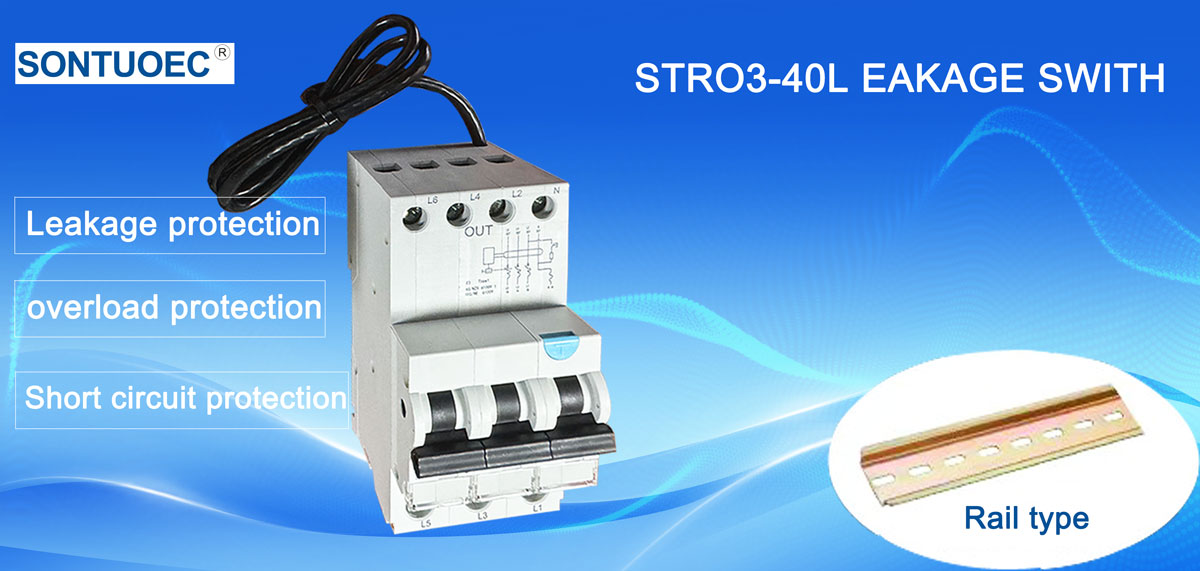

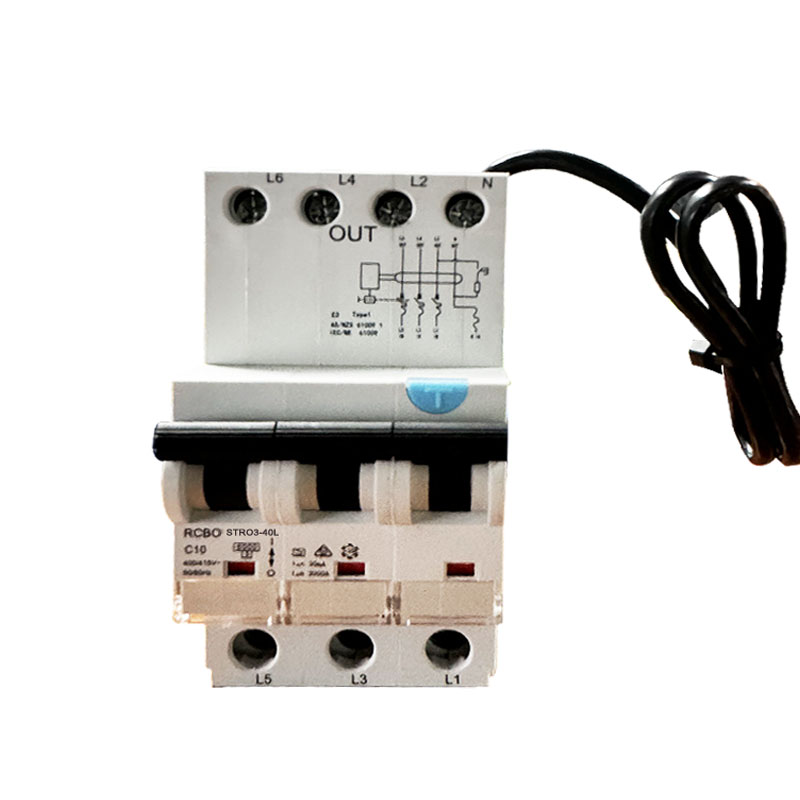

Model:STRO3-40L

Send Inquiry

Product Description

Technical data:

Sandard

IEC/EN61009-1

Electrical features

Type(wave form of the earth leakage sensed)

Electro-magnetic type

Rated current In

A,AC

Poles

(1P+N)

Rated voltage

110/220,120V

Rated Current :

6,10,16,20,25,32,40A

Rated sensitivity I△n

0.01,0.03,0.1

Insulation voltage Ui

500

Rated residual making and

500

breaking capacity I△m

Short-circuit current I△c

6000

SCPD fuse

6000, 10000A

BitmapBitmapBitmapBitmap

Rated frequency

50/60

Pollution degree

Mechanical features

Electrical life

4000

Mechanical life

4000

Protection degree

IP20

Ambient temperature

ºC

-5~+40(Special application please refer to temperature compensation correction)

(with daily average ≤35ºC)

Storage temperature

ºC

-25~+70

Installation

Terminal connection type

Cable/U-type busbar/pin-type busbar

Terminal size top/bottom for cable

mm²

AWG

18-5

Terminal size top/bottom for busbar

mm²

AWG

18-5

Tightening torque

N^*m

In-lbs

Mounting

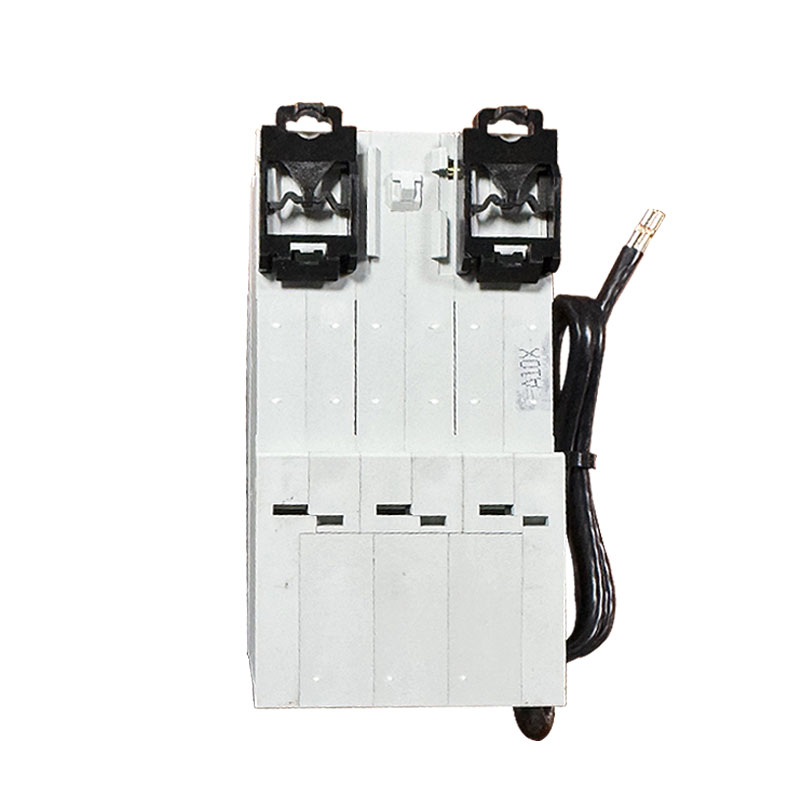

On DIN rail EN 60715(35mm)by means of fast clip device

Connection

From top and bottom

Main Features and Functions

Residual current protection: When the residual current (i.e., leakage current) in the circuit reaches a preset value, the RCBO is able to act quickly to cut off the circuit, thus preventing electrocution accidents and electrical fires.

Overload protection: When the current in the circuit exceeds the rated current of the RCBO, it is able to cut off the circuit within a specified period of time, thus preventing damage to the circuit or fire accidents caused by overload.

Short-circuit protection: When a short-circuit occurs in the circuit, RCBO can act quickly to cut off the short-circuit current and protect the safety of the circuit and equipment.

B-type release characteristics: As mentioned above, B-type RCBOs are particularly suitable for loads that are not sensitive to instantaneous overloads, but sensitive to prolonged overloads.

Application Scenarios

6ka 3p+N Leakage Circuit Breaker a (AC) Type RCBO with Cable are widely used in places where a variety of circuit protection functions are required, especially those circuits that use loads with special requirements for overload characteristics. Example:

Residential and commercial buildings: used to protect lighting circuits, socket circuits, etc. to ensure personal safety and equipment safety.

Industrial places: for protecting various industrial equipment, such as resistance heaters, incandescent lamps, etc., to prevent equipment damage or fire accidents caused by overload or leakage.

Agriculture and horticulture: used to protect agricultural equipment such as greenhouses, irrigation systems, etc., to ensure the normal operation of the equipment and the safety of personnel.

Precautions and Maintenance

Correct selection of rated current: When selecting the 6ka 3p+N Leakage Circuit Breaker a (AC) Type RCBO with Cable , the appropriate rated current value should be selected based on the rated current and characteristics of the load.

Periodic Inspection and Maintenance: Periodically inspect and maintain the RCBO to ensure that it operates reliably, is securely wired, and is free from damage or corrosion.

Avoid false operation: When installing and using, care should be taken to avoid installing the RCBO in an environment susceptible to interference in order to prevent its false operation.

Timely handling of faults: When RCBO fails or operates, the cause should be identified and troubleshooting should be done in time to ensure the safe operation of the circuit.
