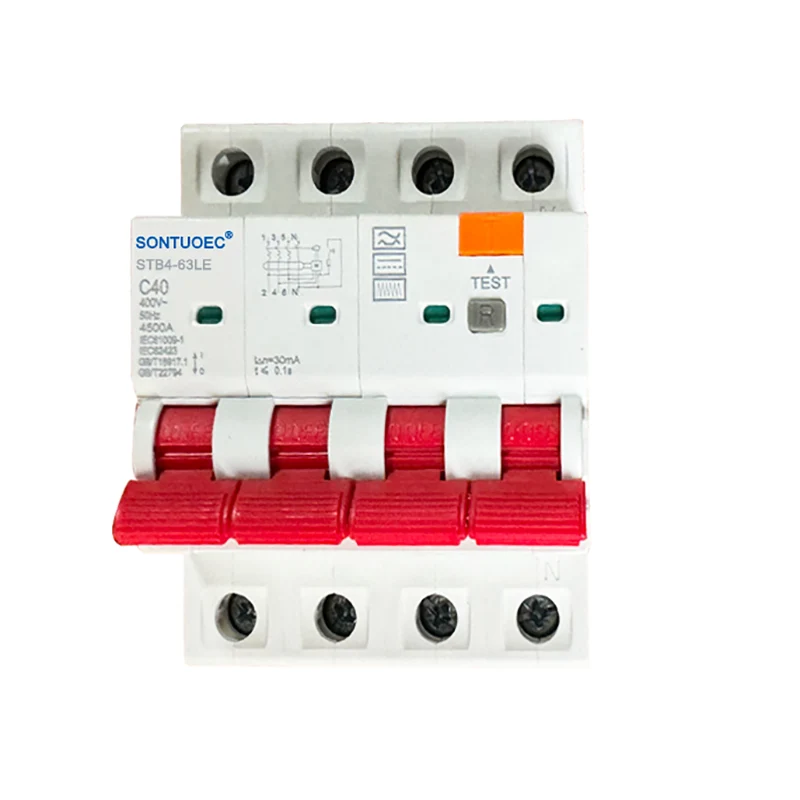

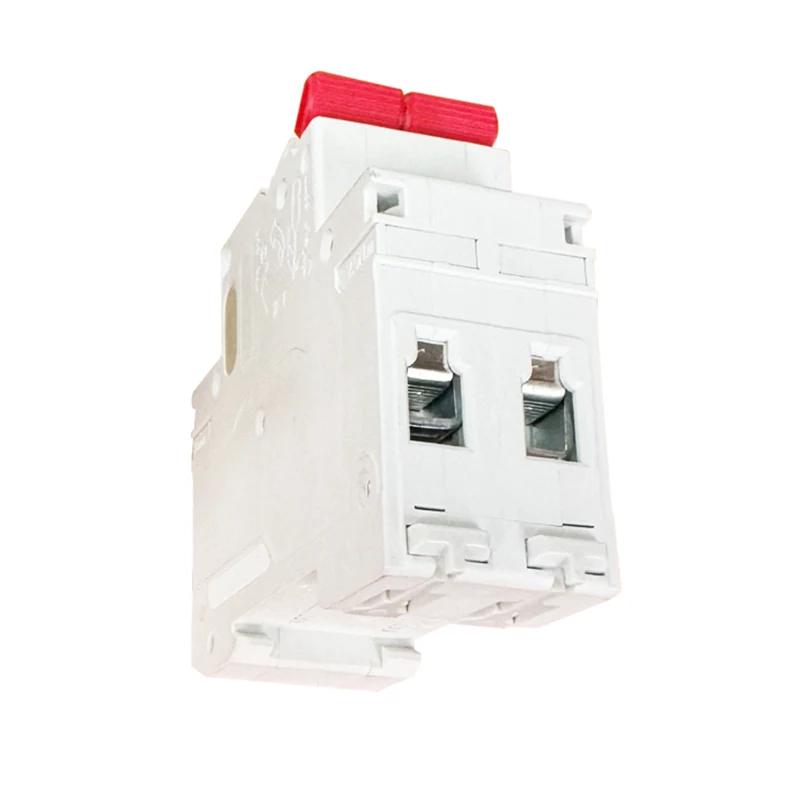

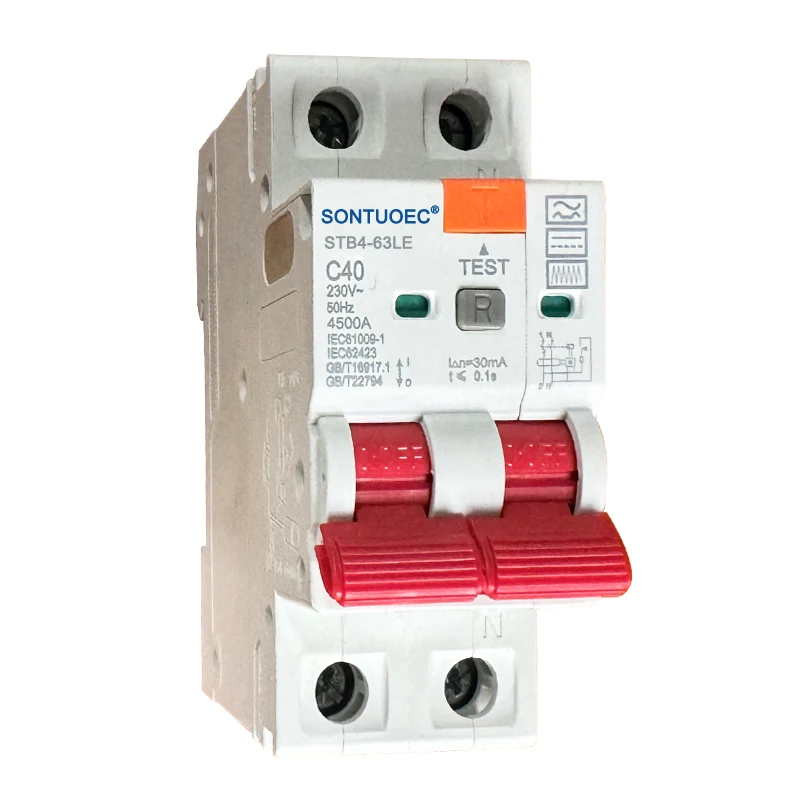

2P RCBO B Type

2P RCBO B Type is a two residual current circuit breaker with overcurrent protection (Residual Current Circuit Breaker with Overload Protection), it can control the on-off of the fire line 2P(L1)and the zero line (N);and 4P(L1, L2, L3) and the zero line (N) at the same time. A Type” usually refers to a specific type or specification of the circuit breaker, which may involve the operating characteristics, rated current, rated voltage and other parameters of the circuit breaker.

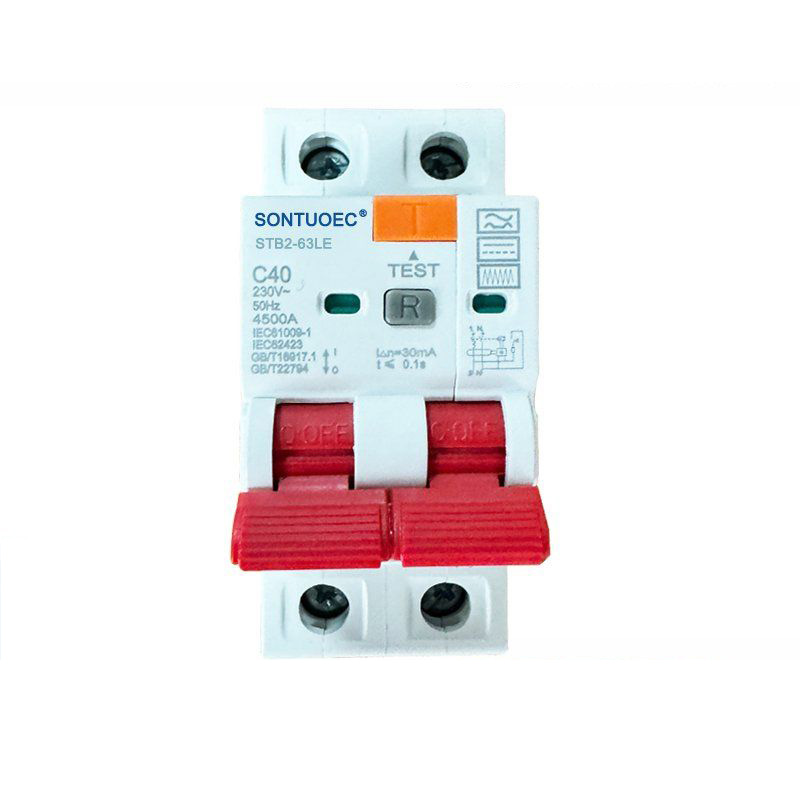

Model:STB2-63LE

Send Inquiry

Product Description

	Standard	Unit	IEC/EN 61009-1 and IEC/EN62423
Electrical features	Mode		Electronic type
	Type(wave form of the earth leakage sensed)		B
	Thermo-magnetic release characteristic		B,C,D
	Rated current ln	A	6,10,16,20,25,32,40; 63,80A
	Poles	P	1P+N, 3P+N
	Rated voltage Ue	V	AC 230, 400
	Rated sensitivity I△n	A	0.01, 0.03, 0.1, 0.3, 0.5
	Rated residual making and breaking capacity l△m	A	500
	Rated short-circuit capacity Icn	A	6000
	Break time under I△n	S	≤0.1
	Rated frequency	Hz	50/60
	Rated impulsewithstand voltage(1.2/50)Uimp	V	4000
	Dielectric test voltage at ind.Freq for 1min	kV	2
	Insulation voltage Ui	V	250
	Pollution degree		2
Mechanical features	Electrical life		4000
	Mechanical life		10000
	Fault current Indicator		YES
	Protection degree		IP20
	Ambient temperature (with daily average≤35ºC)	ºC	-5~+40(Special application please refer to temperature compensation correction)
	Storage temperature	ºC	-25~+70
Installation	Terminal connection type		Cable/Pin-type busbar/U-type busbar
	Terminal size top/bottom for cable	mm2	25
	Terminal size top/bottom for cable	AWG	18-5
	Terminal size top/bottom for busbar	mm2	25
	Terminal size top/bottom for busbar	AWG	18-3
	Mounting		On DIN rail EN 60715(35mm)by means of fast clip device
	Connection		From top

Main features and parameters

Action Characteristics: 2P 4P RCBO B Type has a residual current protection function, when the residual current (i.e. leakage current) in the circuit reaches a preset value, the circuit breaker will act quickly to cut off the circuit to prevent electric shock accidents and electrical fires.

Rated Current: Depending on the specific model and specifications, the rated current range of 2P 4P RCBO B Type may vary, but usually includes a wide range of specifications such as 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A,and so on.

Rated Voltage: The 2P 4P RCBO B Type is typically rated at 240V AC for domestic and commercial electrical environments.

Rated Frequency: The rated frequency of this circuit breaker is usually 50/60Hz, which matches the frequency of power supply in most countries and regions.

Rated Short Circuit Capacity: The 2P 4P RCBO B Type has a high rated short circuit capacity, such as 6KA or 10KA, which is able to withstand large current shocks without damage in the event of a short circuit fault.

Leakage Action Current: The leakage action current of this circuit breaker is usually 30mA or less, which meets the requirements of the International Electrotechnical Commission (IEC) and relevant national standards, and can effectively protect personal safety.

RCBO is mainly used in AC 50Hz(60Hz), rated voltage 230/400V, rated current 6A to 40A low voltage terminal distribution system. RCBO is equal with MCB+RCD function; It is used for electric shock protection and human indirect contact protection, electric equipment protection when human body touching electricity or electric network leak current exceeds stipulated value,and over load and short circuit protection ; It can also be a non-frequency operator in the circuit, wildly used in the residential and commercial district. It complies with standard of IEC61009-1.

Application and Installation

Application: 2P 4P RCBO B Type is suitable for the protection of power distribution circuits that require simultaneous control of both Fire and Zero wires, such as lighting, sockets, air-conditioning and other circuits in domestic, commercial, industrial and other places.

Installation: The circuit breaker usually adopts symmetrical DIN-rail mounting or panel mounting, which is convenient for quick installation and removal in distribution box or distribution cabinet.

Wiring:2P 4P RCBO B Type is flexible in wiring and can be connected to three-phase three-wire, three-phase four-wire or single-phase circuits. When wiring, ensure that the Fire, Zero and Earth wires are properly connected to avoid the risk of electric shock and electrical fire.
