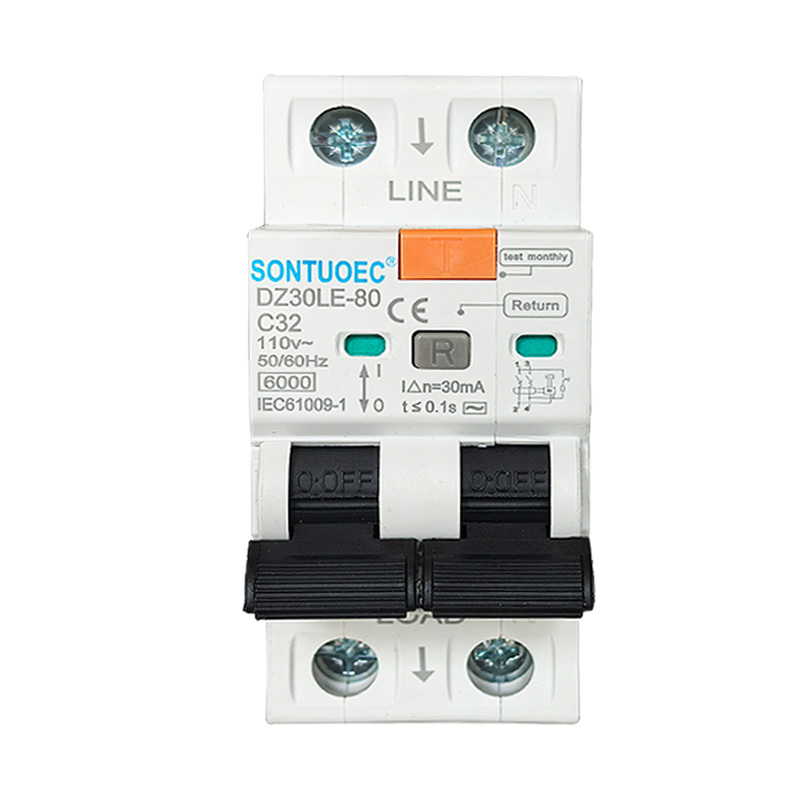

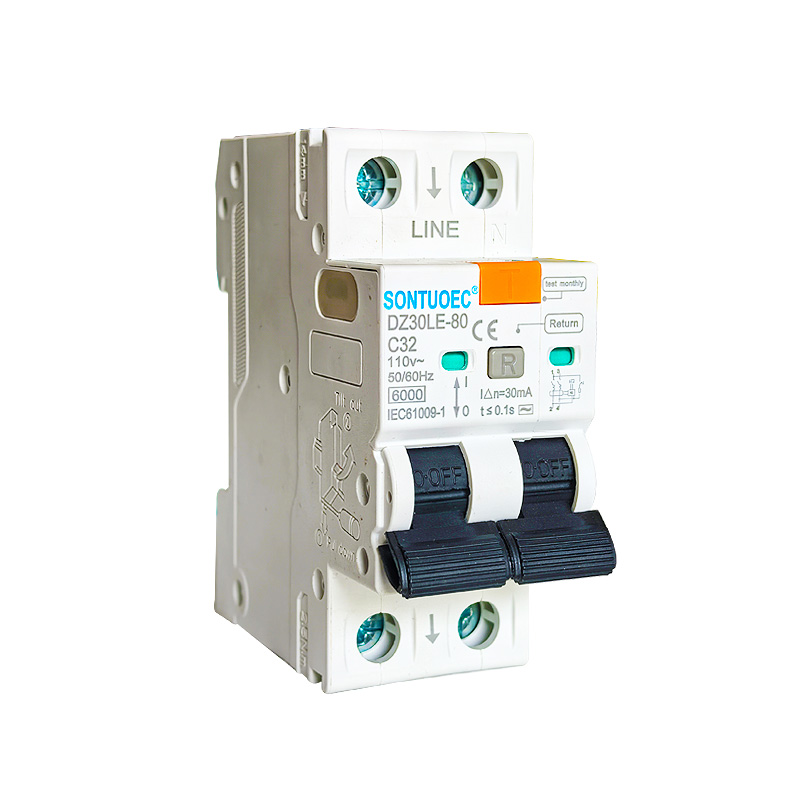

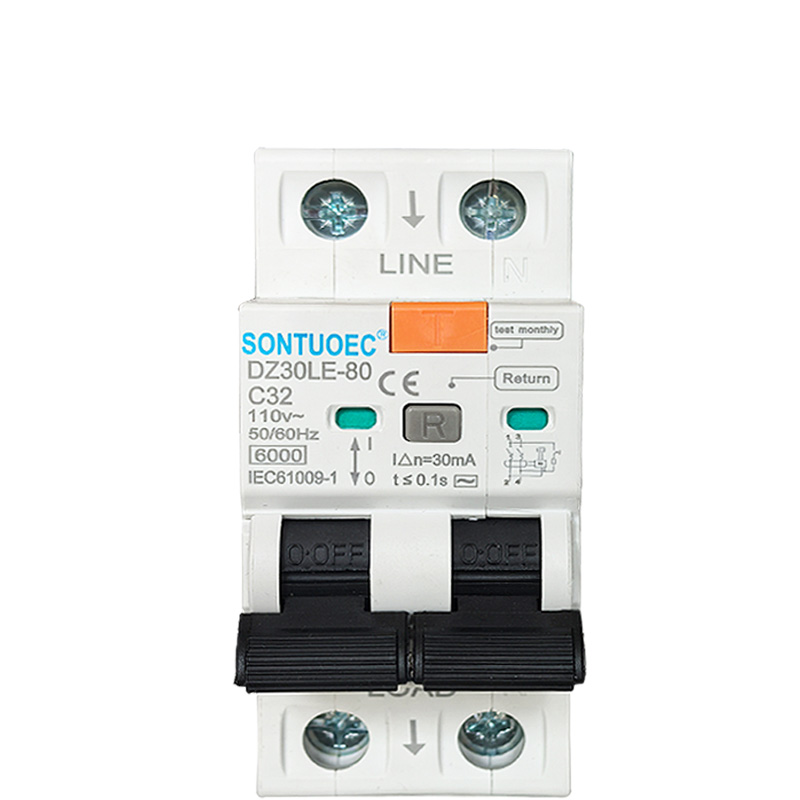

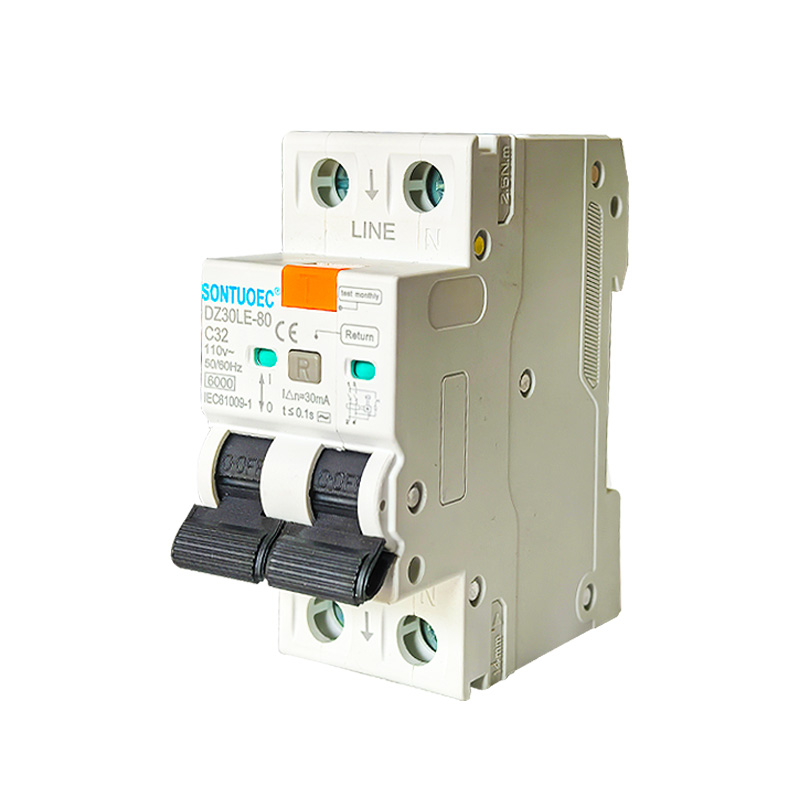

2p Leakage Current Circuit Breaker 6ka IEC61009.1standard Quality RCBO

specifications:

Sandard			IEC/EN61009-1
Electrical features	Type(wave form of the earth leakage sensed)		Electro-magnetic type, electronic type
	Rated current In	A	AC
	Poles	P	2,4
	Rated voltage	V	AC 240/415
	Rated Current :		6A,10,16,20,25,32,40A
	Rated sensitivity I△n	A	0.01,0.03,0.1,0.3,0.5
	Insulation voltage Ui	V	500
	Rated residual making and breaking capacity I△m	A	630
	Short-circuit current I△c	A	6000
	SCPD fuse	A	6000
	Rated frequency	Hz	50/60
	Pollution degree		2
Mechanical features	Electrical life	t	4000
	Mechanical life	t	10000
	Protection degree		IP20
	Ambient temperature (with daily average ≤35ºC)	ºC	-25~+40
	Storage temperature	ºC	-25~+70
Installation	Terminal connection type		Cable/U-type busbar/pin-type busbar
	Terminal size top/bottom for cable	mm2	25
		AWG	18-3
	Terminal size top/bottom for busbar	mm2	25
		AWG	18-3
	Tightening torque	N*m	2.5
		In-lbs	22
	Mounting		On DIN rail EN 60715(35mm)by means of fast clip device
	Connection		From top and bottom

2p Leakage Current Circuit Breaker 6ka IEC61009.1standard Quality RCBO There are several main functions as follows

Overload Protection: When the current in the circuit exceeds the rated value of the DZ30LE-80 RCBO, it will automatically cut off the circuit within a set period of time to prevent the circuit and equipment from overheating, thus avoiding fire and damage.

Short circuit protection: When a short circuit occurs in a circuit, the DZ30LE-80 RCBO will quickly cut off the circuit to prevent the short circuit current from causing serious damage to the circuit and equipment.

Leakage Protection: The DZ30LE-80 is capable of detecting residual current (i.e., leakage current) in a circuit. When the residual current exceeds the set threshold, the DZ30LE-80 RCBO will cut off the circuit in a very short period of time to prevent electrocution accidents and electrical fires.

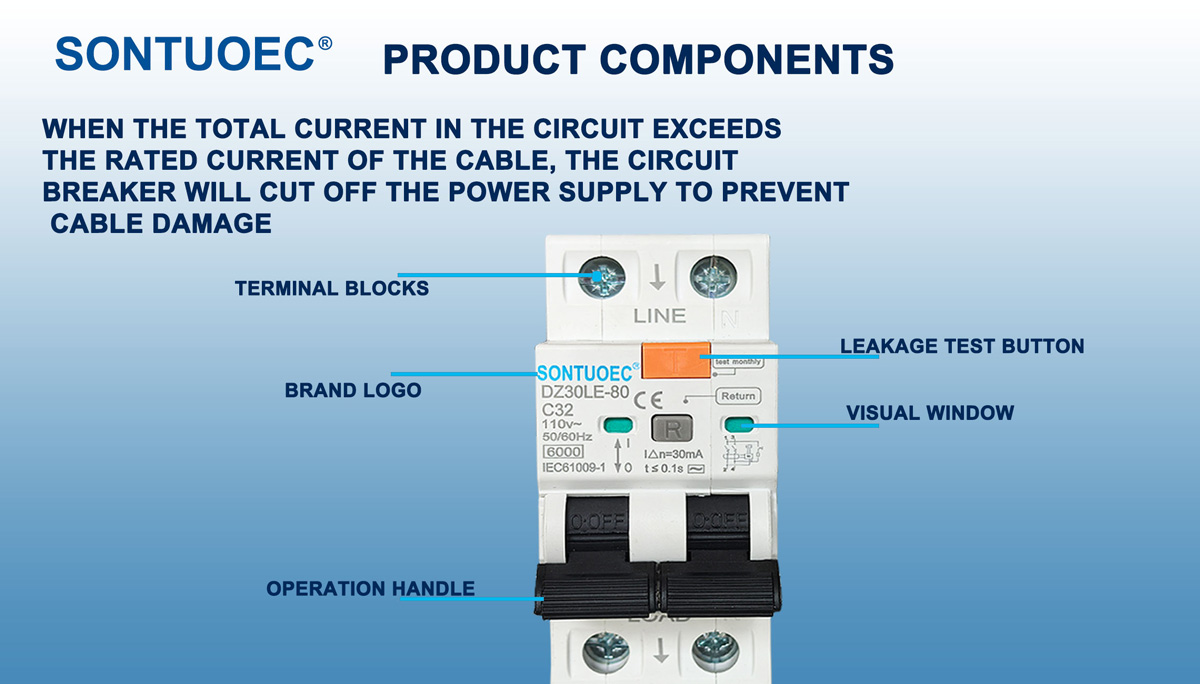

Product Over View:

1. Provide protection against earth fault/leakage current and function of isolation

2. High short-circuit current withstand capacity

3. Applicable to terminal and pin/fork type busbar connection

4. Equipped with finger protected connection terminals

5. Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity

6. Independent of power supply and line voltage, and free from external interference, voltage fluctuation.

FAQ

Q 1. what's the payment term?

A. We accept TT,30% deposit and 70% balance agaisnt copy of BL

Q 2. how's the delivery time ?

A. usually it will take about 25 days for production

Q 3. tell me the standard of package?

A. Normally are cartons, but also we can pack it according to your requirement.

Q 4.Would you accept to use our logo ?

A.If you have good quantity,it absolute no problem to do OEM.

Q5. Can i take some samples?

A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.

Q6. Are you original Factory?

A: Yes, we have our own factory .

Q7. How can you make sure the quality of the products?

A: We will accord to international quality standards to inspect every item before leaving our factory.
