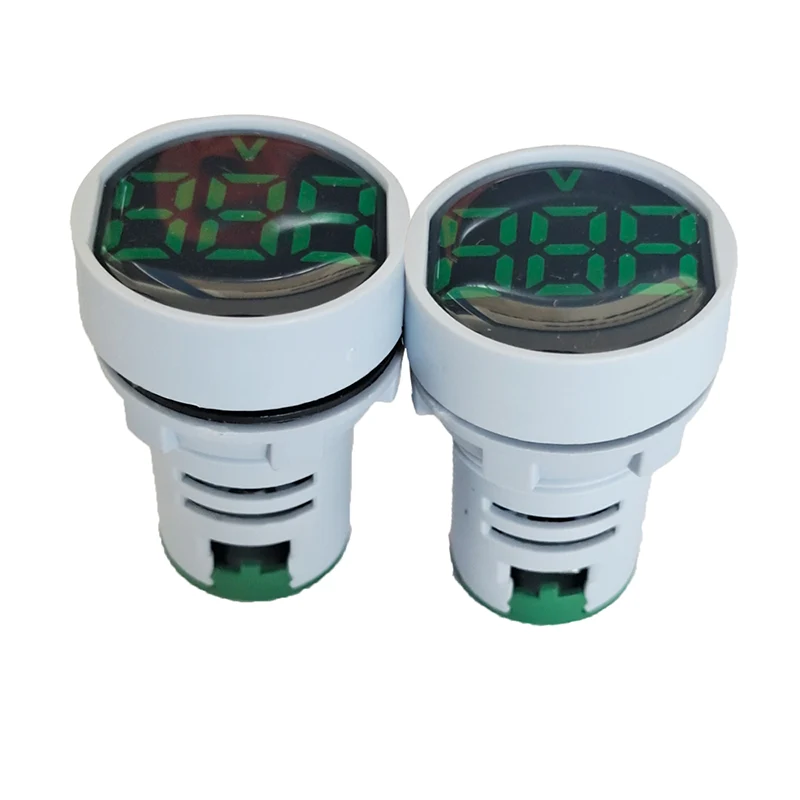

22mm Mini Voltmeter /Ammeter /Hertz Meter LED Digital Indicator Light

Principle of operation

The operating principle of 22mm Mini Voltmeter /Ammeter /Hertz Meter LED Digital Indicator Light is relatively simple. It contains one or more contacts that close when the pushbutton is pressed to energize the circuit; when the pushbutton is released, the contacts immediately open and the circuit is broken. This type of switch usually has a low operating force and a high speed of action, enabling it to respond quickly to operating commands.

AD16-22DS series led lamp is applicable to circuit with rated voltage 6V to 400V and frequency 50/60Hz for visual indication and signaling. The Color is: Red Yellow Blue Green,White .The indicator lamps signal any kind of electric installation including public, tertiary and industrial.

Product name: LED indicator light

Product model: AD16-22ds

open hole size: 22mm

button color: red/green/yellow/blue/white

light brightness: >100cd/M2

power frequency withstand voltage: 2.5kv 1min

insulation resistance: >2

working life: >30000h

optional voltage: AC: 220V/400V

Ac/dc: 6v-400v

Types and Features

There are several types of momentary pushbutton switches, each with its own unique characteristics and applicable scenarios:

Normally open type (NO, Normally Open): when the button is not pressed, the contacts are in the disconnected state; when the button is pressed, the contacts are closed and the circuit is connected.

Normally Closed (NC, Normally Closed): When the button is not pressed, the contacts are closed; when the button is pressed, the contacts are closed and the circuit is broken.

Conversion type (Changeover): This type of switch has both normally open and normally closed contacts, which can be selected for use as required.

In addition, momentary pushbutton switches have the following characteristics:

Fast Response: Due to the fast action speed of the contacts, it is able to respond quickly to the operating instructions.

High reliability: Made of high-quality materials and advanced technology, momentary push button switch has a long service life and stable performance.

Easy to operate: the button is easy and convenient to operate, just a light press can realize the switching of the circuit.
